RN60L-MRA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

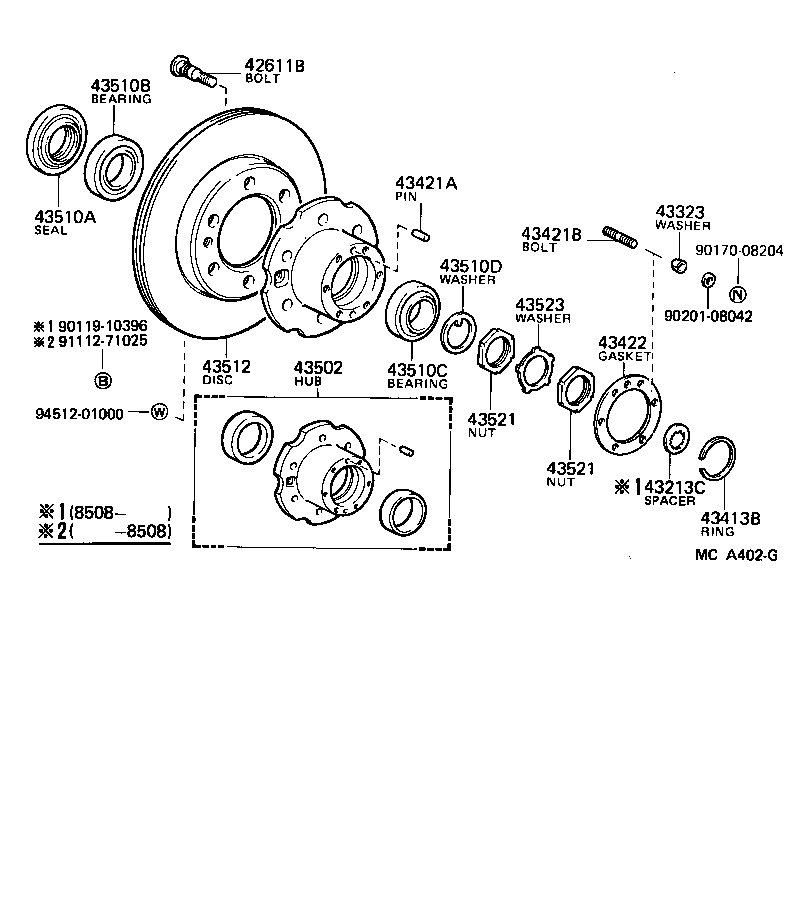

ILLUST NO. 1 OF 2(8308- )LN6#,RN6#,VZN6#

Click highlighted areas on diagram

diagram 42611B 43213C 43323 43413B 43421A 43421B 43422 43502 43510A 43510B 43510C 43510D 43512 43521 43521 43523 9011910396 9017008204 9020108042 9111271025 9451201000
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02053

LN65,RN6#

 12
90942-02044

LN65,RN6#

 12
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

LN65,RN6#,VZN6#

 12
43413B - RING, DRIVE SHAFT SNAP
90520-31001

LN65,RN6#

 2
43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057

LN6#,RN6#,VZN6#

 4
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-08325

LN6#,RN6#,VZN6#

 12
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60010

LN6#,RN6#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-60020

LN65,RN6#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-62001

LN65,RN6#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-49084

LN6#,RN6#,VZN6#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

LN6#,RN6#,VZN6#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

LN6#,RN6#,VZN6#

 2
43512 - DISC, FRONT
43512-35070

LN65,RN6#

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LN6#,RN6#,VZN6#

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LN6#,RN6#,VZN6#

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

LN6#,RN6#,VZN6#

 2
Common parts
90119-10396
90170-08204
90201-08042
91112-71025
94512-01000

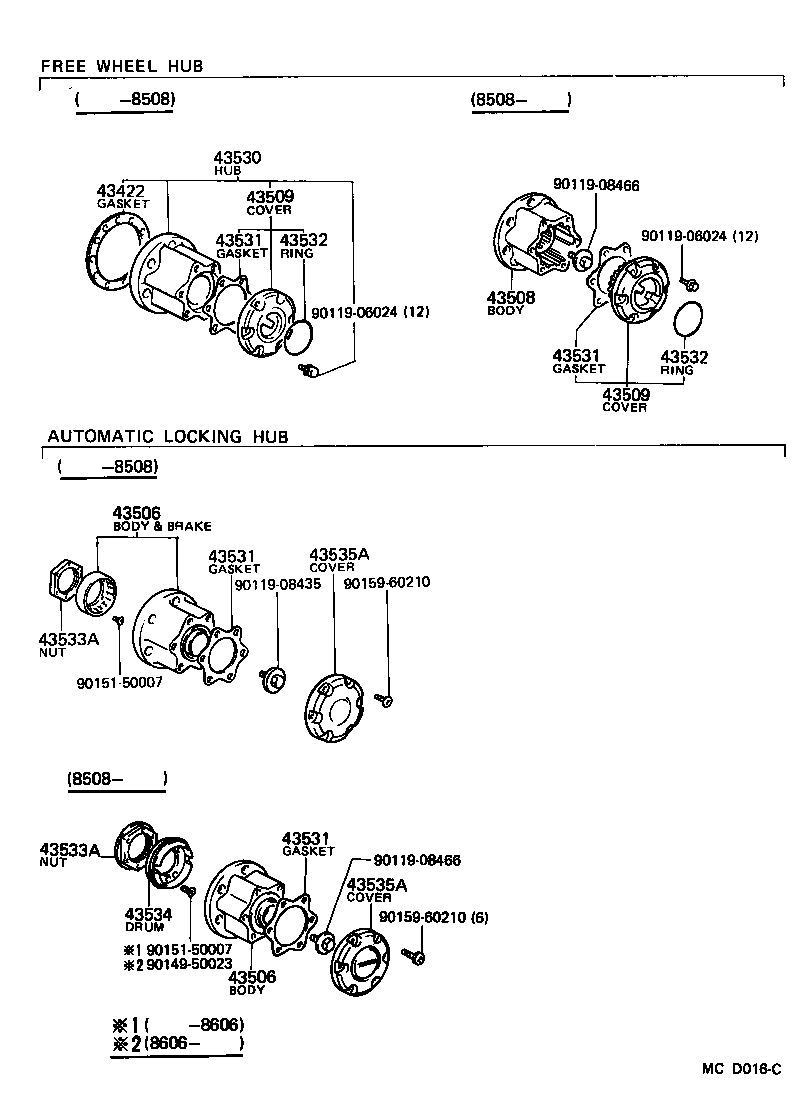

ILLUST NO. 2 OF 2(8308- )LN66,RN6#,VZN6#

Click highlighted areas on diagram

diagram 43422 43506 43506 43508 43509 43509 43530 43531 43531 43531 43531 43532 43532 43533A 43533A 43534 43535A 43535A 9011906024 9011906024 9011908435 9011908466 9011908466 9014950023 9015150007 9015150007 9015960210 9015960210
Part # Description Qty Price
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60010

LN6#,RN6#

 2
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-35012

LN65,RN6#

 2
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-35012

LN65,RN6#

 2
43530 - HUB ASSY, FREE WHEEL
43530-39017

LN65,RN6#

 2
43531 - GASKET, FREE WHEEL HUB
43531-60010

LN6#,RN6#,VZN6#

 1
43531 - GASKET, FREE WHEEL HUB
43531-60010

LN6#,RN6#,VZN6#

 1
43531 - GASKET, FREE WHEEL HUB
43531-60010

LN6#,RN6#,VZN6#

 1
43531 - GASKET, FREE WHEEL HUB
43531-60010

LN6#,RN6#,VZN6#

 1
43532 - RING, FREE WHEEL HUB
43532-60010

LN6#,RN6#,VZN6#

 1
43532 - RING, FREE WHEEL HUB
43532-60010

LN6#,RN6#,VZN6#

 1
Common parts
90119-06024
90119-08435
90119-08466
90149-50023
90151-50007
90159-60210
