RN55L-SRHEK (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)RN5#,7#..ATM..CBR,EFI

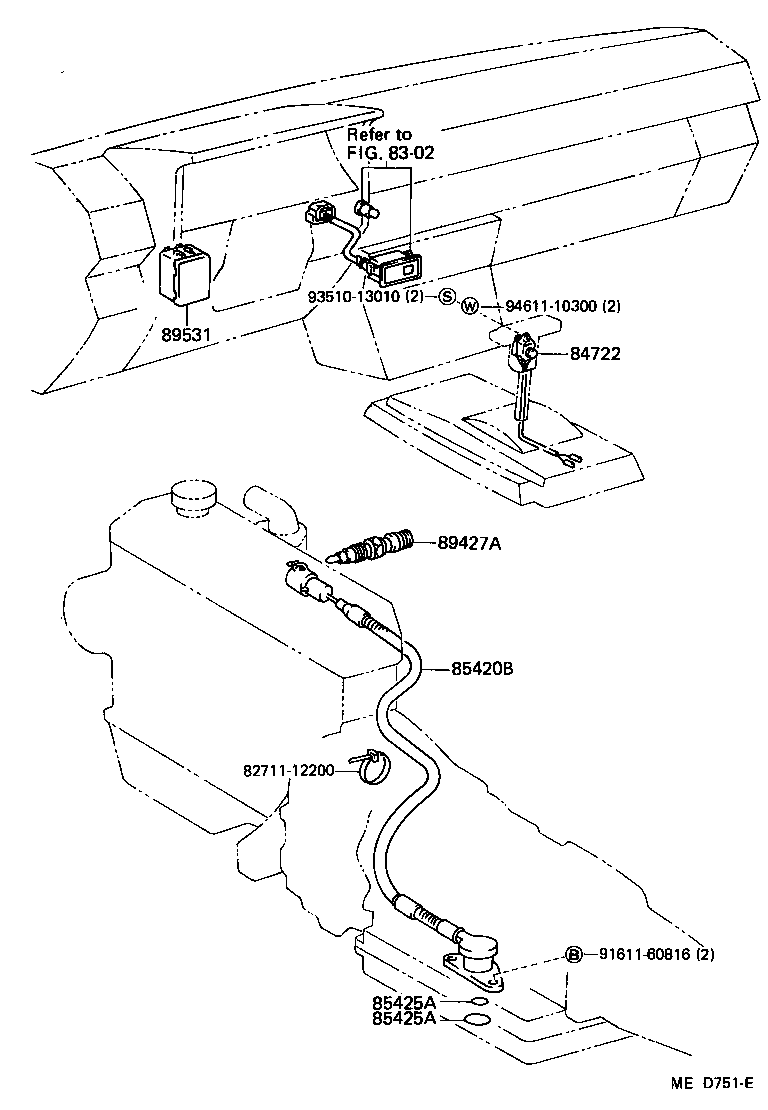

Click highlighted areas on diagram

diagram 8271112200 8302 84722 85420B 85425A 85425A 89427A 89531 9161160816 9351013010 9461110300
Part # Description Qty Price
85420B - SOLENOID ASSY, TRANSMISSION
85420-20050

RN5#,7#..ATM..(CBR,EFI)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

RN5#,7#..ATM..(CBR,EFI)

ID=23

 1
90301-11001

RN5#,7#..ATM..(CBR,EFI)

ID=11

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

RN5#,7#..ATM..(CBR,EFI)

ID=23

 1
90301-11001

RN5#,7#..ATM..(CBR,EFI)

ID=11

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-28010

RN5#,7#..ATM..(CBR,EFI)

 1
Common parts
82711-12200
91611-60816
93510-13010
94611-10300
Linked diagrams
8302
