RN55L-SRHEK (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)LN5#,RN5#,7#

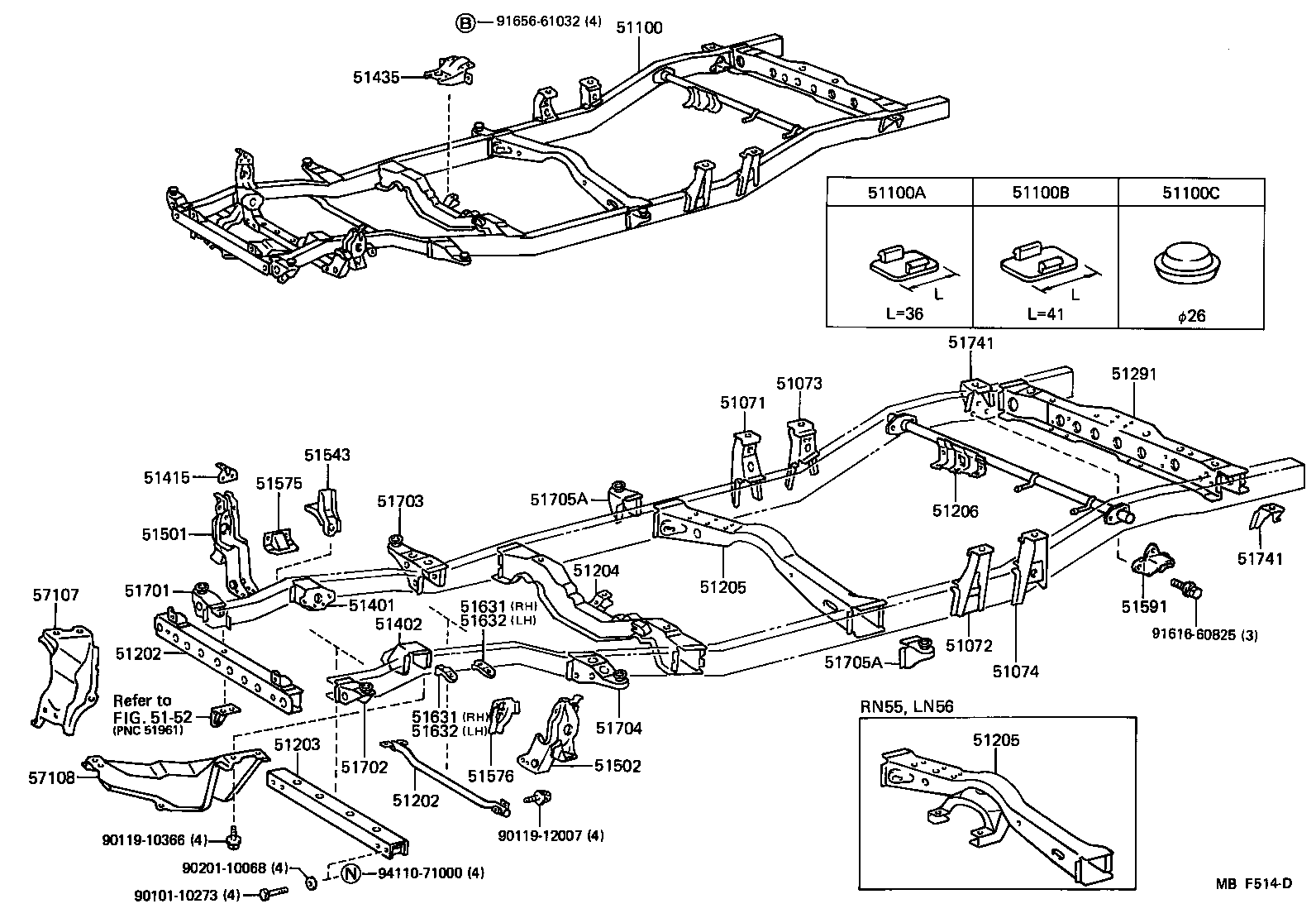

Click highlighted areas on diagram

diagram 51071 51072 51073 51074 51100 51100A 51100B 51100C 51202 51202 51203 51204 51205 51205 51206 51291 51401 51402 51415 51435 51501 51502 5152 51543 51575 51576 51591 51631 51631 51632 51632 51701 51702 51703 51704 51705A 51705A 51741 51741 57107 57108 9010110273 9011910366 9011912007 9020110068 9161660825 9165661032 9411071000
Part # Description Qty Price
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-35020

LN56,65,RN55,65,66,75,VZN6#..RCB

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-35020

LN56,65,RN55,65,66,75,VZN6#..RCB

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-35010

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-35010

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
51100 - FRAME ASSY
51002-35102

RN55..10T,HVY

 1
51100A - PLUG, HOLE(FOR FRAME)
90950-01394

LN5#,65,RN5#,6#

 4
90950-01394

RN5#,7#

 4
51100B - PLUG, HOLE(FOR FRAME)
90950-01395

RN5#,7#

 2
90950-01395

LN5#,65,RN5#,6#

 2
51100C - PLUG, HOLE(FOR FRAME)
90950-01420

LN5#,RN5#,7#

 2
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-35100

LN5#,RN5#

FR

 1
51202-35180

LN5#,RN5#

RR

 1
51201-35130

RN55..10T,HVY

FR

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-35100

LN5#,RN5#

FR

 1
51202-35180

LN5#,RN5#

RR

 1
51201-35130

RN55..10T,HVY

FR

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35160

LN5#,RN5#,7#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-35250

LN5#,RN5#,7#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35230

LN56,RN55

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35230

LN56,RN55

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35120

LN5#,RN5#,7#

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35092

RN55,75..10T,HVY

 1
51291-35080

LN5#,65,RN5#,6#..T1

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35170

LN5#,RN5#,7#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35170

LN5#,RN5#,7#

 1
51435 - BRACKET, ENGINE REAR MOUNTING
51431-35080

RN55..CND..EFI

 1
51431-35050

RN5#,7#..ATM

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35020

LN5#,RN5#,7#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35020

LN5#,RN5#,7#

 1
51543 - BRACKET, SHIMMY DAMPER
51543-35010

LN5#,RN5#,7#

 1
51575 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1
51573-35010

LN5#,RN5#,7#

 2
51576 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2
51575-35040

LN5#,RN5#,7#

 2
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51631-35030

LN5#,RN5#,7#

RR

 1
51632-35030

LN5#,RN5#,7#

FR

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51631-35030

LN5#,RN5#,7#

RR

 1
51632-35030

LN5#,RN5#,7#

FR

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-35030

LN5#,RN5#,7#

FR

 1
51632-35030

LN5#,RN5#,7#

RR

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-35030

LN5#,RN5#,7#

FR

 1
51632-35030

LN5#,RN5#,7#

RR

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35080

LN5#,RN5#,7#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35070

LN5#,RN5#,7#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35040

RN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU

 1
51703-35041

LN56,RN5#,7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35061

LN56,RN5#,7#

 1
51704-35060

RN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

LN5#,6#,RN5#,6#,7#,VZN6#

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

LN5#,6#,RN5#,6#,7#,VZN6#

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-35040

LN5#,RN5#,7#

 1
57107-35041

LN56,RN5#,7#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-35040

LN5#,RN5#,7#

 1
57108-35041

LN56,RN5#,7#

 1
Common parts
90101-10273
90119-10366
90119-12007
90201-10068
91616-60825
91656-61032
94110-71000
Linked diagrams
5152
