RN55L-SREA3W (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )

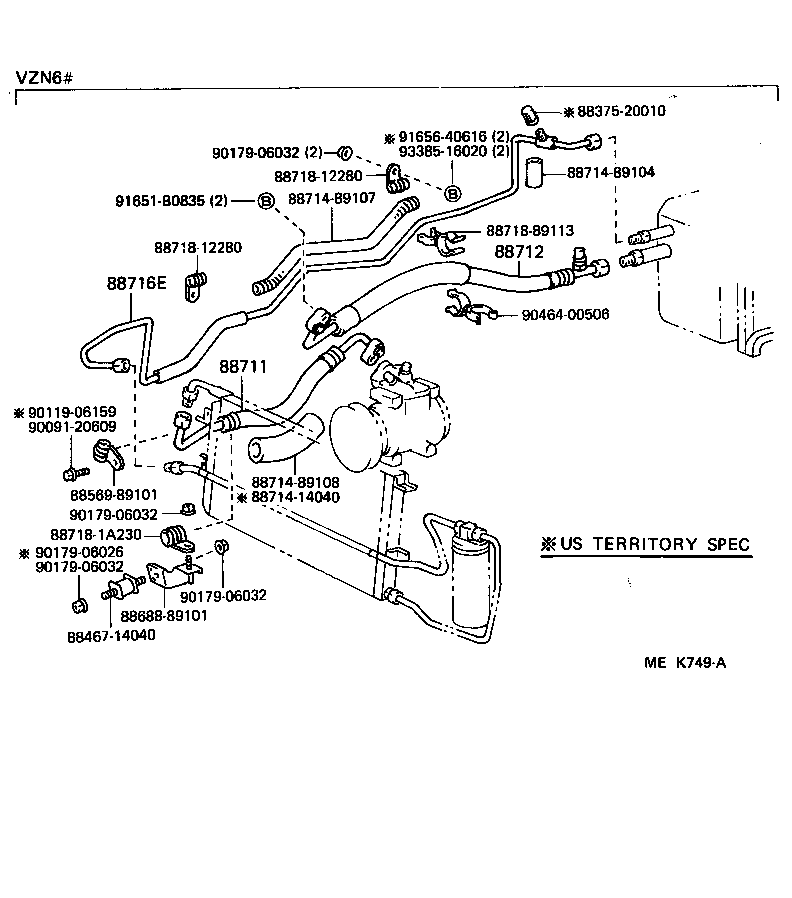

Click highlighted areas on diagram

diagram 8837520010 8846714040 8856989101 8868889101 88711 88712 8871414040 8871489104 8871489107 8871489108 88716E 8871812280 8871812280 887181A230 8871889113 9009120609 9011906159 9017906026 9017906032 9017906032 9017906032 9017906032 9046400506 91651B0835 9165640616 9338516020
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89115

RN5#,6#..T1

49 STATES

 1
88711-89131

RN55,75..HVY..USA

US TERRITORY SPEC

 1
88711-89131

RN5#,6#,7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89118

RN5#,6#..T1

49 STATES

 1
88720-89115

RN55,75..HVY..USA

US TERRITORY SPEC

 1
88720-89109

RN55,75..HVY..USA

US TERRITORY SPEC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89137

RN5#,6#..T1

 1
88716-89148

RN5#,6#,7#

 1
88716-89148

RN55,75..HVY..USA

US TERRITORY SPEC

 1
Common parts
88375-20010
88467-14040
88569-89101
88688-89101
88714-14040
88714-89104
88714-89107
88714-89108
88718-12280
88718-1A230
88718-89113
90091-20609
90119-06159
90179-06026
90179-06032
90464-00506
91651-B0835
91656-40616
93385-16020
