RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)SR5,SRT..EFI,TBO

Click highlighted areas on diagram

diagram 8271114110 83391B 83731 83731 88200A 88200B 88200B 88200B 88200B 88200B 88200D 88200D 88200D 88250A 88291 88291 88292 9011906033 9011906033 9011908190 9011908190 9011908190 9017908096 9017908096 9017908096 9046400151 9046400151 9046400190 9046400190 9165640816 9165640816
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-35010

RN5#,6#..SR5..EFI

 1
83731 - CABLE, CRUISE CONTROL
83731-35010

RN5#,6#..SR5..EFI

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205

RN5#,6#..SR5..EFI

L=1150

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205

RN5#,6#..SR5..EFI

L=1150

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205

RN5#,6#..SR5..EFI

L=1150

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205

RN5#,6#..SR5..EFI

L=1150

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205

RN5#,6#..SR5..EFI

L=1150

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35030

RN5#..EFI

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35030

RN5#..EFI

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35030

RN5#..EFI

 1
Common parts
82711-14110
90119-06033
90119-08190
90179-08096
90464-00151
90464-00190
91656-40816

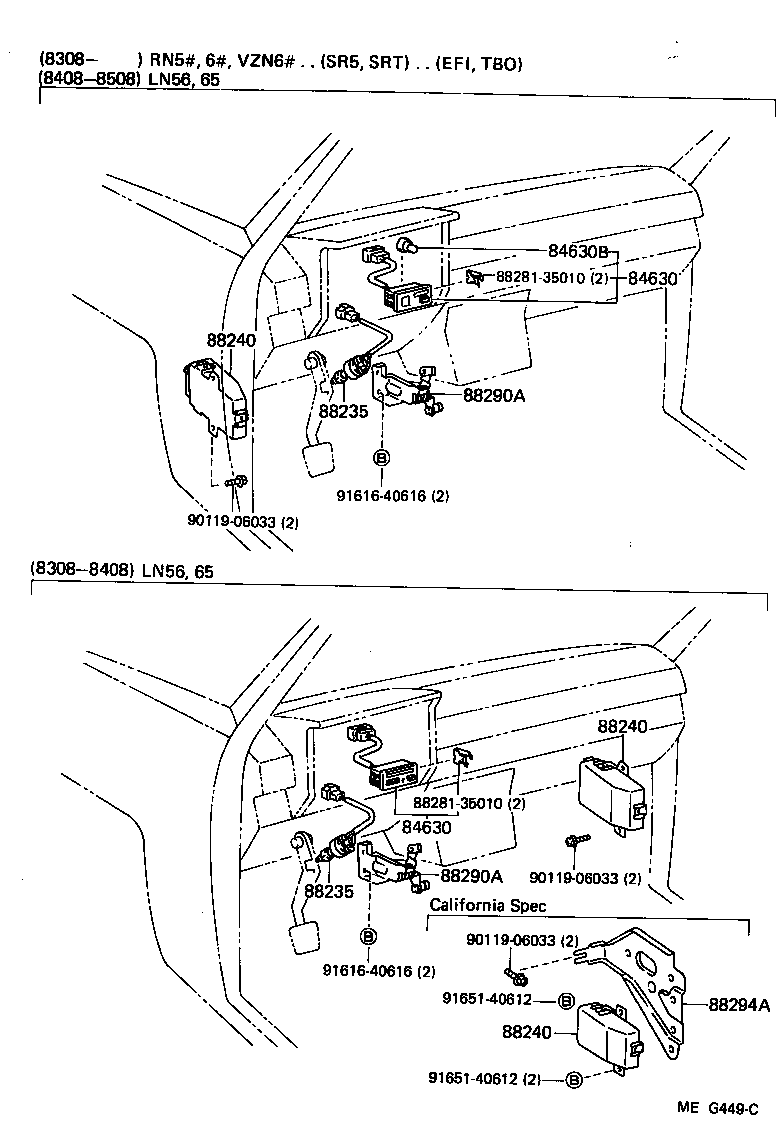

(8308- )RN6#..SR5,SRT..EFI,TBO ; (8308- )LN56,65,RN5#..4FC,5F..HLF..DSL,EFI,T

Click highlighted areas on diagram

diagram 84630 84630 84630B 88235 88235 88240 88240 88240 8828135010 8828135010 88290A 88290A 88294A 9011906033 9011906033 9011906033 9161640616 9161640616 9165140612 9165140612
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
88230-35010

RN5#..EFI

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
88230-35010

RN5#..EFI

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35020

RN5#..EFI

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35020

RN5#..EFI

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35020

RN5#..EFI

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-89102

RN5#,6#..(SR5,SRT)..(EFI,TBO)

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-89102

RN5#,6#..(SR5,SRT)..(EFI,TBO)

 1
Common parts
88281-35010
90119-06033
91616-40616
91651-40612
