RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RN5#,6#,7#..EFI,TBO

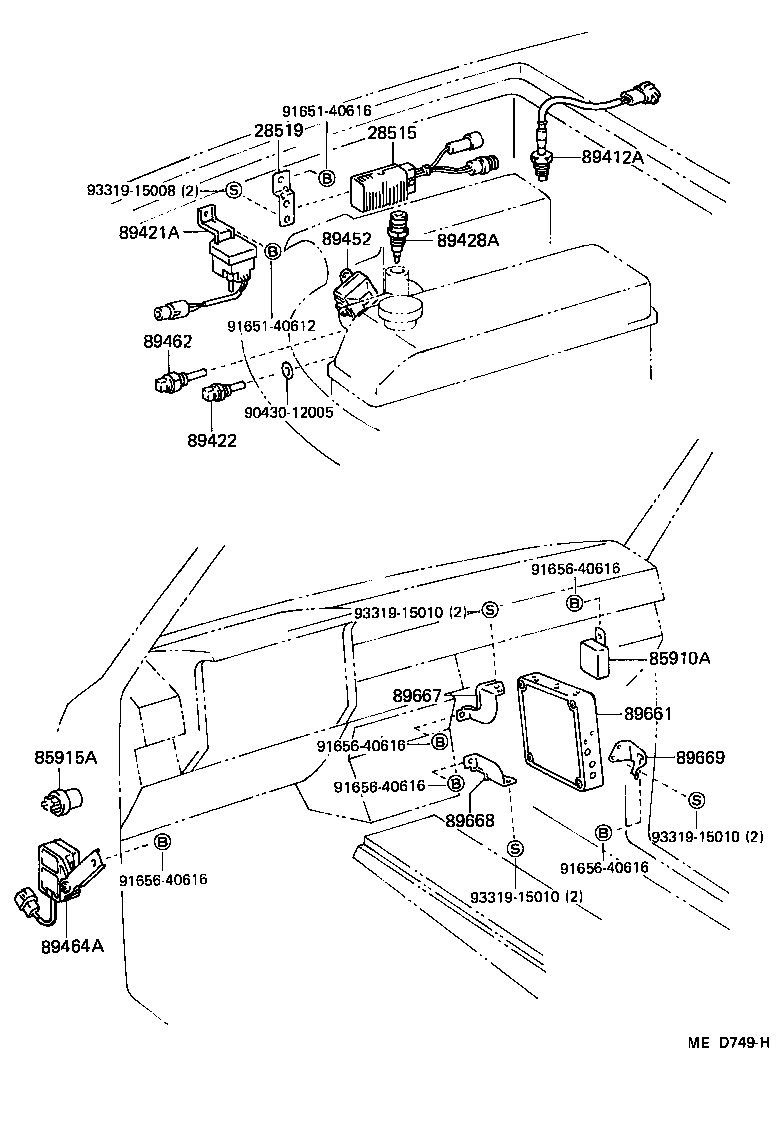

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 89412A 89421A 89422 89428A 89452 89462 89464A 89661 89667 89668 89669 9043012005 9165140612 9165140616 9165640616 9165640616 9165640616 9165640616 9165640616 9331915008 9331915010 9331915010 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-35010

22REC..RN5#

 1
28515-26020

22REC..RN5#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-35010

22REC..RN5#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-14020

RN5#,6#,75..EFI,TBO

 1
85915A - RELAY, MAIN
90987-02004

RN5#,6#,75..EFI,TBO

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

RN5#,6#,75..EFI,TBO

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

RN5#..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

RN5#,6#,75..EFI,TBO

 1
89661 - COMPUTER, ENGINE CONTROL
89561-14182

RN55..4FC..EFI

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89567-35010

RN5#,6#..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89568-35010

RN5#,6#..EFI,TBO

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89569-35010

RN55,6#,7#,VZN6#..EFI,TBO

 1
Common parts
90430-12005
91651-40612
91651-40616
91656-40616
93319-15008
93319-15010
