RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,7#

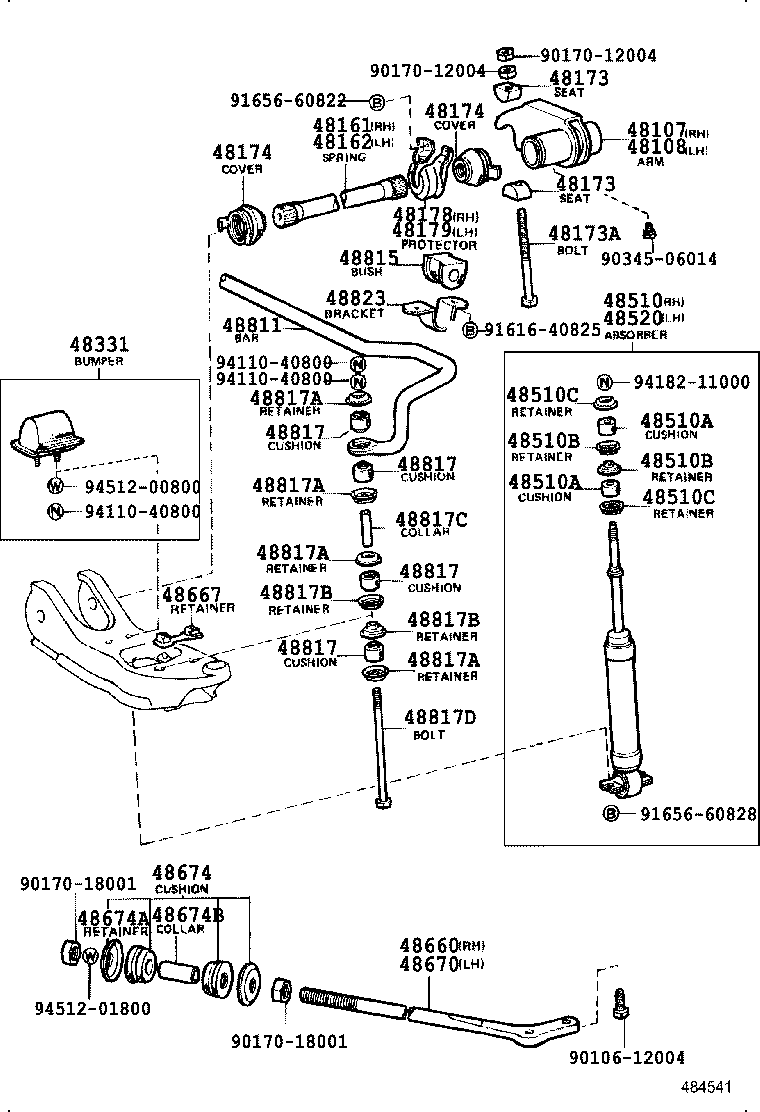

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48173 48173 48173A 48174 48174 48178 48179 48331 48510 48510A 48510A 48510B 48510B 48510C 48510C 48520 48660 48667 48670 48674 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817B 48817C 48817D 48823 9010612004 9017012004 9017012004 9017018001 9017018001 9034506014 9161640825 9165660822 9165660828 9411040800 9411040800 9411040800 9418211000 9451200800 9451201800
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-35020

LN5#,RN5#,7#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-35020

LN5#,RN5#,7#

 1
48161 - SPRING, TORSION BAR, RH
48161-35040

RN5#,70..HLF..(CBR,EFI)

 1
48162 - SPRING, TORSION BAR, LH
48162-35040

RN5#,70..HLF..(CBR,EFI)

 1
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35010

LN5#,RN5#,7#

UPR

 2
48173-35030

LN5#,RN5#,7#

LWR

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35010

LN5#,RN5#,7#

UPR

 2
48173-35030

LN5#,RN5#,7#

LWR

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12104

LN5#,RN5#,7#

 2
48174 - COVER, TORSION BAR DUST
48174-35010

LN5#,RN5#,7#

FR

 2
48174-35020

LN5#,RN5#,7#

RR

 2
48174 - COVER, TORSION BAR DUST
48174-35010

LN5#,RN5#,7#

FR

 2
48174-35020

LN5#,RN5#,7#

RR

 2
48178 - PROTECTOR, TORSION BAR DUST COVER, RH
48178-35020

LN5#,RN5#,7#

 1
48179 - PROTECTOR, TORSION BAR DUST COVER, LH
48178-35020

LN5#,RN5#,7#

 1
48331 - BUMPER, FRONT SPRING, NO.1
48304-35080

LN5#,RN5#,7#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39425

RN5#,7#

MARK 48511-35190

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01002

LN5#,RN5#,7#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01002

LN5#,RN5#,7#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02005

LN5#,RN5#,7#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02005

LN5#,RN5#,7#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02069

LN5#,RN5#,7#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02069

LN5#,RN5#,7#

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39425

RN5#,7#

MARK 48511-35190

 1
48660 - BAR ASSY, STRUT, RH
48661-35021

LN5#,RN5#,7#

 1
48667 - RETAINER, STRUT BAR
48667-35010

LN5#,RN5#,7#

 2
48670 - BAR ASSY, STRUT, LH
48671-35021

LN5#,RN5#,7#

 1
48674 - CUSHION, STRUT BAR
48674-39035

RN5#,7#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

LN5#,RN5#,7#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18002

LN5#,RN5#,7#

 2
48811 - BAR, STABILIZER, FRONT
48811-35150

RN5#,70..HLF

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30060

RN5#,70..HLF

 2
48817 - CUSHION, FRONT STABILIZER
48817-30010

RN5#,7#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

RN5#,7#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

RN5#,7#

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

RN5#,7#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

RN5#,7#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

RN5#,7#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

RN5#,7#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02032

RN5#,7#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

RN5#,7#

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02015

RN5#,7#

 4
48817C - COLLAR(FOR STABILIZER BAR)
90387-09004

RN5#,7#

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-08038

RN5#,7#

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48823-35030

LN65,RN5#,6#,7#

 2
Common parts
90106-12004
90170-12004
90170-18001
90345-06014
91616-40825
91656-60822
91656-60828
94110-40800
94182-11000
94512-00800
94512-01800
