RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,7#

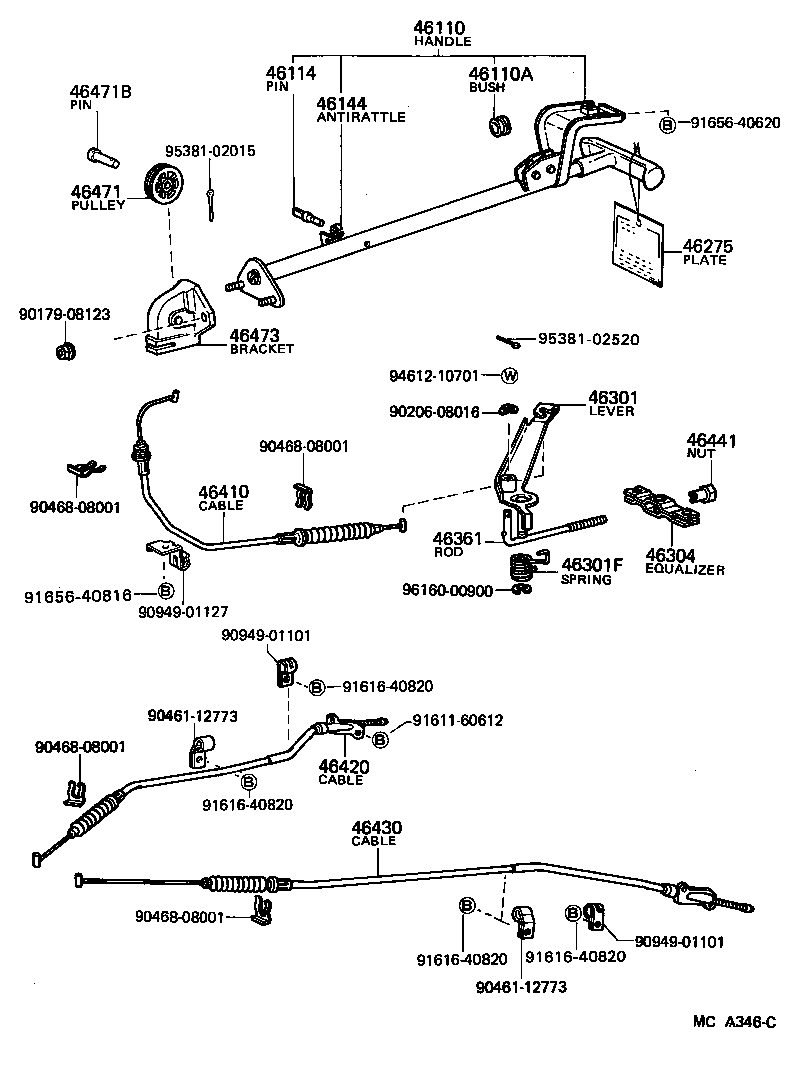

Click highlighted areas on diagram

diagram 46110 46110A 46114 46144 46275 46301 46301F 46304 46361 46410 46420 46430 46441 46471 46471B 46473 9017908123 9020608016 9046112773 9046112773 9046808001 9046808001 9046808001 9046808001 9094901101 9094901101 9094901127 9161160612 9161640820 9161640820 9161640820 9161640820 9165640620 9165640816 9461210701 9538102015 9538102520 9616000900
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46110-35160

LN5#,65,RN5#,6#

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LN5#,6#,RN5#,6#,7#,VZN6#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35120

LN5#,RN5#,7#

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-32018

LN5#,RN5#,7#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

LN5#,RN5#,7#

 1
46361 - ROD, PARKING BRAKE PULL
46361-35050

LN5#,RN5#,7#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35230

LN5#,RN5#,7#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35200

LN56,RN55..HLF

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35170

LN56,RN55..HLF

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

LN5#,RN5#,7#

 1
46471 - PULLEY, WIRE
46471-20010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

LN5#,6#,RN5#,6#,7#

 1
46473 - BRACKET, PULLEY
46473-35020

LN5#,6#,RN5#,6#,7#

 1
Common parts
90179-08123
90206-08016
90461-12773
90468-08001
90949-01101
90949-01127
91611-60612
91616-40820
91656-40620
91656-40816
94612-10701
95381-02015
95381-02520
96160-00900
