RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RN5#,7#..ATM..CBR,EFI

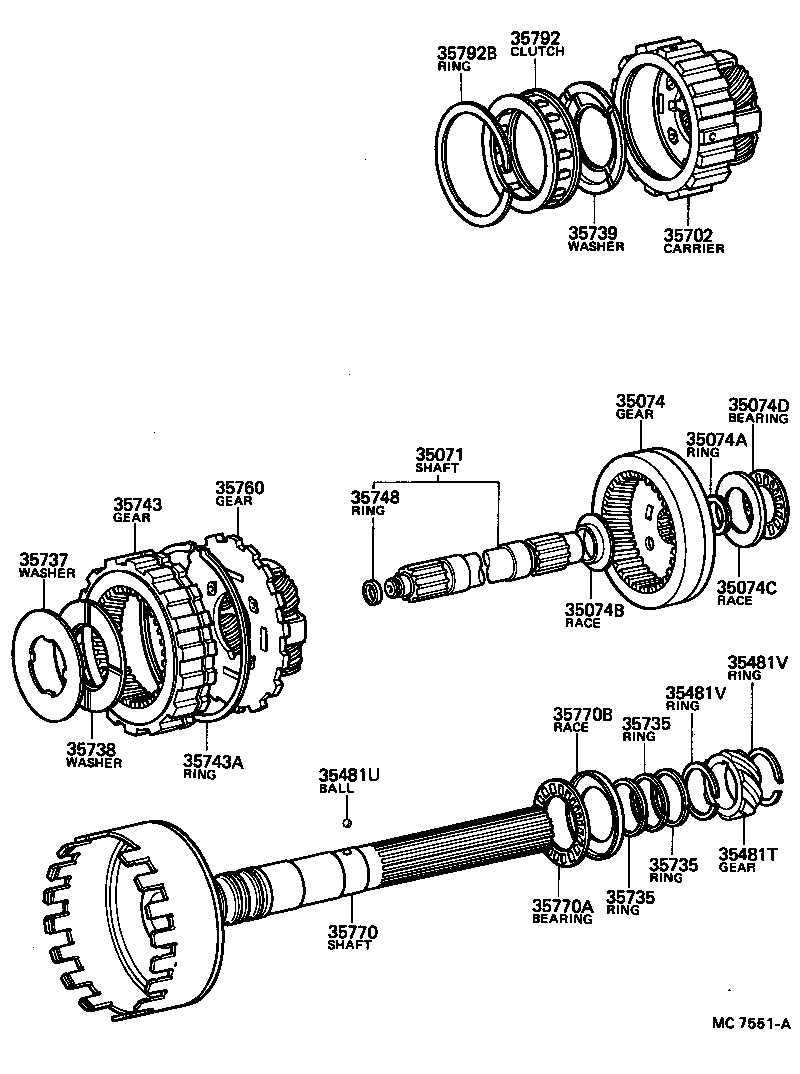

Click highlighted areas on diagram

diagram 35071 35074 35074A 35074B 35074C 35074D 35481T 35481U 35481V 35481V 35702 35735 35735 35735 35737 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-30041

RN5#,7#..ATM..(CBR,EFI)

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30020

RN55..4FC

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

RN5#,7#..ATM..(CBR,EFI)

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

RN5#,7#..ATM..(CBR,EFI)

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

RN5#,7#..ATM..(CBR,EFI)

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

RN5#,7#..ATM..(CBR,EFI)

 1
35481T - GEAR, SPEEDMETER DRIVE (ATM)
33481-20100

RN55..4FC..(SR5,STD)

N=6

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

RN5#,7#..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

RN5#,7#..ATM

T=1.50,OD=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

RN5#,7#..ATM

T=1.50,OD=33.8

 2
35702 - CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR
35704-30030

RN5#,7#..ATM..(CBR,EFI)

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RN5#,7#..ATM..(CBR,EFI)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RN5#,7#..ATM..(CBR,EFI)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RN5#,7#..ATM..(CBR,EFI)

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-30020

RN5#,7#..ATM..(CBR,EFI)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

RN5#,7#..ATM..(CBR,EFI)

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30030

RN5#,7#..ATM..(CBR,EFI)

 1
35770 - SHAFT ASSY, OUTPUT
35770-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

RN5#,7#..ATM..(CBR,EFI)

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

RN5#,7#..ATM..(CBR,EFI)

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

RN5#,7#..ATM..(CBR,EFI)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

RN5#,7#..ATM..(CBR,EFI)

 1
