RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )ATM

Click highlighted areas on diagram

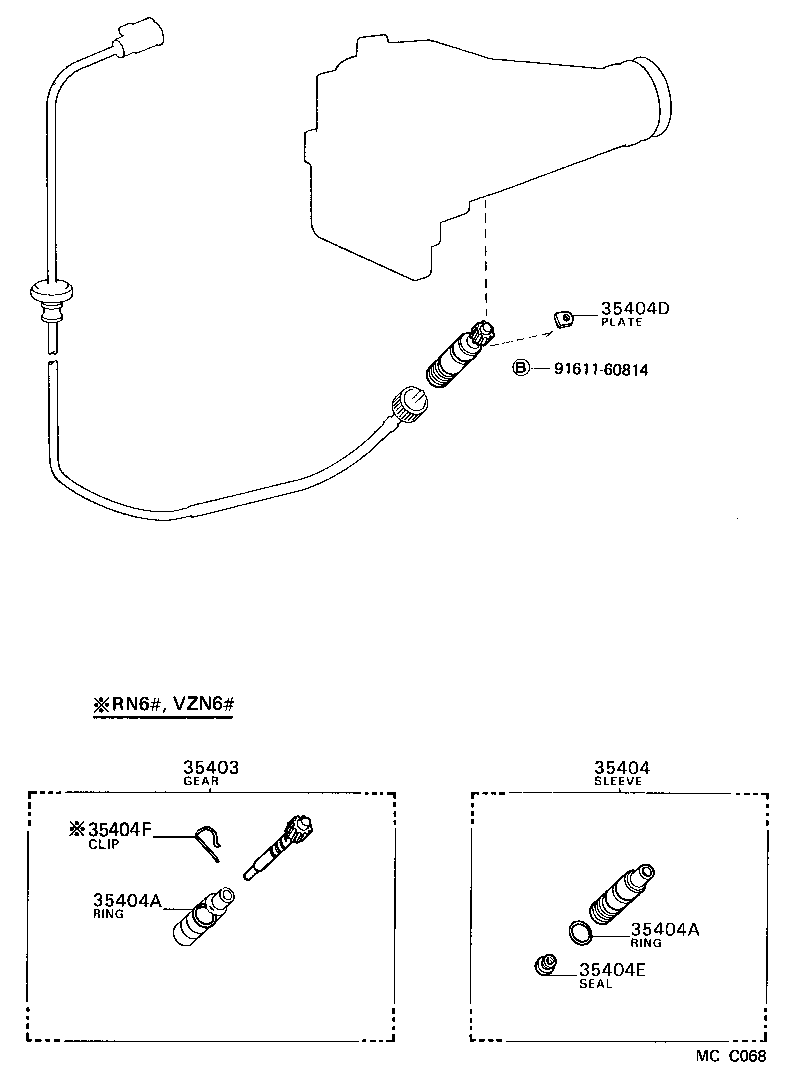

diagram 35403 35404 35404A 35404A 35404D 35404E 35404F 9161160814
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69016

RN55..4FC..(SR5,STD)

N=17

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-30040

RN5#,7#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RN5#,6#,7#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RN5#,6#,7#..ATM

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

RN5#,6#,7#,VZN6#..ATM

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

RN5#,6#,7#,VZN6#..ATM

 1
Common parts
91611-60814
