RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RN5#,7#..ATM..CBR,EFI

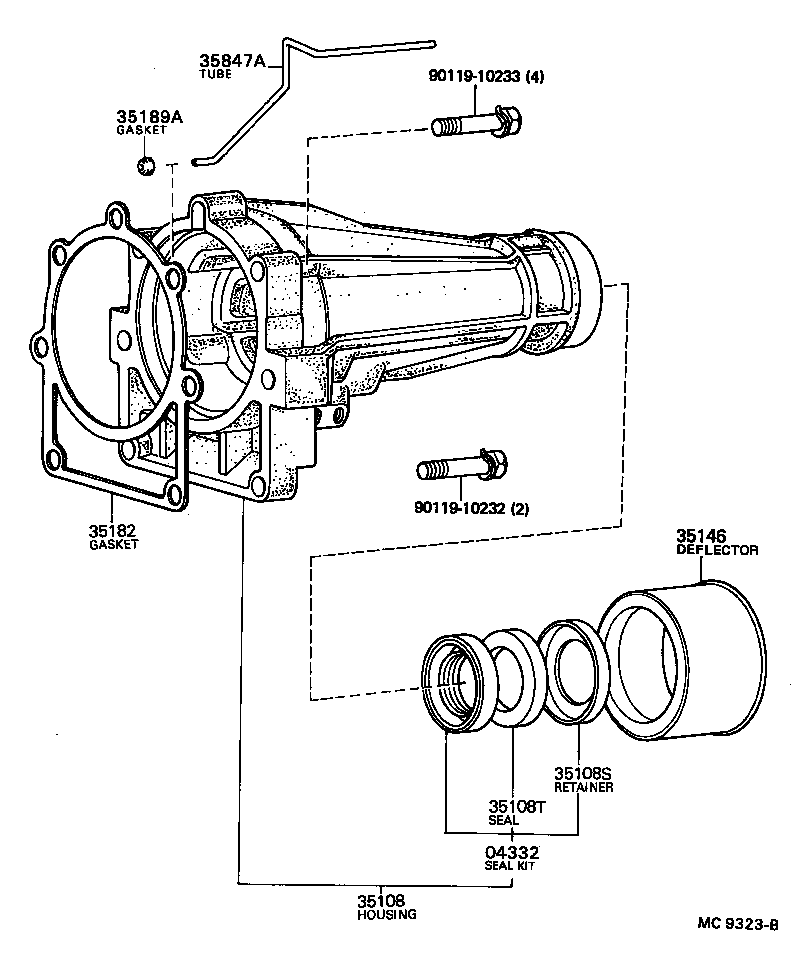

Click highlighted areas on diagram

diagram 04332 35108 35108S 35108T 35146 35182 35189A 35847A 9011910232 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30020

RN5#,7#..ATM..(CBR,EFI)

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-22033

RN5#..4FC

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

RN5#,7#..ATM..(CBR,EFI)

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

RN5#,7#..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

RN5#,7#..ATM

 1
Common parts
90119-10232
90119-10233
