RN55L-PSEA3 (1983)
Toyota 4-Runner Truck
Production
Aug 1983
-
Aug 1984
Engine
22REC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )RN5#..ATM

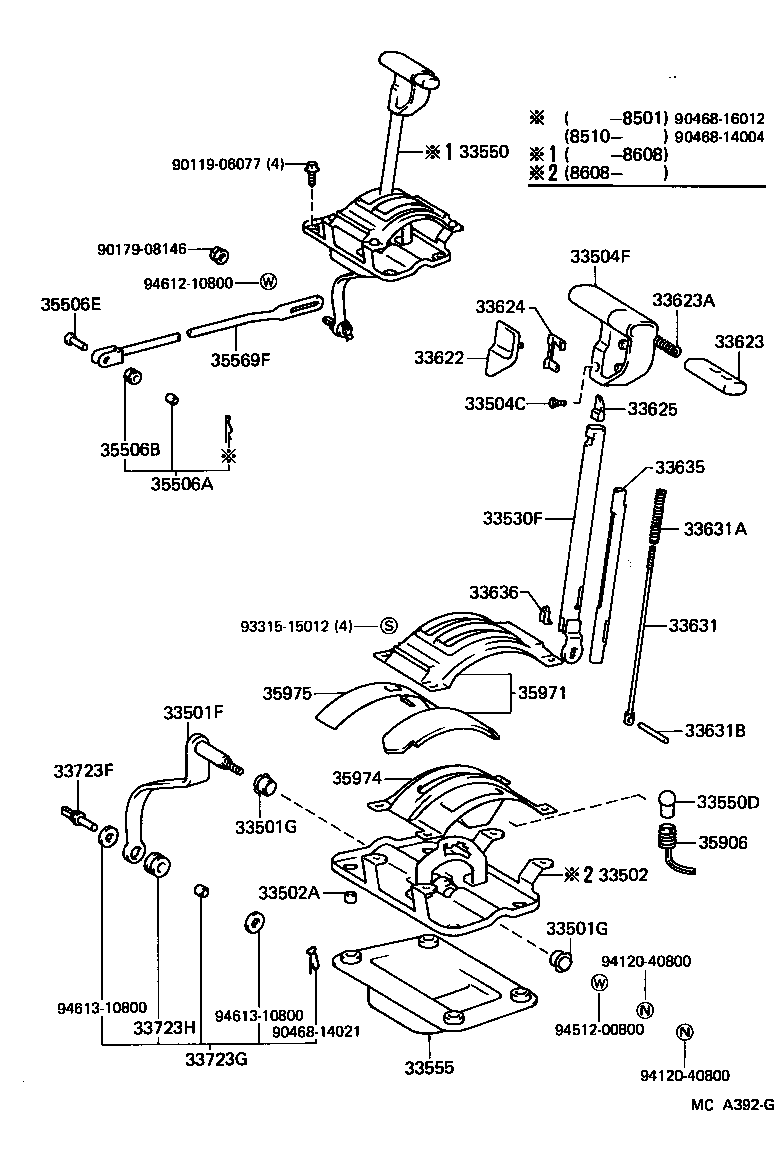

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-35170 |
RN5#..4FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
RN5#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
RN5#..4FC |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
RN5#..4FC OD=8.8 |
4 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
RN5#..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3203001 |
RN5#..4FC BLACK |
1 | ||
| 33504-2210101 |
LN51,RN5#,75..4F BLACK |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-35040 |
RN5#..4FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-35100 |
RN5#..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11034 |
RN5#..4FC 12V 3.4W,12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-35060 |
RN5#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3201001 |
RN5#..4FC BLACK |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3202001 |
RN5#..4FC BLACK |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
RN5#..4FC |
1 | ||
| 33624 - HOLDER, KNOB COVER | ||||
| 33624-32020 |
RN5#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
RN5#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-35020 |
RN5#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
RN5#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
RN5#..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-35010 |
RN5#..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
RN5#..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
RN5#,6#,75,VZN6#..4FC |
2 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
RN5#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
RN5#,6#,75,VZN6#..4FC |
2 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
RN5#..4FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
RN5#,6#,VZN6#..4FC |
2 | ||
| 35506E - PIN, W/HOLE (FOR MANUAL VALVE LEVER) | ||||
| 90240-08120 |
RN5#..4FC |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33702-35050 |
RN55..4FC..EFI |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35030 |
RN5#..4FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35907-35020 |
RN5#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22020 |
RN5#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35010 |
RN5#..4FC |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90179-08146 | ||||
| 90468-14004 | ||||
| 90468-14021 | ||||
| 90468-16012 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
