RN55L-PSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RN5#..4F

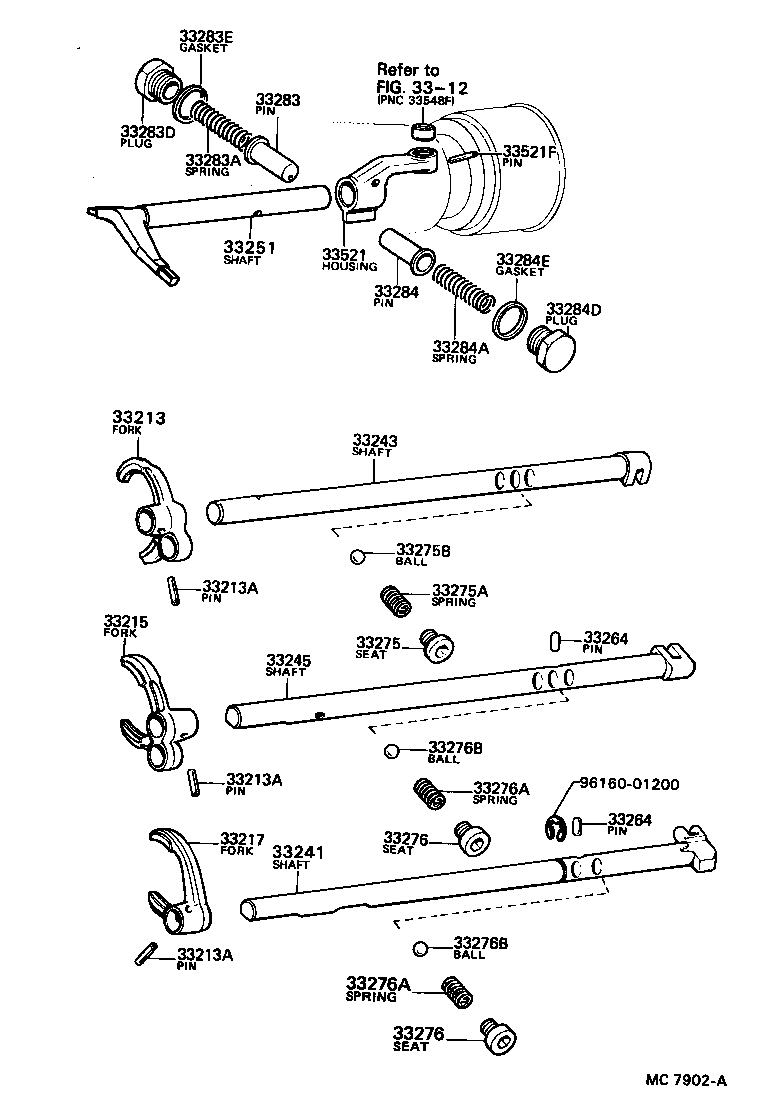

Click highlighted areas on diagram

diagram 3312 33213 33213A 33213A 33213A 33215 33217 33241 33243 33245 33251 33264 33264 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33283 33283A 33283D 33283E 33284 33284A 33284D 33284E 33521 33521F 9616001200
Part # Description Qty Price
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33241 - SHAFT, REVERSE SHIFT FORK
33244-30030

RN5#..4F

 1
33251 - LEVER, SHIFT & SELECT
33251-20040

RN5#..4F

 1
Common parts
96160-01200
Linked diagrams
3312
