RN55L-PSCEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1988
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SR5,SRT

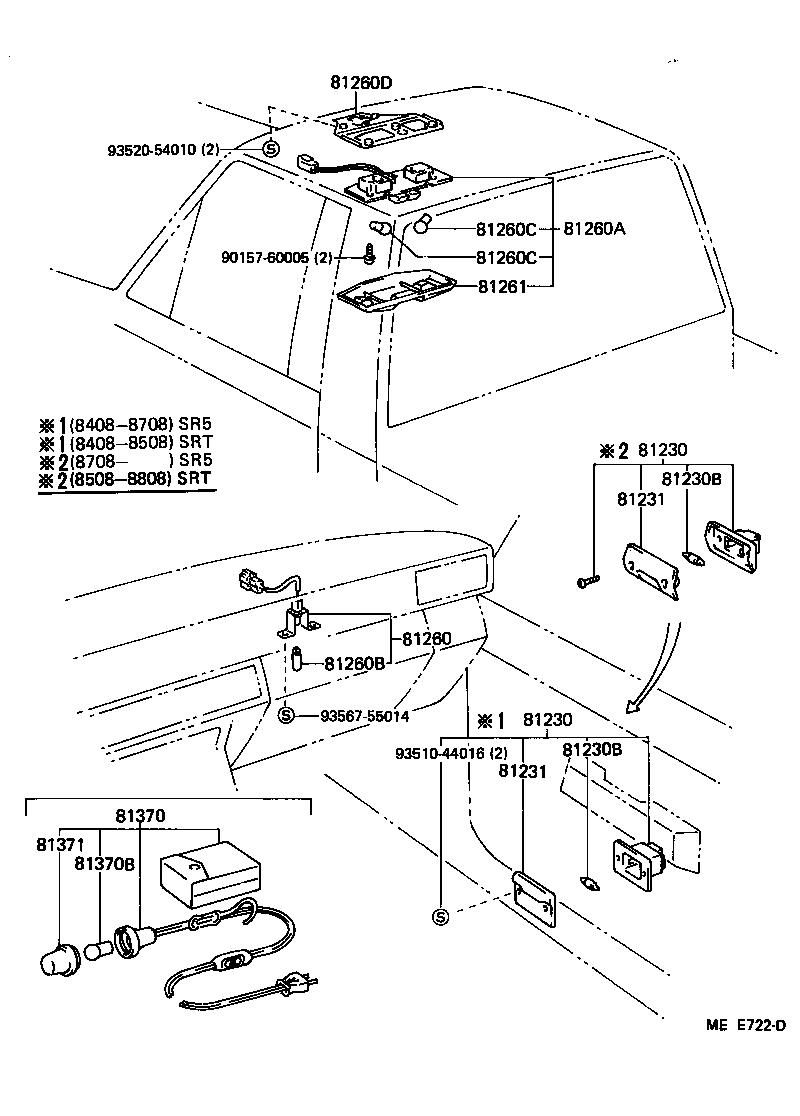

Click highlighted areas on diagram

diagram 81230 81230 81230B 81230B 81231 81231 81260 81260A 81260B 81260C 81260C 81260D 81261 81370 81370B 81371 9015760005 9351044016 9352054010 9356755014
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-89101

RN5#,6#..SR5,SRT

 2
81230-89101

RN55,6#..SR5

 2
81230 - LAMP ASSY, COURTESY
81230-89101

RN5#,6#..SR5,SRT

 2
81230-89101

RN55,6#..SR5

 2
81231 - LENS, COURTESY LAMP
81231-89101

RN5#,6#..SR5,SRT

 2
81231-89101

RN55,6#..SR5

 2
81231 - LENS, COURTESY LAMP
81231-89101

RN5#,6#..SR5,SRT

 2
81231-89101

RN55,6#..SR5

 2
81260A - LAMP ASSY, MAP
81260-8910203

RN5#,6#..SR5,SRT

GRAY,GRAY,TRIM1#

 1
81260-8910208

RN5#,6#..SR5,SRT

IVORY,IVORY,TRIM4#

 1
81260D - BRACKET, MAP LAMP
55865-89102

RN5#,6#,VZN6#..(SR5,SRT)..HLF

W/SUN ROOF

 1
81261 - LENS AND COVER, MAP LAMP
81261-8910203

RN5#,6#..SR5,SRT

GRAY,GRAY,TRIM1#

 1
81261-8910208

RN5#,6#..SR5,SRT

IVORY,IVORY,TRIM4#

 1
Common parts
90157-60005
93510-44016
93520-54010
93567-55014
