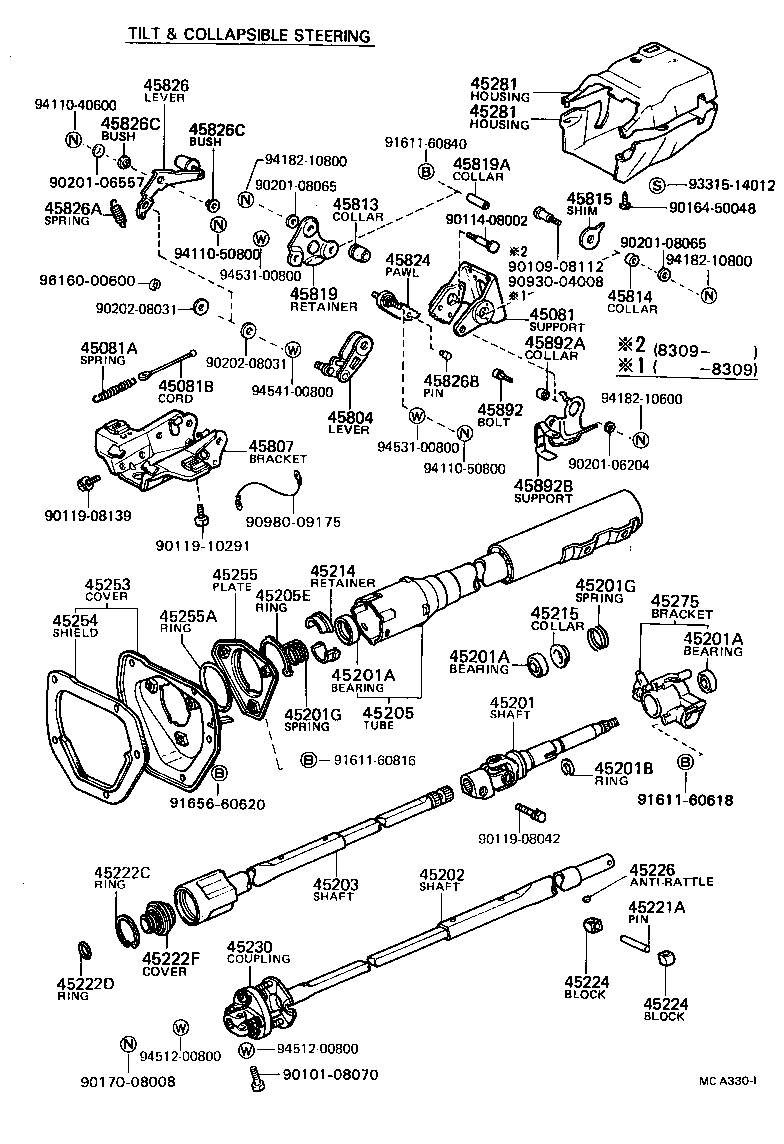

RN55L-PSCEA (1984)
Toyota 4-Runner Truck
(8308-8608)LN56 ; (8308- )RN75 ; (8308- )RN50..SR5 ; (8308- )RN55..4F,4FC.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-35010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45081-35010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45081-35010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45081-35010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 90506-23009 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 90506-23009 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 90506-23009 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
RN55..4FC..TBO..IV;RN55,75..(4F,4FC)..W;LN56,RN50,70..DLX,SR5;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV L=107.5 |
2 | ||
| 90945-02034 |
RN55..4FC..TBO..IV;RN55,75..(4F,4FC)..W;LN56,RN50,70..DLX,SR5;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV L=107.5 |
2 | ||
| 90945-02034 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) L=107.5 |
2 | ||
| 90945-02034 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35090 |
LN5#,RN5#,7# |
1 | ||
| 45210-35090 |
LN5#,RN5#,7# |
1 | ||
| 45210-22050 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45210-22050 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45210-22050 |
RN55..4FC..TBO..IV;RN55,75..(4F,4FC)..W;LN56,RN50,70..DLX,SR5;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45210-22050 |
RN55..4FC..TBO..IV;RN55,75..(4F,4FC)..W;LN56,RN50,70..DLX,SR5;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,UPR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-28001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 90363-18001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN5#,6#,RN5#,6#,7#,VZN6# T=1.20,LWR |
1 | ||
| 90520-17042 |
LN5#,6#,RN5#,6#,7#,VZN6# T=1.20,LWR |
1 | ||
| 90520-17269 |
LN5#,RN5#,7# T=1.20,UPR |
1 | ||
| 90520-17269 |
LN5#,RN5#,7# T=1.20,UPR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LN5#,RN5#,7# |
1 | ||
| 90501-29388 |
LN5#,RN5#,7# |
1 | ||
| 90501-45011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
LN5#,RN5#,7# |
1 | ||
| 90501-29388 |
LN5#,RN5#,7# |
1 | ||
| 90501-45011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 90501-45011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35070 |
LN56,RN5#,70..HLF W/POWER STEERING |
1 | ||
| 45220-35070 |
LN56,RN5#,70..HLF W/POWER STEERING |
1 | ||
| 45220-35070 |
LN56,RN5#..(DLX,SR5,SRT)..HLF W/POWER STEERING |
1 | ||
| 45220-35070 |
LN56,RN5#..(DLX,SR5,SRT)..HLF W/POWER STEERING |
1 | ||
| 45220-35040 |
LN5#,RN5#,7#..DLX,SR5,STD |
1 | ||
| 45220-35040 |
LN5#,RN5#,7#..DLX,SR5,STD |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-35030 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45260-35030 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45260-35030 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45260-35030 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-35060 |
LN5#,RN5#,7# |
1 | ||
| 45870-35060 |
LN5#,RN5#,7# |
1 | ||
| 45870-35070 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..(SR5,SRT)..CBU;RN50,75..(4F,4FC,5F)..EFI;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45870-35070 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..(SR5,SRT)..CBU;RN50,75..(4F,4FC,5F)..EFI;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90521-01002 |
LN5#,65,RN5#,6# |
1 | ||
| 90521-01002 |
LN5#,65,RN5#,6# |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
LN5#,RN5#,7# |
2 | ||
| 45214-30040 |
LN5#,RN5#,7# |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45215-22011 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45215-22011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45215-22011 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
LN5#,RN5#,7# |
1 | ||
| 90250-10059 |
LN5#,RN5#,7# |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
LN5#,RN5#,7# |
1 | ||
| 90521-52003 |
LN5#,RN5#,7# |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
LN5#,RN5#,7# |
1 | ||
| 90301-23054 |
LN5#,RN5#,7# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
LN5#,RN5#,7# |
1 | ||
| 45222-30030 |
LN5#,RN5#,7# |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LN5#,RN5#,7# 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45225-30040 |
LN5#,RN5#,7# 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LN5#,RN5#,7# 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224-30040 |
LN5#,RN5#,7# 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
LN5#,RN5#,7# 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45225-30040 |
LN5#,RN5#,7# 16.00-16.03,L=16.00-16.03 |
2 | ||
| 45224-30040 |
LN5#,RN5#,7# 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45224-30040 |
LN5#,RN5#,7# 15.97-16.00,L=15.97-16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
LN5#,RN5#,7# |
2 | ||
| 45226-30020 |
LN5#,RN5#,7# |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35020 |
LN5#,RN5#,7# |
1 | ||
| 45230-35020 |
LN5#,RN5#,7# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35110 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45025-35110 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35040 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45254-35040 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-35010 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45255-35010 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 90301-60122 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35170 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45280-35170 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45280-35160 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45280-35160 |
LN5#,RN5#,7#..4F,4FC,5F |
1 | ||
| 45280-35170 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 45280-35170 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) W/TILT STEERING |
1 | ||
| 45280-35171 |
RN55,75..4FC W/TILT STEERING |
1 | ||
| 45280-35171 |
RN55,75..4FC W/TILT STEERING |
1 | ||
| 45280-35161 |
RN55,75..4FC |
1 | ||
| 45280-35161 |
RN55,75..4FC |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35220 |
LN5#,RN5#,7#..4F,4FC,5F UPR |
1 | ||
| 45286-35220 |
LN5#,RN5#,7#..4F,4FC,5F UPR |
1 | ||
| 45287-35180 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) LWR,W/TILT STEERING |
1 | ||
| 45287-35180 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) LWR,W/TILT STEERING |
1 | ||
| 45286-3522002 |
RN55..SR5 UPR,RED,RED,TRIM3# |
1 | ||
| 45286-3522002 |
RN55..SR5 UPR,RED,RED,TRIM3# |
1 | ||
| 45287-35170 |
LN5#,RN5#,7#..4F,4FC,5F LWR |
1 | ||
| 45287-35170 |
LN5#,RN5#,7#..4F,4FC,5F LWR |
1 | ||
| 45286-3522005 |
LN56,RN5#,7#..4F,4FC,5F UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN56,RN5#,7#..4F,4FC,5F UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-35230 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) UPR,W/TILT STEERING |
1 | ||
| 45286-35230 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) UPR,W/TILT STEERING |
1 | ||
| 45286-3522004 |
LN56,RN5#,7#..4F,4FC,5F UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3522004 |
LN56,RN5#,7#..4F,4FC,5F UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3523005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3523002 |
RN55..XTR UPR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3523002 |
RN55..XTR UPR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3522003 |
LN56,RN5#,7#..4F,4FC,5F UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522003 |
LN56,RN5#,7#..4F,4FC,5F UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3523004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518002 |
RN55..XTR LWR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45287-3518002 |
RN55..XTR LWR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3523003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3523003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517003 |
LN56,RN5#,7#..4F,4FC,5F LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517003 |
LN56,RN5#,7#..4F,4FC,5F LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517002 |
RN55..SR5 LWR,RED,RED,TRIM3# |
1 | ||
| 45287-3517002 |
RN55..SR5 LWR,RED,RED,TRIM3# |
1 | ||
| 45287-3517004 |
LN56,RN5#,7#..4F,4FC,5F LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517004 |
LN56,RN5#,7#..4F,4FC,5F LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517005 |
LN56,RN5#,7#..4F,4FC,5F LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517005 |
LN56,RN5#,7#..4F,4FC,5F LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-35220 |
LN5#,RN5#,7#..4F,4FC,5F UPR |
1 | ||
| 45286-35220 |
LN5#,RN5#,7#..4F,4FC,5F UPR |
1 | ||
| 45287-35180 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) LWR,W/TILT STEERING |
1 | ||
| 45287-35180 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) LWR,W/TILT STEERING |
1 | ||
| 45286-3522002 |
RN55..SR5 UPR,RED,RED,TRIM3# |
1 | ||
| 45286-3522002 |
RN55..SR5 UPR,RED,RED,TRIM3# |
1 | ||
| 45287-35170 |
LN5#,RN5#,7#..4F,4FC,5F LWR |
1 | ||
| 45287-35170 |
LN5#,RN5#,7#..4F,4FC,5F LWR |
1 | ||
| 45286-3522005 |
LN56,RN5#,7#..4F,4FC,5F UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3522005 |
LN56,RN5#,7#..4F,4FC,5F UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-35230 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) UPR,W/TILT STEERING |
1 | ||
| 45286-35230 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) UPR,W/TILT STEERING |
1 | ||
| 45286-3522004 |
LN56,RN5#,7#..4F,4FC,5F UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3522004 |
LN56,RN5#,7#..4F,4FC,5F UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3523005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3523002 |
RN55..XTR UPR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3523002 |
RN55..XTR UPR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3522003 |
LN56,RN5#,7#..4F,4FC,5F UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3522003 |
LN56,RN5#,7#..4F,4FC,5F UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3523004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3523004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518002 |
RN55..XTR LWR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45287-3518002 |
RN55..XTR LWR,W/TILT STEERING,RED,RED,TRIM3# |
1 | ||
| 45286-3523003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-3523003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518004 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3518003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3518003 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517003 |
LN56,RN5#,7#..4F,4FC,5F LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517003 |
LN56,RN5#,7#..4F,4FC,5F LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-3517002 |
RN55..SR5 LWR,RED,RED,TRIM3# |
1 | ||
| 45287-3517002 |
RN55..SR5 LWR,RED,RED,TRIM3# |
1 | ||
| 45287-3517004 |
LN56,RN5#,7#..4F,4FC,5F LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517004 |
LN56,RN5#,7#..4F,4FC,5F LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-3517005 |
LN56,RN5#,7#..4F,4FC,5F LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3517005 |
LN56,RN5#,7#..4F,4FC,5F LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-3518005 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45804-30010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45804-30010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45804-30010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-35031 |
LN56,RN5#,75..(4F,4FC,5F)..(HLF,HVY)..(DSL,EFI,TBO,TD) W/TILT STEERING |
1 | ||
| 45082-35031 |
LN56,RN5#,75..(4F,4FC,5F)..(HLF,HVY)..(DSL,EFI,TBO,TD) W/TILT STEERING |
1 | ||
| 45807-35070 |
LN5#,RN5#,7# |
1 | ||
| 45807-35070 |
LN5#,RN5#,7# |
1 | ||
| 45082-35030 |
RN55..(4F,4FC)..W;LN56,RN50..DLX,SR5;RN55..HLF..EFI..CBU;RN55..XTR..5F..EFI..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45082-35030 |
RN55..(4F,4FC)..W;LN56,RN50..DLX,SR5;RN55..HLF..EFI..CBU;RN55..XTR..5F..EFI..IV;RN55..RCB..(4FC,5F)..EFI..IV W/TILT STEERING |
1 | ||
| 45082-35031 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45082-35031 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22030 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22030 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22050 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-22050 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45813-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22050 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-22050 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-22030 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22030 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22040 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22040 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22040 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22040 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45814-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45814-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.2,T=0.2 |
1 | ||
| 45815-22060 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.2,T=0.2 |
1 | ||
| 45815-22080 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.8,T=0.8 |
1 | ||
| 45815-22080 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.8,T=0.8 |
1 | ||
| 45815-22100 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=1.8,T=1.8 |
1 | ||
| 45815-22100 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=1.8,T=1.8 |
1 | ||
| 45815-22080 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.8,T=0.8 |
1 | ||
| 45815-22080 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.8,T=0.8 |
1 | ||
| 45815-22090 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=1.4,T=1.4 |
1 | ||
| 45815-22090 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=1.4,T=1.4 |
1 | ||
| 45815-22060 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.2,T=0.2 |
1 | ||
| 45815-22060 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.2,T=0.2 |
1 | ||
| 45815-22090 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=1.4,T=1.4 |
1 | ||
| 45815-22090 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=1.4,T=1.4 |
1 | ||
| 45815-22070 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.5,T=0.5 |
1 | ||
| 45815-22070 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) T=0.5,T=0.5 |
1 | ||
| 45815-22070 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.5,T=0.5 |
1 | ||
| 45815-22070 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=0.5,T=0.5 |
1 | ||
| 45815-22100 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=1.8,T=1.8 |
1 | ||
| 45815-22100 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) T=1.8,T=1.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45809-30021 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45809-30021 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45809-30021 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 90387-08002 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 90387-08002 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 90387-08002 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45890-30020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45890-30020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45890-30020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-35010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45826-35010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45826-35010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45826-35010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 90507-14001 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 90507-14001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 90507-14001 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 72538-12010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 72538-12010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 72538-12010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 90386-08123 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 90386-08123 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 90386-08123 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 90386-08123 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
2 | ||
| 90386-08123 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 90386-08123 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45898-22010 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45898-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45898-22010 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45899-22020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45899-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45899-22020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-35020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45289-35020 |
RN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO) |
1 | ||
| 45289-35020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| 45289-35020 |
RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90119-10291 | ||||
| 90164-50048 | ||||
| 90170-08008 | ||||
| 90201-06204 | ||||
| 90201-06557 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 90980-09175 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| 91611-60840 | ||||
| 91656-60620 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
