Toyota 4-runner truck RN55 VACUUM PIPING

RN55L-PRA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985

Engine 22R

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11022	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
23269 - UNION(FOR GAS FILTER)
90404-54018	22R..RN55..4FC	08/1983 - 08/1984	1
90404-54031	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90404-54018	22R..RN5#..4FC	08/1984 - 04/1985	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
Common parts
90119-06033
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
91651-40816
Linked diagrams
2103

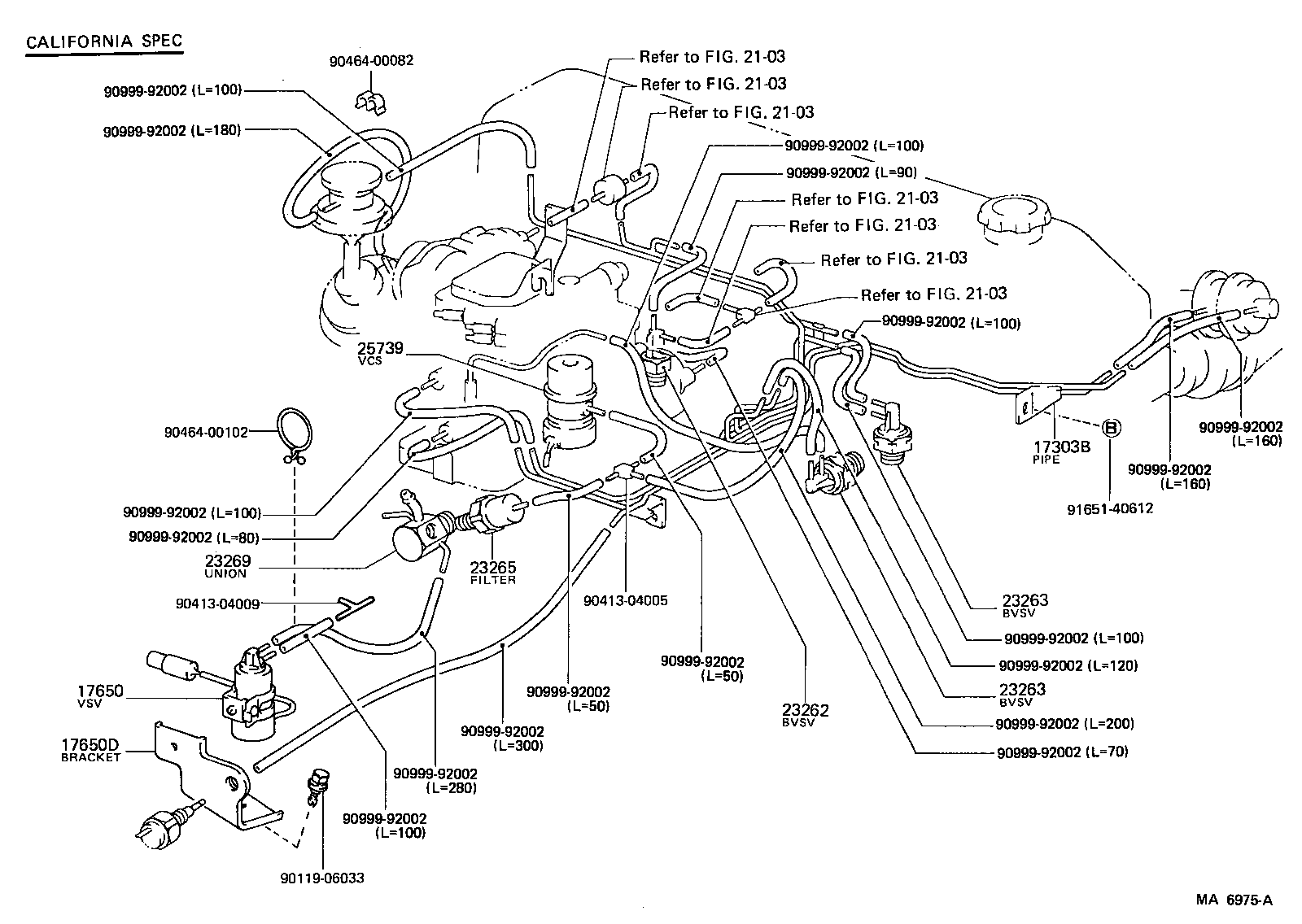

(8308-8408)22R..RN55,6#..3QT,HLF..IV ; (8308-8408)22R..RN5#..STD..HLF..USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11022	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
23269 - UNION(FOR GAS FILTER)
90404-54018	22R..RN55..4FC	08/1983 - 08/1984	1
90404-54031	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90404-54018	22R..RN5#..4FC	08/1984 - 04/1985	1
25739 - SWITCH, VACUUM CONTROL
25739-35010	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
Common parts
90119-06033
90413-04005
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
Linked diagrams
2103

(8308-8408)22R..RN55,6#..3QT,HLF..IV ; (8308-8408)22R..RN5#..STD..HLF..USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11022	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
23269 - UNION(FOR GAS FILTER)
90404-54018	22R..RN55..4FC	08/1983 - 08/1984	1
90404-54031	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90404-54018	22R..RN5#..4FC	08/1984 - 04/1985	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
23285A - VALVE, CHECK, NO.1
90917-10049	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90917-10049	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25709-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90461-10178	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25795-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
Common parts
90000-92002
90119-06033
90413-04004
90413-04009
90464-00082
90464-00102
90464-00197
90464-00215
90464-00232
90999-92002
90999-92003
90999-92004
91651-40612
91651-40814
91651-40816
95411-19930
Linked diagrams
2103

(8308-8808)22R..USA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
04215 - COMPENSATOR KIT, HIGH ALTITUDE
04215-35080	22R..RN5#,6#..(3QT,HLF)..USA	08/1983 - 08/1984	1

Part #

Description

Qty

Price

04215 - COMPENSATOR KIT, HIGH ALTITUDE

04215-35080

22R..RN5#,6#..(3QT,HLF)..USA

(8408-8508)22R..RN55,6#..IV ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..U

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11022	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
23269 - UNION(FOR GAS FILTER)
90404-54018	22R..RN55..4FC	08/1983 - 08/1984	1
90404-54031	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90404-54018	22R..RN5#..4FC	08/1984 - 04/1985	1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
Common parts
90119-08063
90413-04009
90464-00102
90999-92002
90999-92003
91651-40612
Linked diagrams
2103

(8408-8508)22R..USA ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..USA ; (86

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-05035	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	2
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11022	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
23269 - UNION(FOR GAS FILTER)
90404-54018	22R..RN55..4FC	08/1983 - 08/1984	1
90404-54031	22R..RN5#..STD..HLF..USA CALIFORNIA SPEC	08/1983 - 08/1984	1
90404-54018	22R..RN5#..4FC	08/1984 - 04/1985	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
23285A - VALVE, CHECK, NO.1
90917-10049	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90917-10049	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25709-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90461-10178	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010	22R..RN5#..STD..HLF..USA HIGH ALTITUDE SPEC	08/1983 - 08/1984	1
25795-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
Common parts
90119-08063
90413-04004
90413-04009
90464-00082
90464-00102
90464-00197
90464-00215
90464-00232
90999-92002
90999-92003
90999-92004
91651-40612
91651-40816
Linked diagrams
2103

(8308- )22R#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
