RN55L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Jan 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8501- )TBO

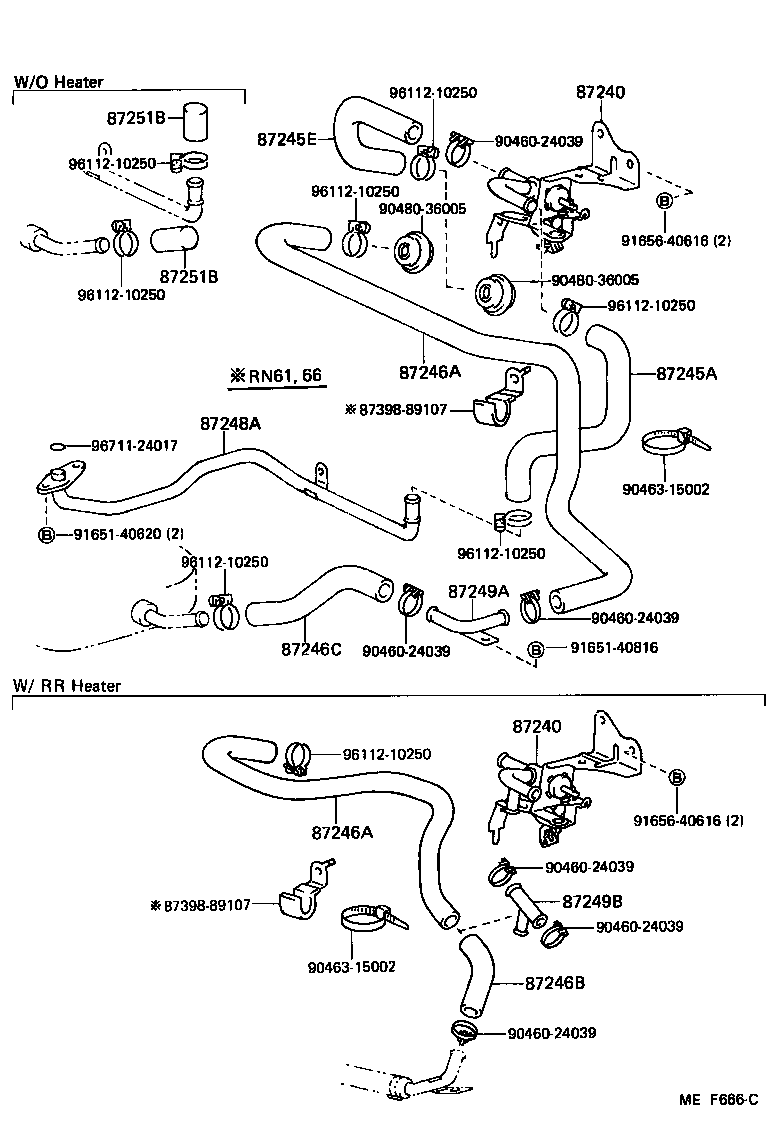

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245E 87246A 87246A 87246B 87246C 87248A 87249A 87249B 87251B 87251B 8739889107 8739889107 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046315002 9046315002 9048036005 9048036005 9165140620 9165140816 9165640616 9165640616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671124017
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-89117

RN5#,6#,7#

 1
87240 - VALVE ASSY, HEATER WATER
87240-89117

RN5#,6#,7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89156

RN5#,6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89146

LN5#,6#,RN5#,6#,7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89184

RN55..TBO

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89184

RN55..TBO

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-89185

RN55..TBO

 1
Common parts
87398-89107
90460-24039
90463-15002
90480-36005
91651-40620
91651-40816
91656-40616
96112-10250
96711-24017
