RN55L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Jan 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8501-8608)RN55..TBO ; (8501- )RN6#..4FC ; (8711- )VZN6#..4FC

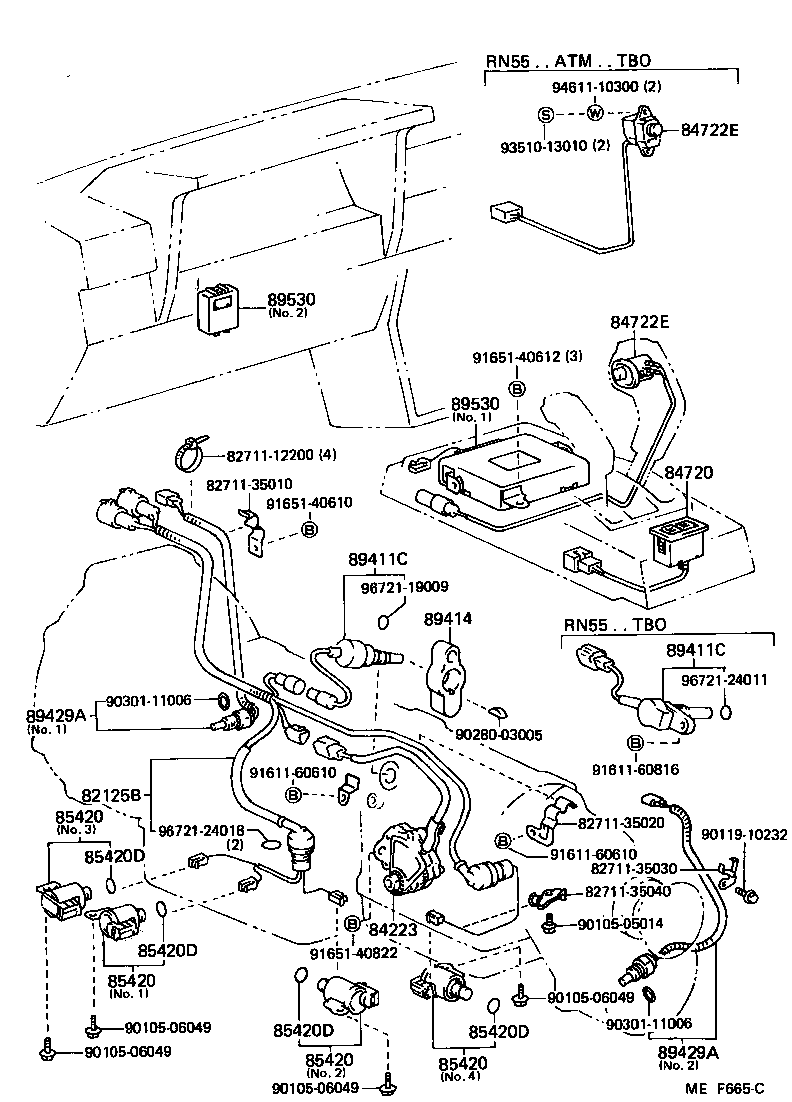

Click highlighted areas on diagram

diagram 82125B 8271112200 8271135010 8271135020 8271135030 8271135040 84223 84720 84722E 84722E 85420 85420 85420 85420 85420D 85420D 85420D 85420D 89411C 89411C 89414 89429A 89429A 89530 89530 9010505014 9010506049 9010506049 9010506049 9010506049 9011910232 9028003005 9030111006 9030111006 9161160610 9161160610 9161160816 9165140610 9165140612 9165140822 9351013010 9461110300 9672119009 9672124011 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-30070

RN55..4FC..TBO

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-35010

RN55..4FC..TBO

 1
84722E - SWITCH, TRANSMISSION CONTROL
84722-35010

RN55..4FC..TBO

 1
84722E - SWITCH, TRANSMISSION CONTROL
84722-35010

RN55..4FC..TBO

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020

RN55..4FC..TBO

NO.1,NO.2(SHIFT)

 1
85420-30120

RN55..4FC..TBO

NO.3(LOCK UP),DENSO

 1
85420-30110

RN55..4FC..TBO

NO.3(LOCK UP),AISHIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020

RN55..4FC..TBO

NO.1,NO.2(SHIFT)

 1
85420-30120

RN55..4FC..TBO

NO.3(LOCK UP),DENSO

 1
85420-30110

RN55..4FC..TBO

NO.3(LOCK UP),AISHIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020

RN55..4FC..TBO

NO.1,NO.2(SHIFT)

 1
85420-30120

RN55..4FC..TBO

NO.3(LOCK UP),DENSO

 1
85420-30110

RN55..4FC..TBO

NO.3(LOCK UP),AISHIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12020

RN55..4FC..TBO

NO.1,NO.2(SHIFT)

 1
85420-30120

RN55..4FC..TBO

NO.3(LOCK UP),DENSO

 1
85420-30110

RN55..4FC..TBO

NO.3(LOCK UP),AISHIN

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

RN55..4FC..TBO

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

RN55..4FC..TBO

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

RN55..4FC..TBO

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

RN55..4FC..TBO

 3
89411C - SENSOR, SPEED
89411-30090

RN55..4FC..TBO

 1
89411C - SENSOR, SPEED
89411-30090

RN55..4FC..TBO

 1
89414 - ROTOR, SENSOR
89414-30020

RN55..4FC..TBO

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-35020

RN55..4FC..TBO

AISIN,NO.1

 1
89530-35010

RN55..4FC..TBO

DENSO,NO.1

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-35020

RN55..4FC..TBO

AISIN,NO.1

 1
89530-35010

RN55..4FC..TBO

DENSO,NO.1

 1
Common parts
82711-12200
82711-35010
82711-35020
82711-35030
82711-35040
90105-05014
90105-06049
90119-10232
90280-03005
90301-11006
91611-60610
91611-60816
91651-40610
91651-40612
91651-40822
93510-13010
94611-10300
96721-19009
96721-24011
96721-24018
