RN55L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Jan 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8501-8608)RN55..4FC..TBO ; (8501- )RN6#,VZN6#..4FC

Click highlighted areas on diagram

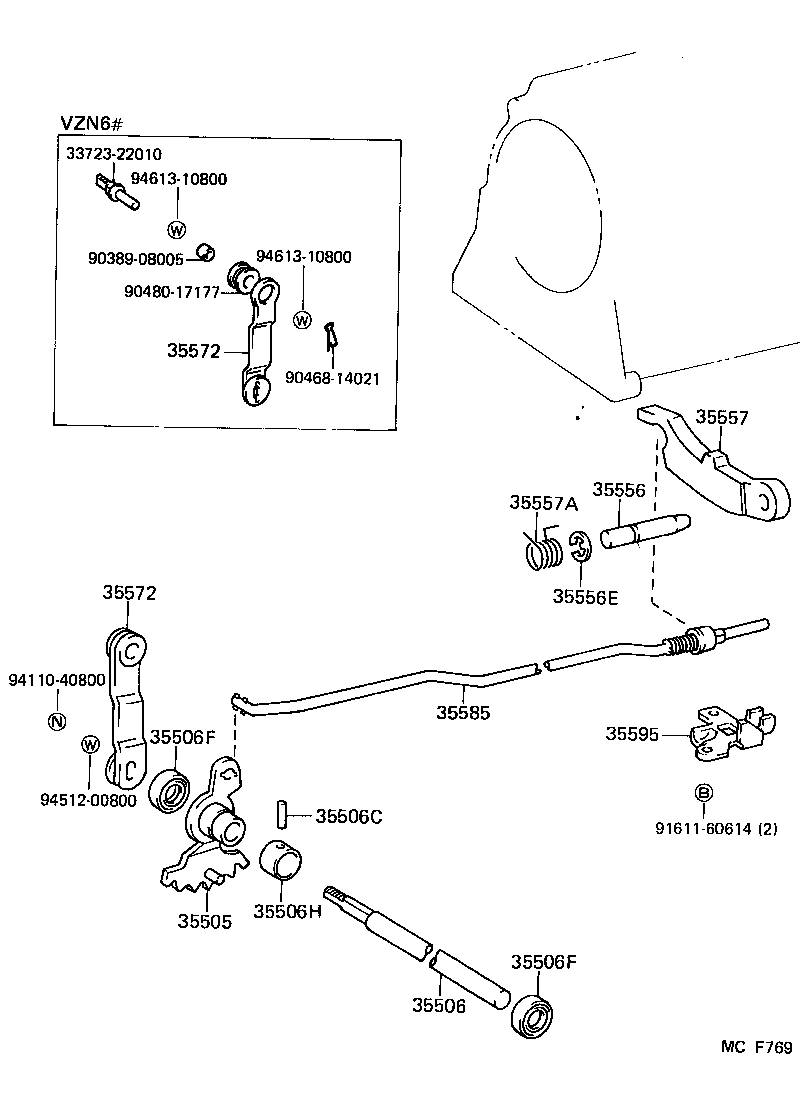

diagram 3372322010 35505 35506 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35572 35572 35585 35595 9038908005 9046814021 9048017177 9161160614 9411040800 9451200800 9461310800 9461310800
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22030

RN5#..4FC

 1
35505-30020

RN55..4FC..TBO

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-30070

RN55..4FC..TBO

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

RN5#,6#,7#,VZN6#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

RN5#..4FC

 2
90311-12002

RN55..4FC..TBO

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

RN5#..4FC

 2
90311-12002

RN55..4FC..TBO

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006

RN55..4FC..TBO

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-30020

RN55..4FC..TBO

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

RN5#,6#,7#,VZN6#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-30020

RN55..4FC..TBO

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21002

RN55..4FC..TBO

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-30060

RN55..4FC..TBO

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-30060

RN55..4FC..TBO

 1
35585 - ROD, PARKING LOCK
35501-30010

RN55..4FC..TBO

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-30010

RN55..4FC..TBO

 1
Common parts
33723-22010
90389-08005
90468-14021
90480-17177
91611-60614
94110-40800
94512-00800
94613-10800
