RN55L-PGCZA3 (1985)
Toyota 4-Runner Truck
Production
Jan 1985
-
Aug 1986
Engine
22RTEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6#..4FC

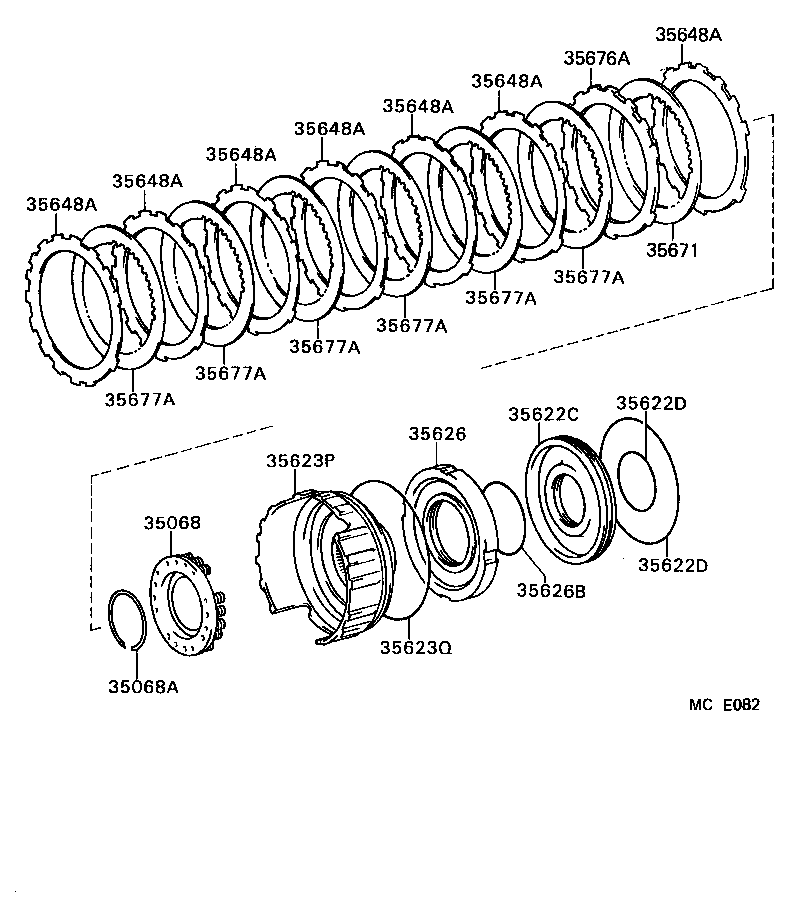

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30010 |
RN55..4FC..TBO |
5 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
RN55..4FC..TBO |
5 | ||
| 35622C - PISTON, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35622-30010 |
RN55..4FC..TBO |
5 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-57188 |
RN55..4FC..TBO INNER,ID=56.82 |
5 | ||
| 90301-99193 |
RN55..4FC..TBO OUTER,ID=105.9 |
5 | ||
| 35622D - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) | ||||
| 90301-57188 |
RN55..4FC..TBO INNER,ID=56.82 |
5 | ||
| 90301-99193 |
RN55..4FC..TBO OUTER,ID=105.9 |
5 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30010 |
RN55..4FC..TBO |
5 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99192 |
RN55..4FC..TBO |
5 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
RN55..4FC..TBO |
5 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
RN55..4FC..TBO |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30030 |
RN55..4FC..TBO |
6 | ||
| 35648-30031 |
RN55..4FC..TBO |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-30030 |
RN55..4FC..TBO T=4.0 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30080 |
RN55..4FC..TBO |
6 | ||
