RN55L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Jan 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8501- )RN55..4FC..TBO ; (8501- )RN6#,VZN6#..4FC

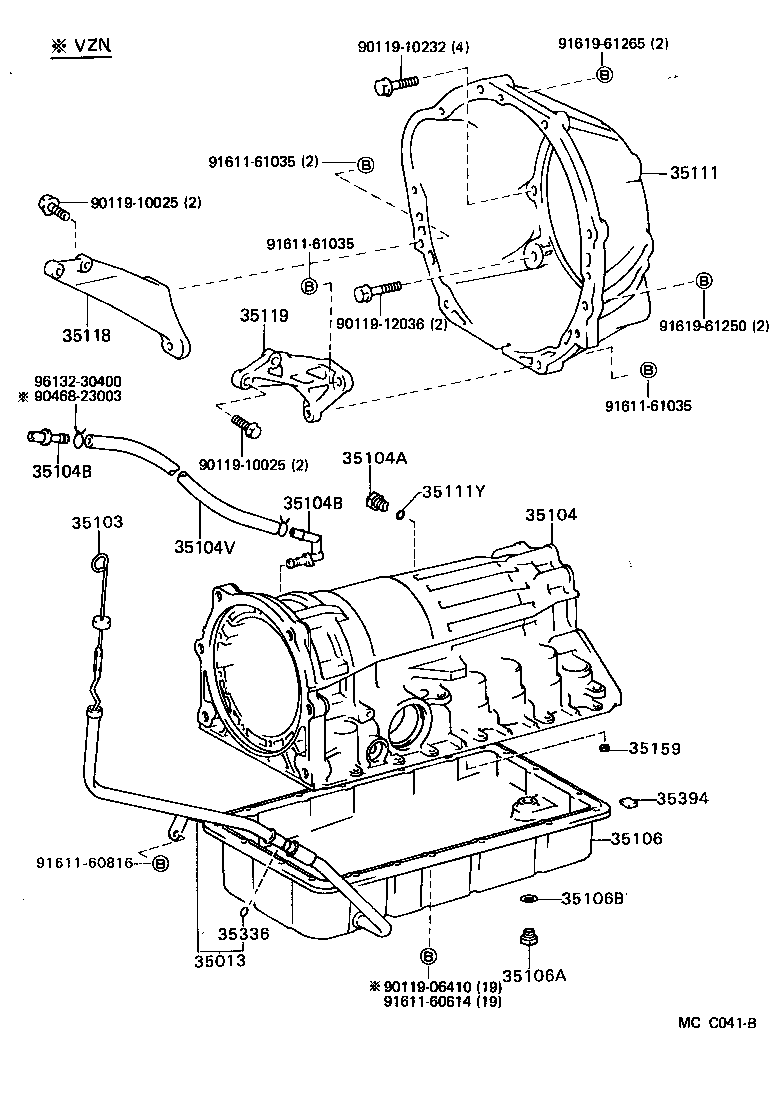

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35104B 35104V 35106 35106A 35106B 35111 35111Y 35118 35119 35159 35336 35394 9011906410 9011910025 9011910025 9011910232 9011912036 9046823003 9161160614 9161160816 9161161035 9161161035 9161161035 9161961250 9161961265 9613230400
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-35050

RN55,61,66..TBO

 1
35013-35030

RN55..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30131

RN55..4FC

 1
35103-35040

RN55..4FC..TBO

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-26020

RN5#..4FC

 1
35104-30131

RN55..4FC..TBO

 1
35104-30132

RN55..4FC..TBO

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

RN5#,6#,7#,VZN6#..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

RN5#,7#..ATM

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

RN5#,7#..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30070

RN55..4FC..TBO

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

RN5#,6#,7#,VZN6#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

RN5#,6#,7#,VZN6#..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-35030

RN55..4FC..TBO

 1
35111-35031

RN55..4FC..TBO

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

RN5#,6#,7#,VZN6#..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-35020

RN55..4FC..TBO

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-35020

RN55..4FC..TBO

 1
35159 - GASKET, BRAKE DRUM
35159-32010

RN55..4FC..TBO

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

RN5#,6#,7#,VZN6#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

RN5#,6#,7#,VZN6#..ATM

 6
Common parts
90119-06410
90119-10025
90119-10232
90119-12036
90468-23003
91611-60614
91611-60816
91611-61035
91619-61250
91619-61265
96132-30400
