RN55L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Jan 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,65,RN6#..G ; (8708-8808)G

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 33555 33584F 9161160830
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3203001

RN5#..4FC

BLACK

 1
33504-3502001

RN55..R

BLACK

 1
33504-2210101

LN51,RN5#,75..4F

BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35060

RN50..CND;LN5#,RN5#,70..G

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-35040

RN5#..4FC

 1
33530-35050

RN50..CND;LN5#,RN5#,70..G

 1
33555 - BOOT, SHIFT LEVER
33555-35060

RN5#..4FC

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

RN55..R

 1
Common parts
91611-60830

(8508- )RN55..TBO

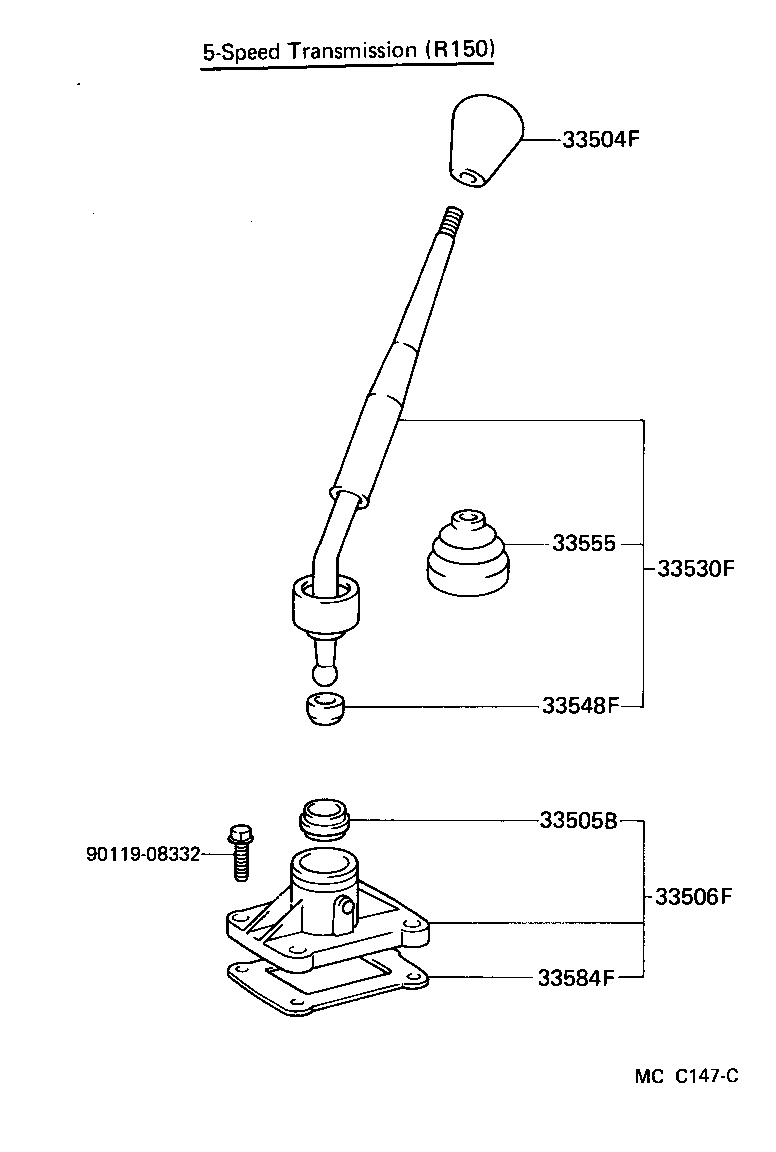

Click highlighted areas on diagram

diagram 33504F 33505B 33506F 33530F 33548F 33555 33584F 9011908332
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3203001

RN5#..4FC

BLACK

 1
33504-3502001

RN55..R

BLACK

 1
33504-2210101

LN51,RN5#,75..4F

BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35060

RN50..CND;LN5#,RN5#,70..G

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-35040

RN5#..4FC

 1
33530-35050

RN50..CND;LN5#,RN5#,70..G

 1
33555 - BOOT, SHIFT LEVER
33555-35060

RN5#..4FC

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

RN55..R

 1
Common parts
90119-08332
