RN55L-PDK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)

Click highlighted areas on diagram

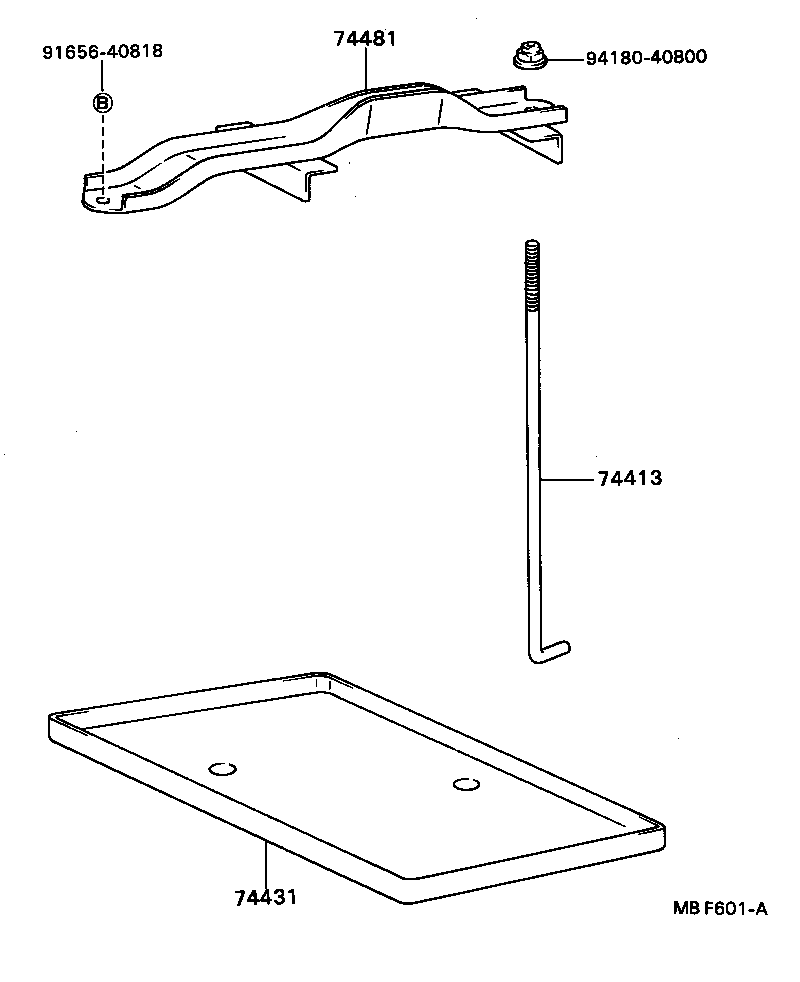

diagram 74413 74431 74481 9165640818 9418040800
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-89103

RN5#,6#,7#,VZN6#

 1
74431 - TRAY, BATTERY
74431-89107

RN55..SR5..CND;RN50,6#,7#..CND;RN55..CND..(CBR,TBO);RN55..(10T,HVY)..CND..EFI

55D23R

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-89114

RN5#,6#,7#

50D20R,55D23R,48D26R(N50)

 1
Common parts
91656-40818
94180-40800
