RN55L-PDK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)

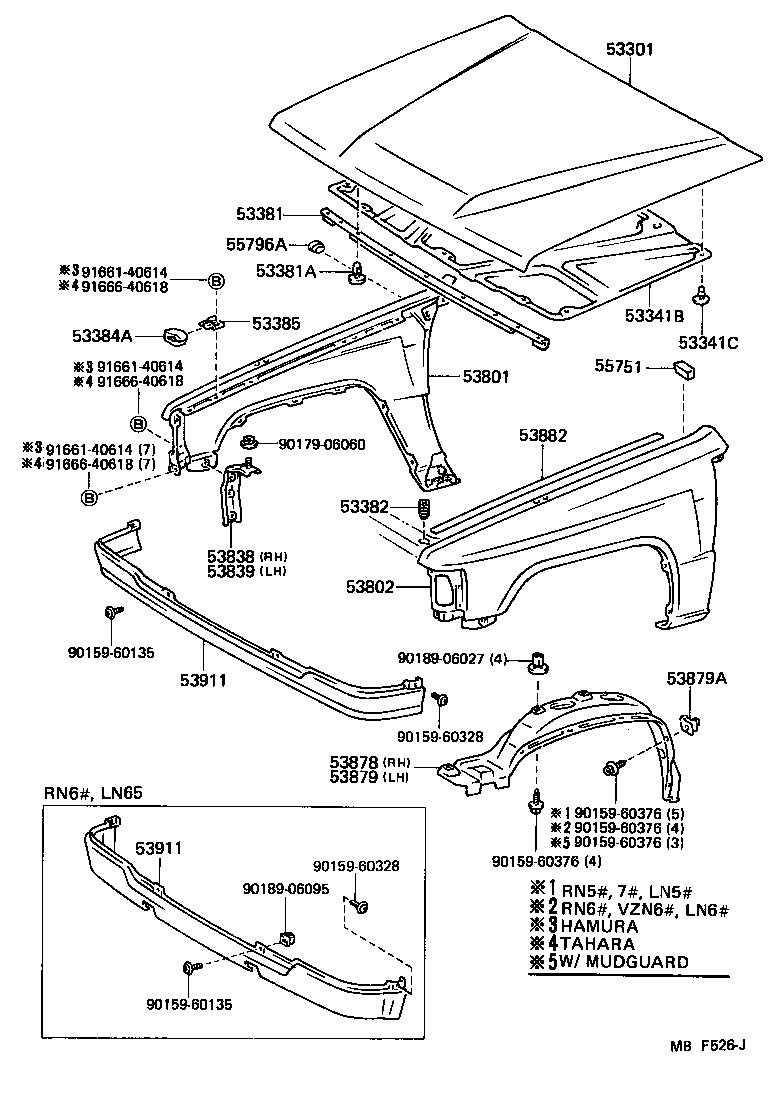

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53382 53384A 53385 53801 53802 53838 53839 53878 53879 53879A 53882 53911 53911 55751 55796A 9015960135 9015960135 9015960328 9015960328 9015960376 9015960376 9015960376 9015960376 9017906060 9018906027 9018906095 9166140614 9166140614 9166140614 9166640618 9166640618 9166640618
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-89116

LN5#,6#,RN5#,6#,7#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-89103

RN55..SR5..CND;RN55..CND..(CBR,TBO);RN55..(10T,HVY)..CND..EFI;LN56,6#,RN50,6#,7#,VZN6#..CND

 1
53382 - BUMPER, HOOD, FRONT
53382-89102

LN5#,6#,RN5#,6#,7#,VZN6#

 2
53384A - BUMPER, FENDER TO HOOD
53384-14010

LN5#,6#,RN5#,6#,7#,VZN6#

 4
53385 - RETAINER, HOOD, BUMPER
53386-14010

LN5#,6#,RN5#,6#,7#,VZN6#

LH

 2
53385-14010

LN5#,6#,RN5#,6#,7#,VZN6#

RH

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-89166

LN5#,RN5#,7#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-89158

LN5#,RN5#,7#

 1
53838 - BRACE, FRONT FENDER, RH
53835-89101

LN5#,RN5#,7#

 1
53839 - BRACE, FRONT FENDER, LH
53835-89101

LN5#,RN5#,7#

 1
53878 - LINER, FRONT FENDER, RH
53875-89103

LN5#,RN5#,7#

 1
53879 - LINER, FRONT FENDER, LH
53876-89103

LN5#,RN5#,7#

 1
53882 - PACKING, FRONT FENDER MAIN
53882-89104

LN5#,6#,RN5#,6#,7#,VZN6#

 2
53911 - PANEL, FRONT VALANCE
53911-89106

LN5#,RN5#,7#

 1
53911 - PANEL, FRONT VALANCE
53911-89106

LN5#,RN5#,7#

 1
55751 - SHIELD, COWL VENTILATOR SPLASH
55751-89104

LN5#,6#,RN5#,6#,7#,VZN6#

 2
Common parts
90159-60135
90159-60328
90159-60376
90179-06060
90189-06027
90189-06095
91661-40614
91666-40618
