RN55L-PDK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,7#

Click highlighted areas on diagram

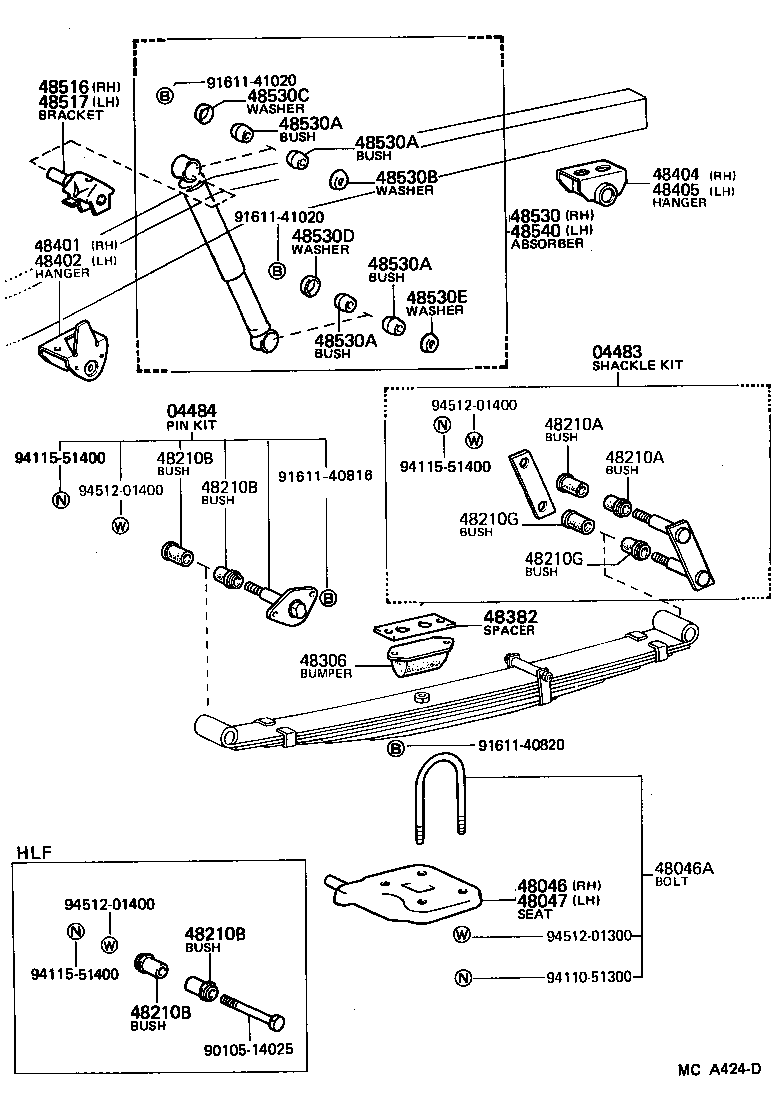

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210B 48210B 48210G 48210G 48306 48382 48401 48402 48404 48405 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010514025 9161140816 9161140820 9161141020 9161141020 9411051300 9411551400 9411551400 9411551400 9451201300 9451201400 9451201400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35040

LN5#,6#,RN5#,6#,7#,VZN6#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35080

LN5#,RN5#

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-13133

LN5#,RN5#..HLF

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35080

LN5#,RN5#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-35030

LN5#,RN5#..HLF

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35080

LN5#,RN5#..HLF

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-35080

LN5#,RN5#..HLF

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35050

LN5#,65,RN5#,6#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35050

LN5#,65,RN5#,6#

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35020

LN5#,RN5#

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35020

LN5#,RN5#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39645

LN56,RN5#,70..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48531-39635

LN5#,RN5#,70..(DLX,SR5,STD)..HLF

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

LN5#,RN5#,7#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

LN5#,RN5#,7#

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LN5#,RN5#,7#

 4
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LN5#,RN5#,7#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39645

LN56,RN5#,70..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48531-39635

LN5#,RN5#,70..(DLX,SR5,STD)..HLF

 1
Common parts
90105-14025
91611-40816
91611-40820
91611-41020
94110-51300
94115-51400
94512-01300
94512-01400

(8308- )LN5#,RN5#,70..3QT,HLF

Click highlighted areas on diagram

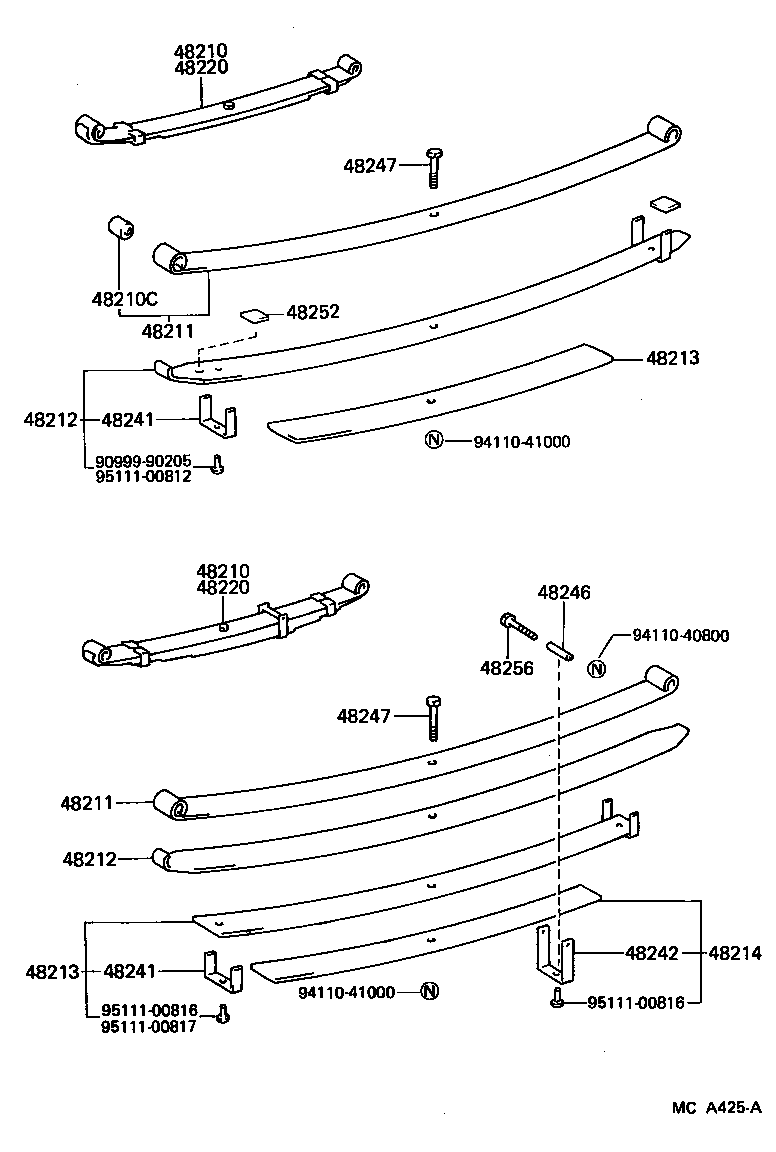

diagram 48210 48210 48210C 48211 48211 48212 48212 48213 48213 48214 48220 48220 48241 48241 48242 48246 48247 48247 48252 48256 9099990205 9411040800 9411041000 9411041000 9511100812 9511100816 9511100816 9511100817
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
48210-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48210 - SPRING ASSY, REAR RH
48210-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
48210-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14004

RN55..HLF;LN5#,6#,RN50,6#,70

 1
48211 - LEAF, REAR SPRING, NO.1
48201-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48201-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 2
48211 - LEAF, REAR SPRING, NO.1
48201-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48201-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48202-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48202-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 2
48213 - LEAF, REAR SPRING, NO.3
48213-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48213-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48213 - LEAF, REAR SPRING, NO.3
48213-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 2
48213-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48220 - SPRING ASSY, REAR LH
48210-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48210-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
48220 - SPRING ASSY, REAR LH
48210-35270

LN56,RN5#..(DLX,SR5,SRT)..HLF

SOFT RIDE SPEC

 1
48210-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
48241 - CLIP, REAR SPRING, NO.1
48241-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 4
48241 - CLIP, REAR SPRING, NO.1
48241-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 4
48247 - BOLT, REAR SPRING, CENTER
48247-35110

LN5#,RN5#..HLF

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35110

LN5#,RN5#..HLF

 2
Common parts
90999-90205
94110-40800
94110-41000
95111-00812
95111-00816
95111-00817
