RN55L-PDK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

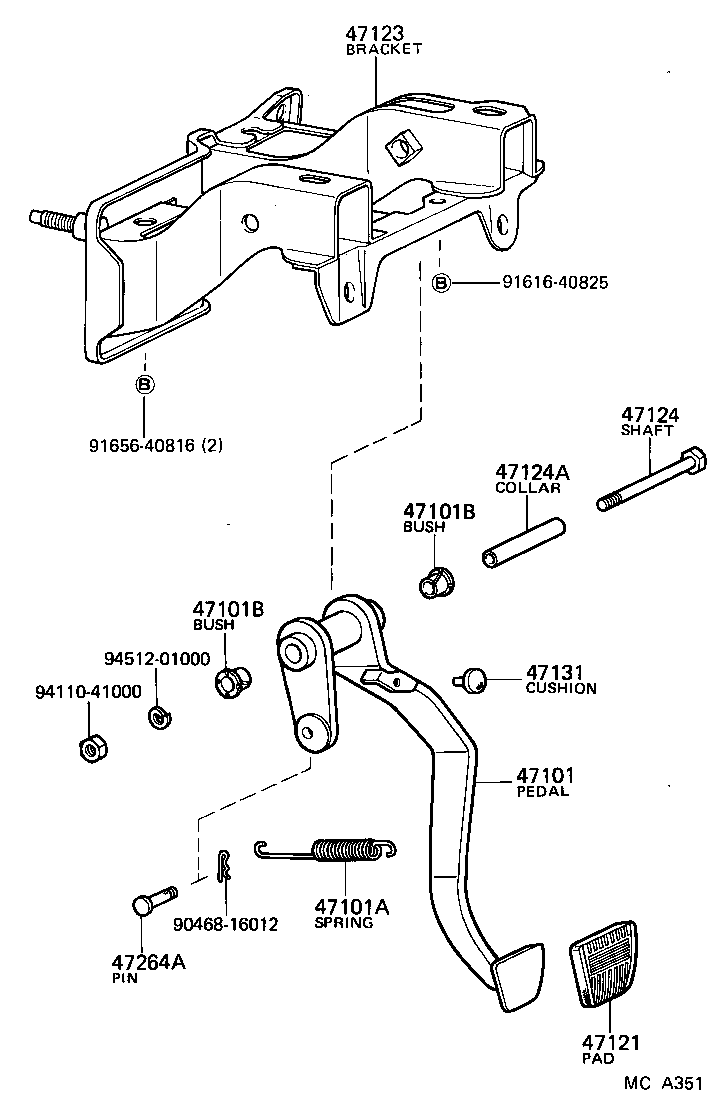

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816012 9161640825 9165640816 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35230

RN5#..4FC

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14021

LN5#,6#,RN5#,6#,VZN6#..4F,4FC,5F

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN5#,6#,RN5#,6#,7#,VZN6#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN5#,6#,RN5#,6#,7#,VZN6#

 2
47121 - PAD, BRAKE PEDAL
47121-12011

RN5#,6#,7#,VZN6#..ATM

 1
47123 - BRACKET, BRAKE PEDAL
55106-89119

RN5#..4FC

 1
47124 - SHAFT, BRAKE PEDAL
90101-10480

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-35030

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90468-16012
91616-40825
91656-40816
94110-41000
94512-01000
