RN55L-PDK (1983)
Toyota 4-Runner Truck
Production
Aug 1983
-
Aug 1984
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

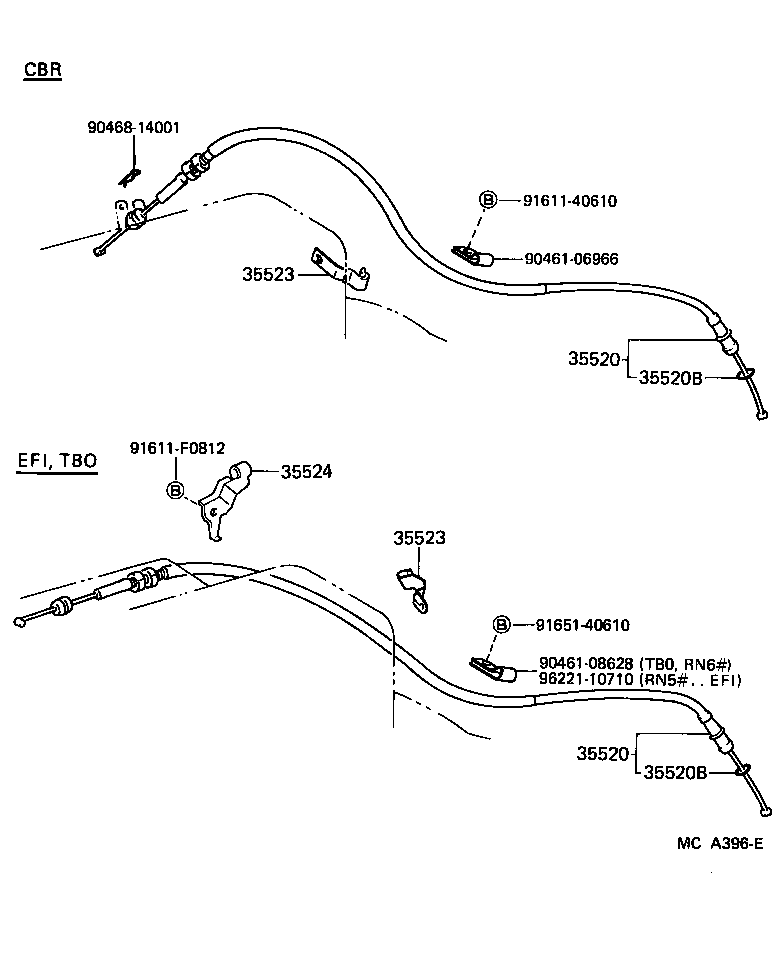

(8308- )RN5#,6#,7#..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-35030 |
RN5#,70..ATM..CBR |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-35030 |
RN5#,70..ATM..CBR |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
RN5#,6#,7#,VZN6#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
RN5#,6#,7#,VZN6#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-20021 |
RN5#,70..ATM..CBR |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-20021 |
RN5#,70..ATM..CBR |
1 | ||
| Common parts | ||||
| 90461-06966 | ||||
| 90461-08628 | ||||
| 90468-14001 | ||||
| 91611-40610 | ||||
| 91611-F0812 | ||||
| 91651-40610 | ||||
| 96221-10710 | ||||

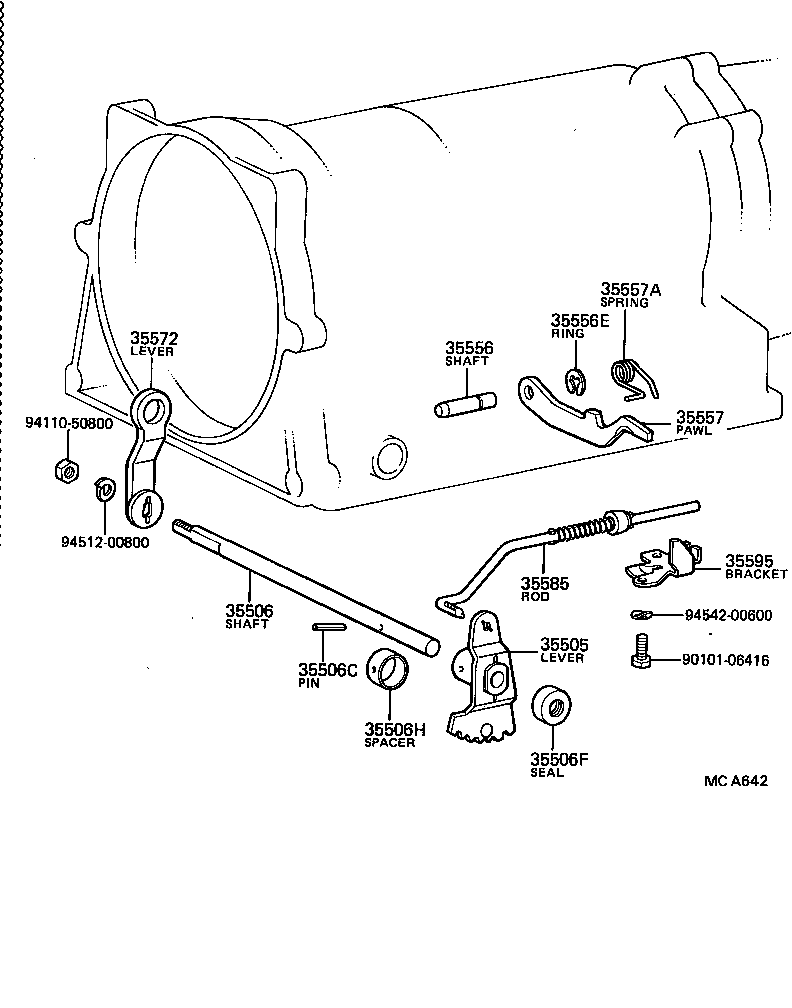

(8308- )RN5#,7#..ATM..CBR,EFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22030 |
RN5#..4FC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-40010 |
RN5#..4FC..(CBR,EFI) |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
RN5#,6#,7#,VZN6#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
RN5#..4FC |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
RN5#,6#,7#,VZN6#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-26010 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-22040 |
RN5#..4FC..(CBR,EFI) |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-26020 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-40010 |
RN5#,7#..ATM..(CBR,EFI) |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||
