RN55L-PDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1985
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8403- )

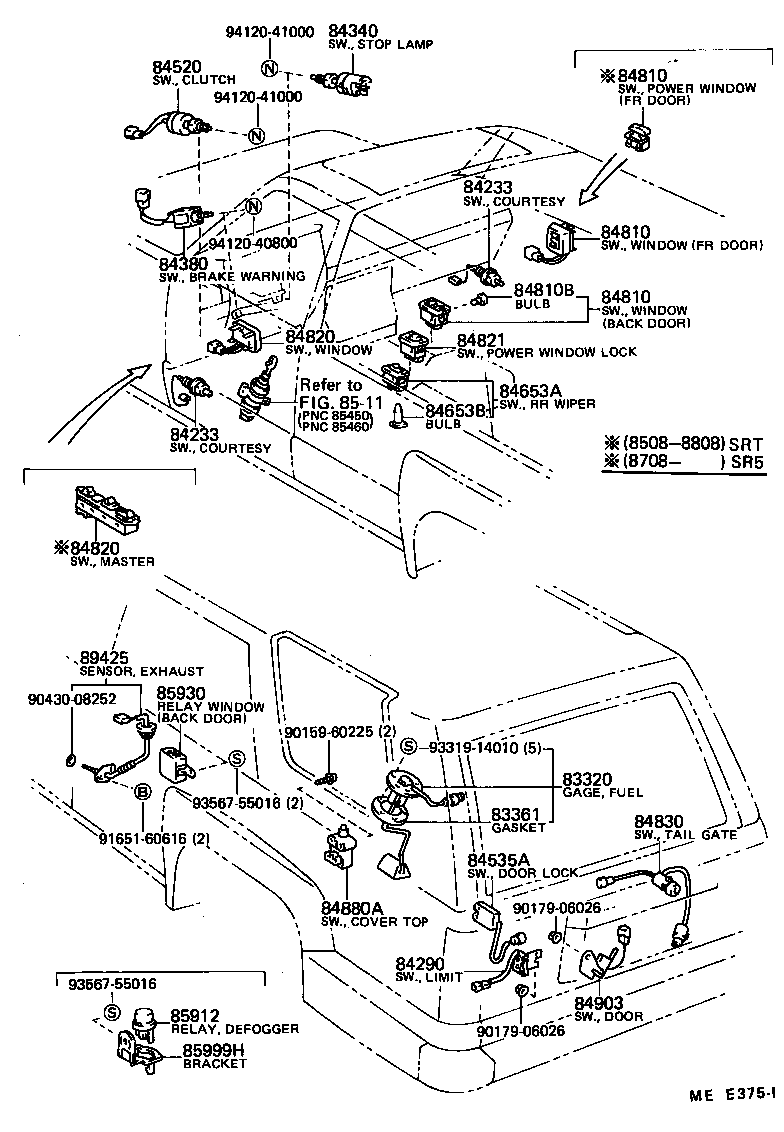

Click highlighted areas on diagram

diagram 83320 83361 84233 84233 84290 84340 84380 84520 84535A 84653A 84653B 84810 84810 84810 84810B 84820 84820 84821 84830 84880A 84903 8511 85912 85930 85999H 89425 9015960225 9017906026 9017906026 9043008252 9165160616 9331914010 9356755016 9356755016 9412040800 9412041000 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-39465

LN56,RN55

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LN5#,6#,RN5#,6#,7#,VZN6#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-20080

LN5#,6#,RN5#,6#,7#,VZN6#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-20080

LN5#,6#,RN5#,6#,7#,VZN6#

 2
84340 - SWITCH ASSY, STOP LAMP
84340-32010

LN5#,65,RN5#,6#

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-35010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90159-60225
90179-06026
90430-08252
91651-60616
93319-14010
93567-55016
94120-40800
94120-41000
Linked diagrams
8511
