RN55L-PDCA3 (1983)
Toyota 4-Runner Truck
Production
Sep 1983
-
Aug 1985
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8501- )

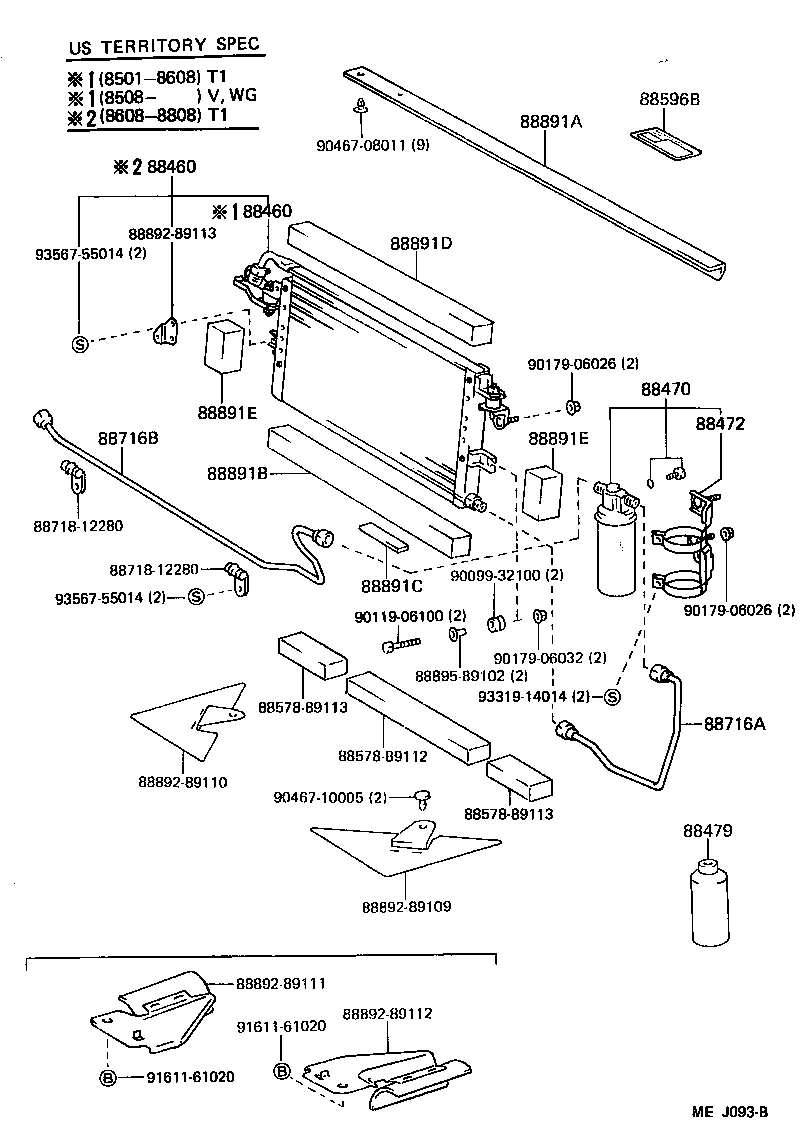

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN56,6#,RN5#,6#,7#,VZN6#..T1 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN56,6#,RN5#,6#,7#,VZN6#..T1 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
LN56,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89109 |
LN56,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LN56,6#,RN5#,6#,7#,VZN6# 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN56,6#,RN5#,6#,7#,VZN6#..T1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89133 |
LN56,65,RN5#,6#..T1 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN56,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN56,65,RN5#,6#..T1 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89107 |
LN56,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89101 |
RN5#,6#,7# |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN56,65,RN5#,7#..CBR,DSL,EFI,TBO |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN56,65,RN5#,7#..CBR,DSL,EFI,TBO |
2 | ||
| Common parts | ||||
| 88578-89112 | ||||
| 88578-89113 | ||||
| 88718-12280 | ||||
| 88892-89109 | ||||
| 88892-89110 | ||||
| 88892-89111 | ||||
| 88892-89112 | ||||
| 88892-89113 | ||||
| 88895-89102 | ||||
| 90099-32100 | ||||
| 90119-06100 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 90467-10005 | ||||
| 91611-61020 | ||||
| 93319-14014 | ||||
| 93567-55014 | ||||
