RN55L-PDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

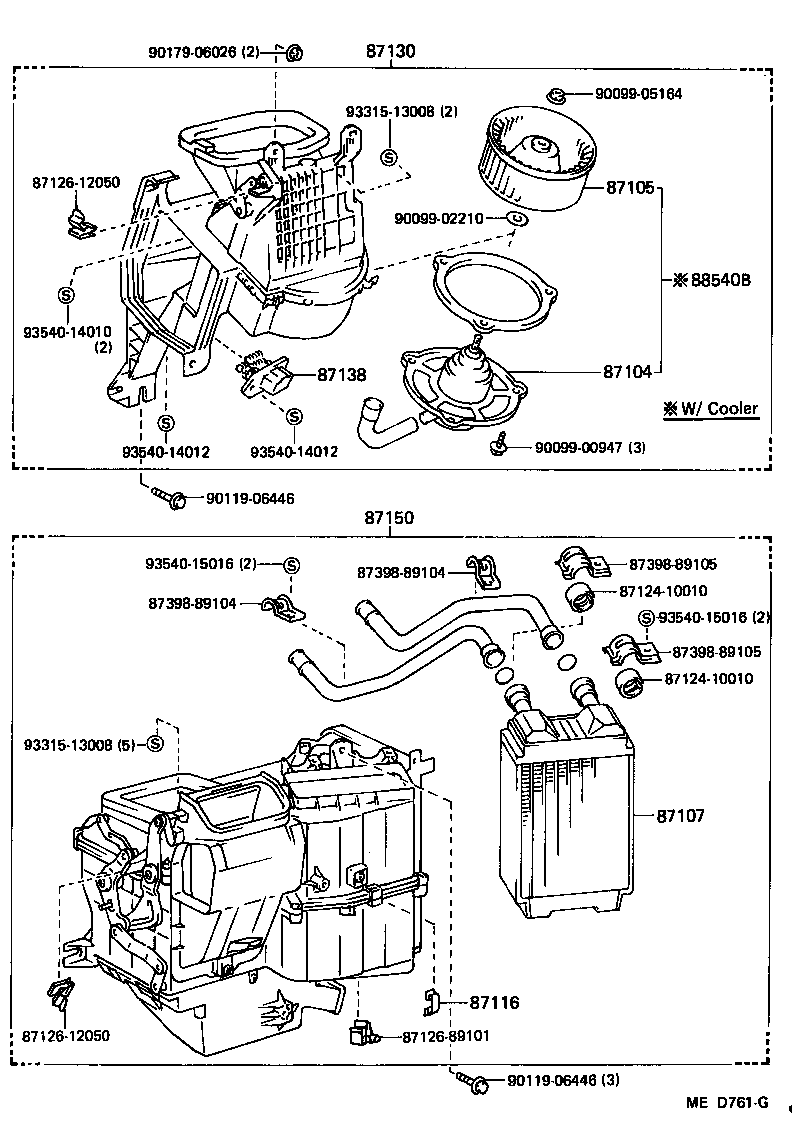

Click highlighted areas on diagram

diagram 87104 87105 87107 87116 8712410010 8712410010 8712612050 8712612050 8712689101 87130 87138 87150 8739889104 8739889104 8739889105 8739889105 88540B 9009900947 9009902210 9009905164 9011906446 9011906446 9017906026 9331513008 9331513008 9354014010 9354014012 9354014012 9354015016 9354015016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-89111

RN55..STD..HLF..CND..EFI;LN5#,65,RN5#,6#,7#,VZN6#..T1..USA

STD HEATER OR *BV ONLY

 1
87104-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

HEAVY HEATER

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30010

RN55..STD..HLF..CND..EFI;LN5#,65,RN5#,6#,7#,VZN6#..T1..USA

STD HEATER OR *BV ONLY

 1
87105-14020

LN5#,6#,RN5#,6#,7#,VZN6#

HEAVY HEATER

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89111

LN5#,6#,RN5#,6#,7#..T1

HEAVY HEATER

 1
87107-89110

RN55..STD..HLF..CND..EFI;LN5#,65,RN5#,6#,7#..T1..USA

STD HEATER

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-89106

LN5#,65,RN5#,6#,7#..T1..USA

STD HEATER OR *BV

 1
87130-89108

LN5#,6#,RN5#,6#,7#..T1

HEAVY HEATER

 1
87138 - RESISTOR, HEATER BLOWER
87138-89104

LN5#,65,RN5#,6#,7#..T1..USA

STD HEATER OR *BV

 1
87138-89103

LN5#,6#,RN5#,6#,7#..T1

HEAVY HEATER

 1
88635-89103

LN56,6#,RN5#,6#,7#

W/COOLER

 1
87150 - RADIATOR ASSY, HEATER
87150-89112

LN5#,65,RN5#,6#,7#..T1..USA

STD HEATER

 1
87150-89106

LN5#,6#,RN5#,6#,7#..T1

HEAVY HEATER

 1
88540B - MOTOR ASSY, W/FAN
88540-89101

RN55..STD..HLF..CND..EFI;LN56,65,RN5#,6#,7#..T1..USA

STD HEATER OR *BV,W/COOLER

 1
Common parts
87124-10010
87126-12050
87126-89101
87398-89104
87398-89105
90099-00947
90099-02210
90099-05164
90119-06446
90179-06026
93315-13008
93540-14010
93540-14012
93540-15016

(8403- )

Click highlighted areas on diagram

diagram 8401 87104R 87105R 87107R 87120 87120B 87123 87138R 87240H 87431B 8889587603 9009900905 9009905164 9011906126 9161640616 9331914006 9351054012
Part # Description Qty Price
Common parts
88895-87603
90099-00905
90099-05164
90119-06126
91616-40616
93319-14006
93510-54012
Linked diagrams
8401

(8308-8708)

Click highlighted areas on diagram

diagram 87116 8712612050 88910 9009900968 9011906446 9331513008
Part # Description Qty Price
88910 - VENTILATOR ASSY, BOOST
88910-89106

LN65,RN5#,6#..(3QT,HLF)..USA

 1
Common parts
87126-12050
90099-00968
90119-06446
93315-13008
