RN55L-PDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,7#

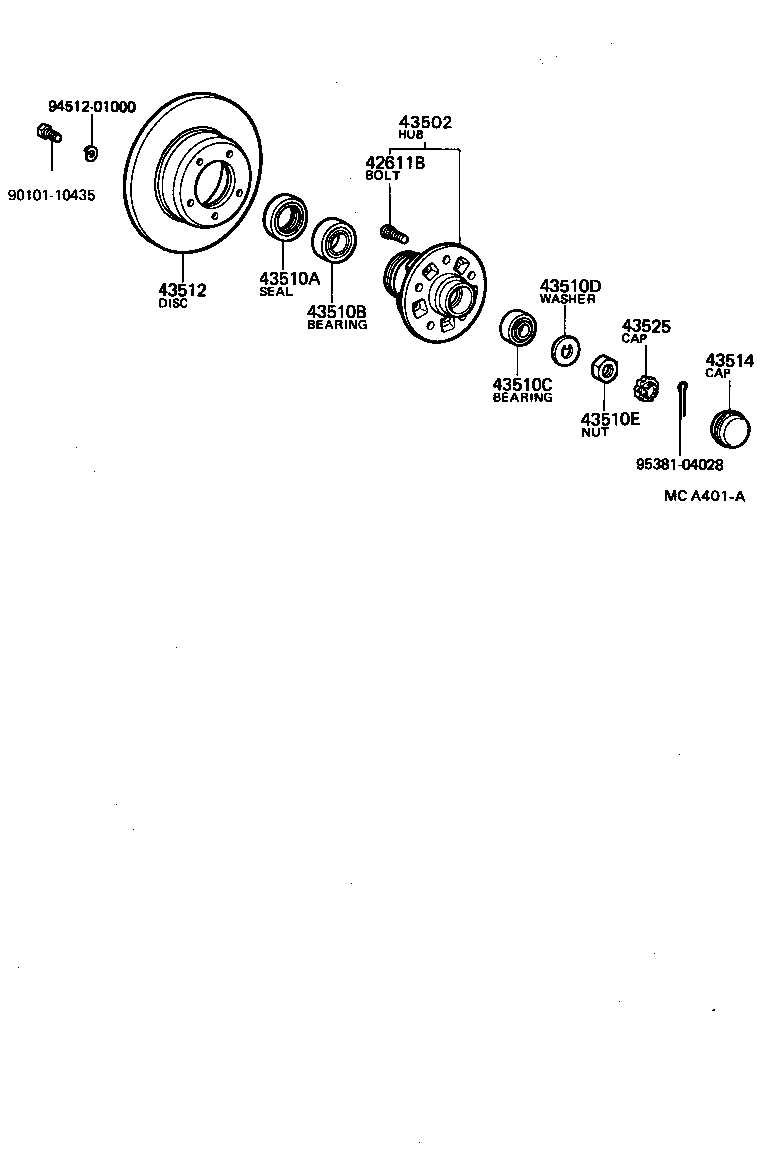

Click highlighted areas on diagram

diagram 42611B 43502 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010110435 9451201000 9538104028
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02035

LN5#,RN5#,7#

 10
43502 - HUB SUB-ASSY, FRONT AXLE
43502-35020

LN5#,RN5#,7#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

LN5#,RN5#,7#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34039

LN5#,RN5#,7#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21065

LN5#,RN5#,7#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

LN5#,RN5#,7#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

LN5#,RN5#,7#

 2
43512 - DISC, FRONT
43512-35080

LN5#,RN5#..HLF

 2
43512-35080

LN5#,RN5#

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

LN5#,RN5#,7#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

LN5#,RN5#,7#

 2
Common parts
90101-10435
94512-01000
95381-04028
