RN55L-PDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RN5#,7#..ATM..CBR,EFI

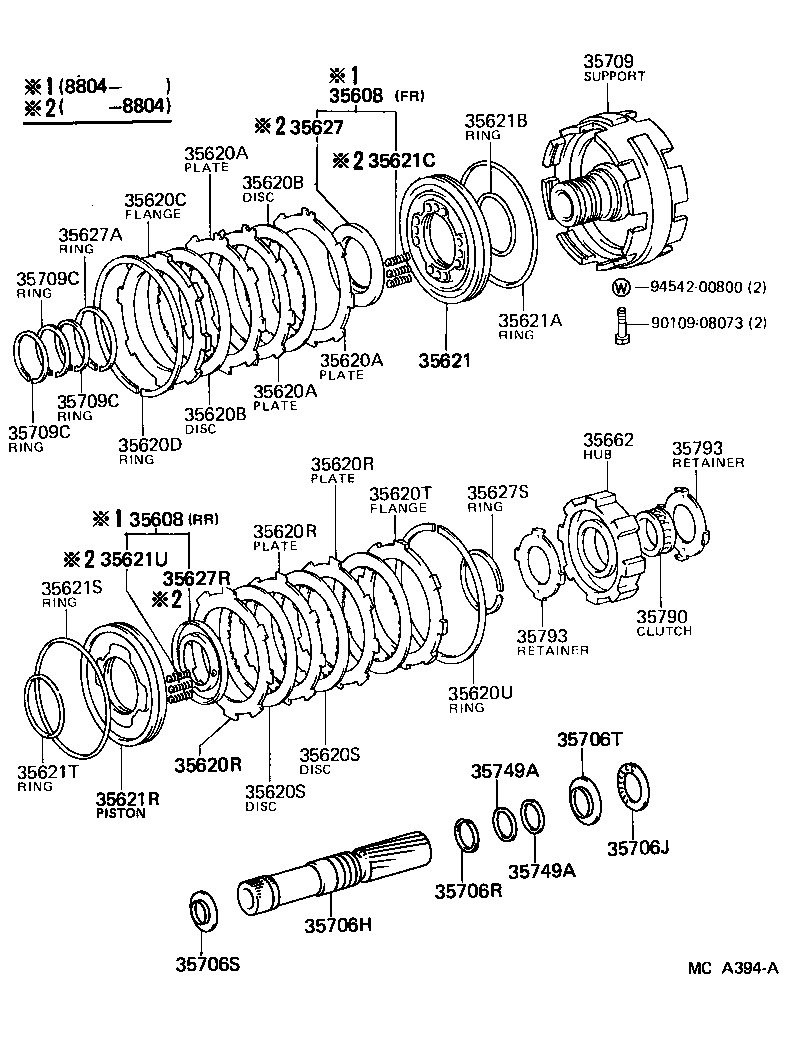

Click highlighted areas on diagram

diagram 35608 35608 35620A 35620A 35620A 35620B 35620B 35620C 35620D 35620R 35620R 35620R 35620S 35620S 35620T 35620U 35621 35621A 35621B 35621C 35621R 35621S 35621T 35621U 35627 35627A 35627R 35627S 35662 35706H 35706J 35706R 35706S 35706T 35709 35709C 35709C 35709C 35749A 35749A 35790 35793 35793 9010908073 9454200800
Part # Description Qty Price
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

RN5#..4FC..(CBR,EFI)

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

RN5#..4FC..(CBR,EFI)

 3
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22090

RN5#..4FC..(CBR,EFI)

 3
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22050

RN5#..4FC..(CBR,EFI)

 2
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22050

RN5#..4FC..(CBR,EFI)

 2
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35620D - RING (FOR BRAKE)
90521-99139

RN5#,7#..ATM..(CBR,EFI)

 1
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

RN5#,7#..ATM..(CBR,EFI)

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

RN5#,7#..ATM..(CBR,EFI)

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35648-30020

RN5#,7#..ATM..(CBR,EFI)

 3
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-30020

RN5#,7#..ATM..(CBR,EFI)

 3
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-30020

RN5#,7#..ATM..(CBR,EFI)

 3
35620T - FLANGE, CLUTCH (FOR REAR BRAKE)
34625-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35620U - RING (FOR REAR BRAKE)
90521-99139

RN5#,7#..ATM..(CBR,EFI)

 1
35621 - PISTON, BRAKE, NO.1
35621-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99007

RN5#,7#..ATM..(CBR,EFI)

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-57188

RN5#,7#..ATM..(CBR,EFI)

 1
35621C - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

RN5#,7#..ATM..(CBR,EFI)

 12
35621R - PISTON, BRAKE (FOR REAR BRAKE)
35624-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35621S - RING (FOR REAR BRAKE PISTON OUTER)
90301-99192

RN5#,7#..ATM..(CBR,EFI)

 1
35621T - RING (FOR REAR BRAKE PISTON INNER)
90301-57188

RN5#,7#..ATM..(CBR,EFI)

 1
35621U - SPRING (FOR REAR BRAKE PISTON RETURN)
90501-10671

RN5#,7#..ATM..(CBR,EFI)

 1
35627 - SEAT, BRAKE RETURN SPRING
35627-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

RN5#,7#..ATM..(CBR,EFI)

 1
35627R - SEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)
35627-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35627S - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
90520-52262

RN5#,7#..ATM..(CBR,EFI)

 1
35662 - HUB, BRAKE
35662-30010

RN5#,7#..ATM..(CBR,EFI)

 1
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-30040

RN5#,7#..ATM..(CBR,EFI)

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-23012

RN5#,7#..ATM..(CBR,EFI)

 1
35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
90520-34001

RN5#,7#..ATM..(CBR,EFI)

 1
35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35789-22030

RN5#,7#..ATM..(CBR,EFI)

 1
35706T - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35789-22010

RN5#,7#..ATM..(CBR,EFI)

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-30041

RN5#,7#..ATM..(CBR,EFI)

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

RN5#,7#..ATM..(CBR,EFI)

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

RN5#,7#..ATM..(CBR,EFI)

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-16010

RN5#,7#..ATM..(CBR,EFI)

 1
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-30010

RN5#,7#,VZN6#..ATM..(CBR,EFI)

 2
35749A - RING, SUN GEAR SHAFT OIL SEAL
35749-30010

RN5#,7#,VZN6#..ATM..(CBR,EFI)

 2
35790 - CLUTCH ASSY, 1 WAY
35791-30020

RN5#,7#..ATM..(CBR,EFI)

 1
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

RN5#,7#..ATM..(CBR,EFI)

 2
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

RN5#,7#..ATM..(CBR,EFI)

 2
Common parts
90109-08073
94542-00800
