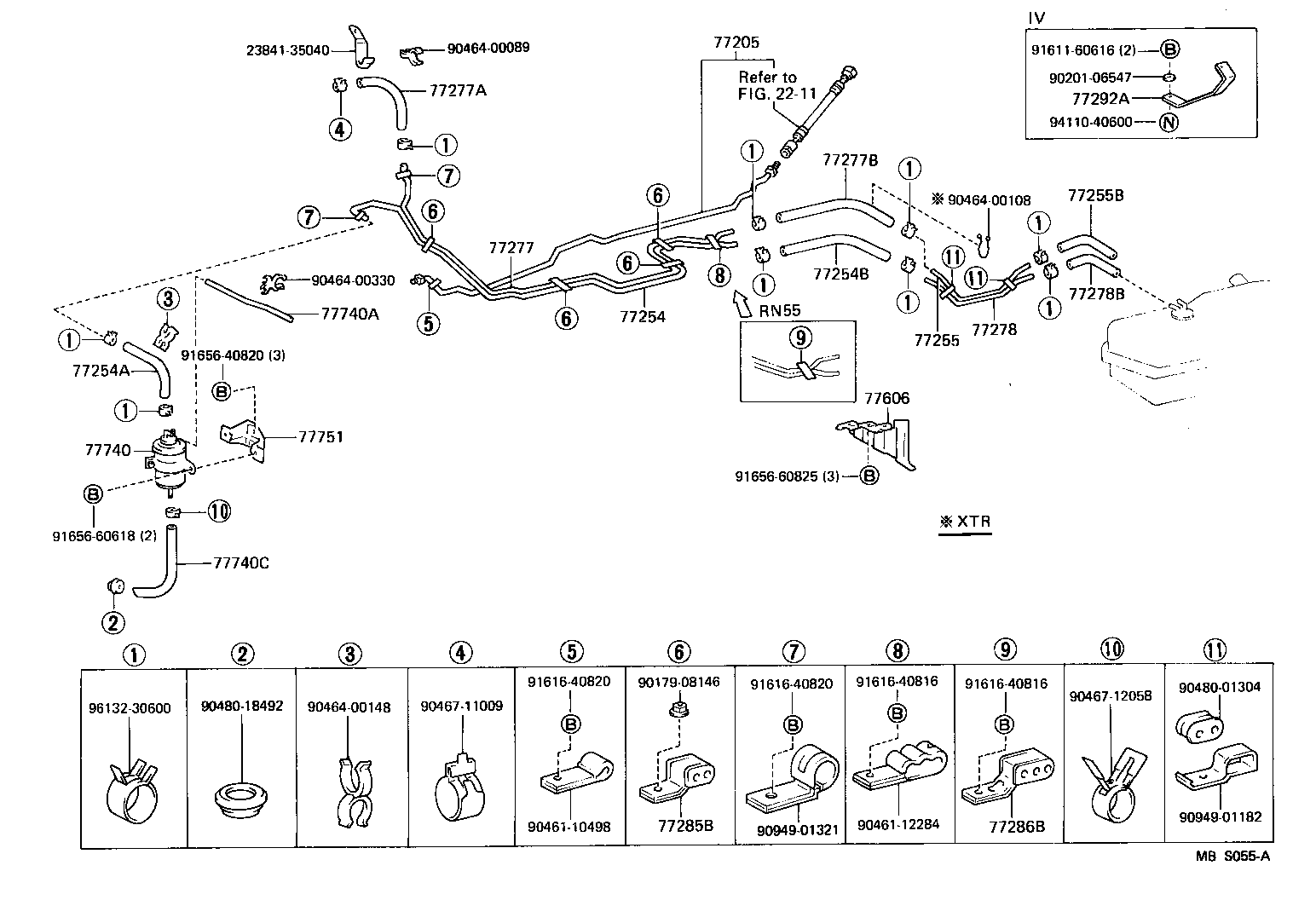

RN55L-MSEA (1984)
Toyota 4-Runner Truck
(8308-8808)T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 61709-89101 |
LN5#,RN5#,70..CBU |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16010 |
RN5#,6#,7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
RN5#,6#,7#,VZN6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35220 |
RN55..USA..(EFI,TBO) 65LITER |
1 | ||
| 77100-35430 |
RN55..USA..(EFI,TBO) COLD SPEC,65LITER |
1 | ||
| 77100-35221 |
RN55,75..USA..EFI 65LITER |
1 | ||
| 77100-35431 |
RN55,75..USA..EFI COLD SPEC,65LITER |
1 | ||
| 77001-35929 |
RN55,75..EFI,TBO 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35220 |
RN55..USA..(EFI,TBO) 65LITER |
1 | ||
| 77100-35430 |
RN55..USA..(EFI,TBO) COLD SPEC,65LITER |
1 | ||
| 77100-35221 |
RN55,75..USA..EFI 65LITER |
1 | ||
| 77100-35431 |
RN55,75..USA..EFI COLD SPEC,65LITER |
1 | ||
| 77001-35929 |
RN55,75..EFI,TBO 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35220 |
RN55..USA..(EFI,TBO) 65LITER |
1 | ||
| 77100-35430 |
RN55..USA..(EFI,TBO) COLD SPEC,65LITER |
1 | ||
| 77100-35221 |
RN55,75..USA..EFI 65LITER |
1 | ||
| 77100-35431 |
RN55,75..USA..EFI COLD SPEC,65LITER |
1 | ||
| 77001-35929 |
RN55,75..EFI,TBO 65LITER |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 L=340 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35180 |
RN5#,70..CBU |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35110 |
LN5#,RN5#,70..CBU |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-89101 |
LN5#,RN5#,70..CBU |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-35010 |
LN5#,65,RN5#,6#,70,VZN6#..T1..CBU |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-89103 |
LN5#,RN5#,70..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35050 |
LN5#,RN5#,7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35050 |
LN5#,RN5#,7# |
1 | ||
| Common parts | ||||
| 90159-60221 | ||||
| 90170-08194 | ||||
| 90460-22001 | ||||
| 90460-65004 | ||||
| 90461-08323 | ||||
| 90480-01137 | ||||
| 90949-01299 | ||||
| 91631-40616 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 91656-60825 | ||||
| 93319-14010 | ||||
| 93385-15012 | ||||
(8308-8808)RN5#,75..EFI,TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-35030 |
RN55..EFI,TBO |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-35120 |
RN55,65 |
1 | ||
| 77261-35200 |
RN55,65 |
1 | ||
| 77261-35180 |
RN55,65 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
RN5#,6#,75..EFI,TBO *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 77209-35130 |
RN55 |
1 | ||
| 77209-35170 |
RN55 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-35250 |
RN55,65..EFI,TBO |
1 | ||
| 77255-35320 |
RN55,65..EFI,TBO |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-35040 |
RN5#,6#,75..EFI,TBO *H,L=600 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12108 |
LN56,RN55 *H,L=590 |
1 | ||
| 90445-12159 |
LN56,RN55 |
1 | ||
| 90445-12167 |
LN56,RN55 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35030 |
RN5#,6#,7#,VZN6#..T1..(EFI,TBO) |
4 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-35050 |
RN55,65,66,VZN66 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35050 |
LN5#,RN5#,7# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35180 |
RN5#,6#,75..EFI,TBO |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
RN5#..EFI *H,L=950,MARK=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77754-35150 |
RN5#,6#..EFI,TBO L=500 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35040 |
RN5#,6#,75..EFI,TBO |
1 | ||
| Common parts | ||||
| 23841-35040 | ||||
| 90179-08146 | ||||
| 90201-06547 | ||||
| 90461-10498 | ||||
| 90461-12284 | ||||
| 90464-00089 | ||||
| 90464-00108 | ||||
| 90464-00148 | ||||
| 90464-00330 | ||||
| 90467-11009 | ||||
| 90467-12058 | ||||
| 90480-01304 | ||||
| 90480-18492 | ||||
| 90949-01182 | ||||
| 90949-01321 | ||||
| 91611-60616 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 91656-40820 | ||||
| 91656-60618 | ||||
| 91656-60825 | ||||
| 94110-40600 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
