RN55L-MSEA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1986
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)LN5#,RN5#,7#..DLX,SR5,STD ; (8608-)LN56,RN5#,7#..DLX,STD

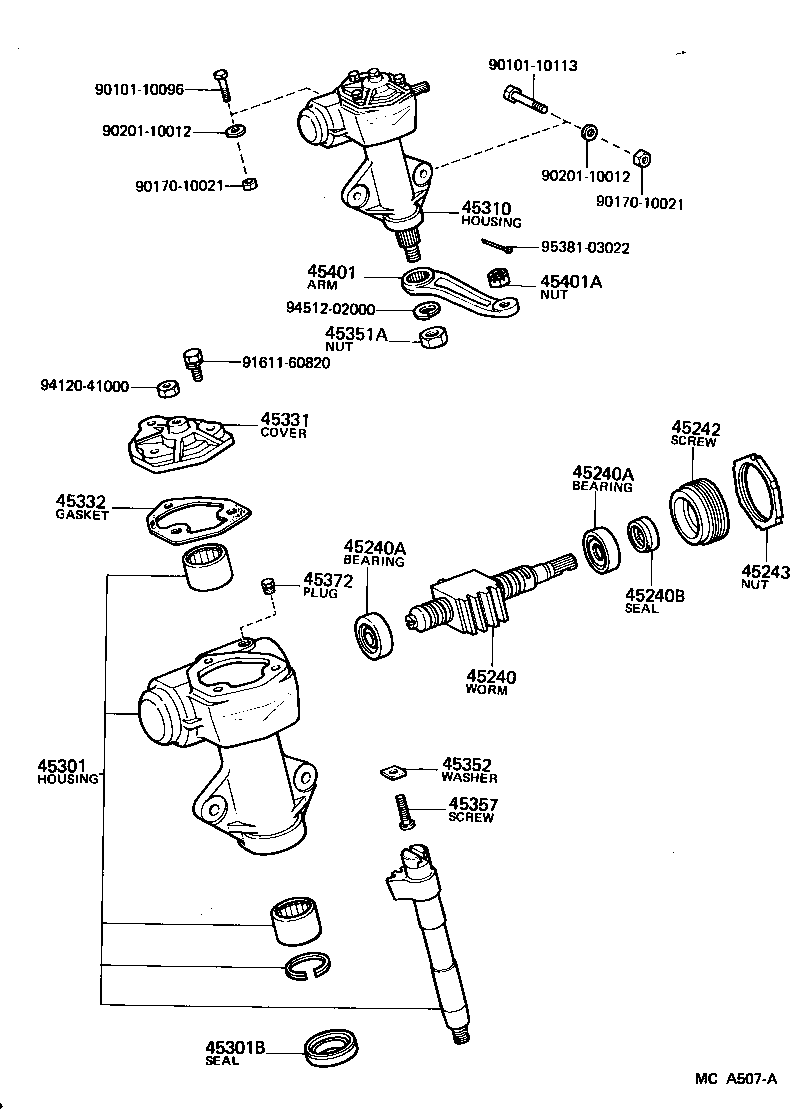

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110096 9010110113 9017010021 9017010021 9020110012 9020110012 9161160820 9412041000 9451202000 9538103022
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-35050

LN5#,RN5#..DLX,SR5,STD

 1
45240-35051

LN5#,RN5#,7#..DLX,SR5,STD

 1
45240A - BEARING(FOR STEERING WORM)
90369-19001

LN5#,RN5#,7#..DLX,SR5,STD

 2
45240A - BEARING(FOR STEERING WORM)
90369-19001

LN5#,RN5#,7#..DLX,SR5,STD

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19008

LN5#,RN5#,7#..DLX,SR5,STD

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-28030

LN5#,RN5#,7#..DLX,SR5,STD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-28010

LN5#,RN5#,7#..DLX,SR5,STD

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-35160

LN5#,RN5#..DLX,SR5,STD

 1
45301-35161

LN5#,RN5#,7#..DLX,SR5,STD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-34001

LN5#,RN5#,7#..DLX,SR5,STD

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-35150

LN5#,RN5#,7#..DLX,SR5,STD

 1
45331 - COVER, SECTOR SHAFT END
45304-35060

LN5#,RN5#,7#..DLX,SR5,STD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-28020

LN5#,RN5#,7#..DLX,SR5,STD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

LN5#,RN5#,7#..DLX,SR5,STD

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-20010

LN5#,RN5#,7#..DLX,SR5,STD

T=2.00,T=2.00

 1
45356-20010

LN5#,RN5#,7#..DLX,SR5,STD

T=2.15,T=2.15

 1
45355-20010

LN5#,RN5#,7#..DLX,SR5,STD

T=2.10,T=2.10

 1
45354-20010

LN5#,RN5#,7#..DLX,SR5,STD

T=2.05,T=2.05

 1
45353-20010

LN5#,RN5#,7#..DLX,SR5,STD

T=1.95,T=1.95

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-28020

LN5#,RN5#,7#..DLX,SR5,STD

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

LN5#,RN5#,7#..DLX,SR5,STD

 1
45401 - ARM SUB-ASSY, PITMAN
45411-35230

LN5#,RN5#,7#..DLX,SR5,STD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042

LN5#,RN5#,7#..DLX,SR5,STD

 1
Common parts
90101-10096
90101-10113
90170-10021
90201-10012
91611-60820
94120-41000
94512-02000
95381-03022
