RN55L-MSCZA3 (1987)

Toyota 4-Runner Truck

Production Aug 1987 - Aug 1988
Engine 22RTEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)22R,22REC

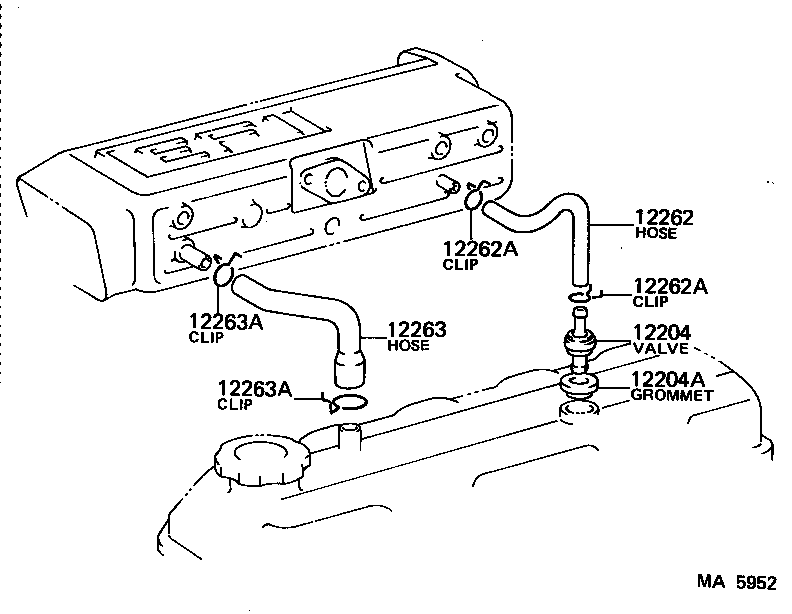

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 12263A 12263A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-35020

22REC,22RTEC..RN5#,6#

 1
12204-35030

22R..RN5#,6#,70

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

22R#..RN5#,6#,7#

 1
12262 - HOSE, VENTILATION, NO.2
12261-38011

22R..RN5#,6#,70

 1
12261-35010

22REC,22RTEC..RN5#,6#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

22R#..RN5#,6#,7#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

22R#..RN5#,6#,7#

 2
12263 - HOSE, VENTILATION, NO.3
12262-35010

22R..RN5#,6#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-15006

22REC,22RTEC..RN5#,6#,7#

SURGE TANK SIDE

 1
90467-19003

22REC,22RTEC..RN5#,6#,7#

HEAD COVER SIDE

 1
90467-19003

22R..RN5#,6#,70

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-15006

22REC,22RTEC..RN5#,6#,7#

SURGE TANK SIDE

 1
90467-19003

22REC,22RTEC..RN5#,6#,7#

HEAD COVER SIDE

 1
90467-19003

22R..RN5#,6#,70

 1
