Toyota 4-runner truck RN55 VACUUM PIPING

RN55L-MSCEA (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1988

Engine 22REC

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

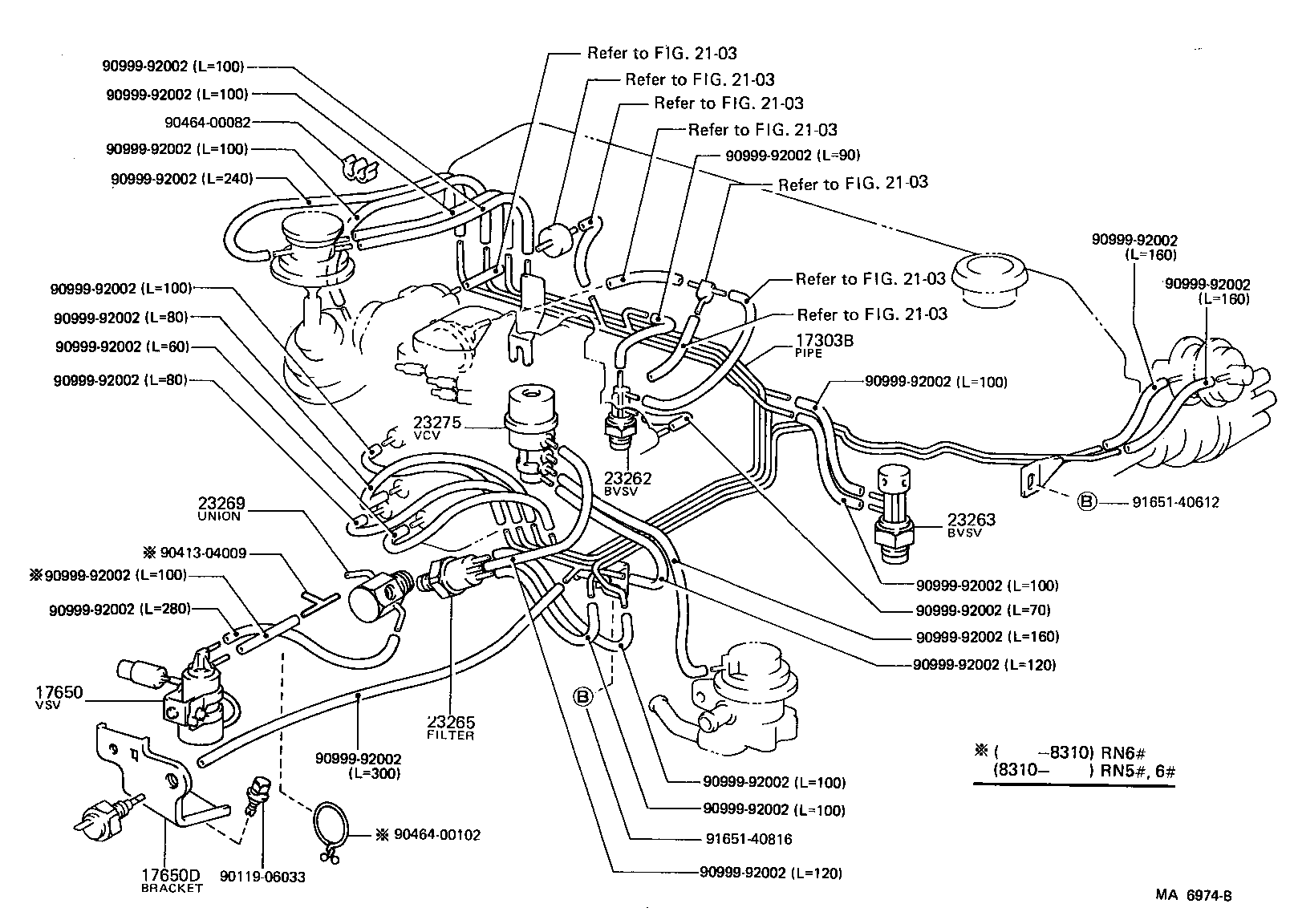

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23269 - UNION(FOR GAS FILTER)
90404-54031	22R..RN5#,6#..MTM..(3QT,HLF)	08/1983 - 08/1984	1
90404-54031	22R..RN5#,6#..MTM	08/1984 - 03/1985	1
90404-54032	22R..RN5#..W..USA CALIFORNIA SPEC	09/1985 - 08/1986	1
90404-54032	22R..RN5#,6#,70..MTM	03/1985 - 09/1985	1
90404-54032	22R..RN5#,6#,70	09/1985 - 08/1988	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-03104	22R..RN5#,6#,70	08/1984 - 08/1987	1
Common parts
90119-06033
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
91651-40816
Linked diagrams
2103

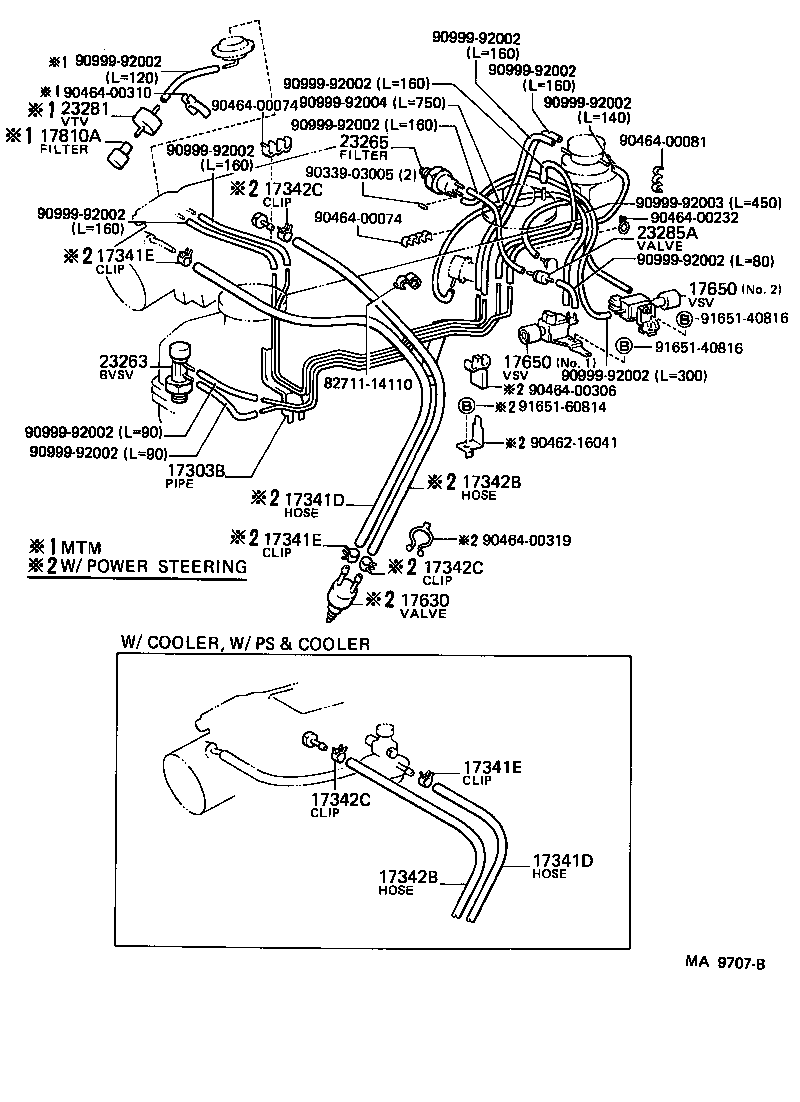

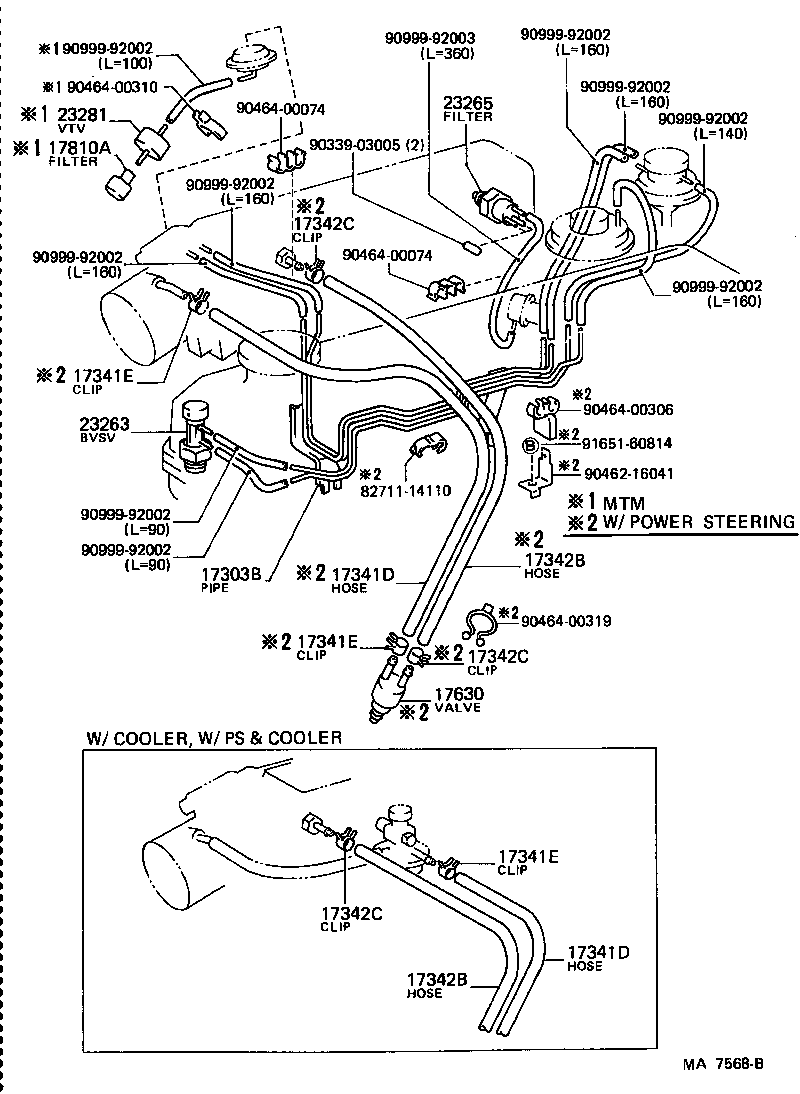

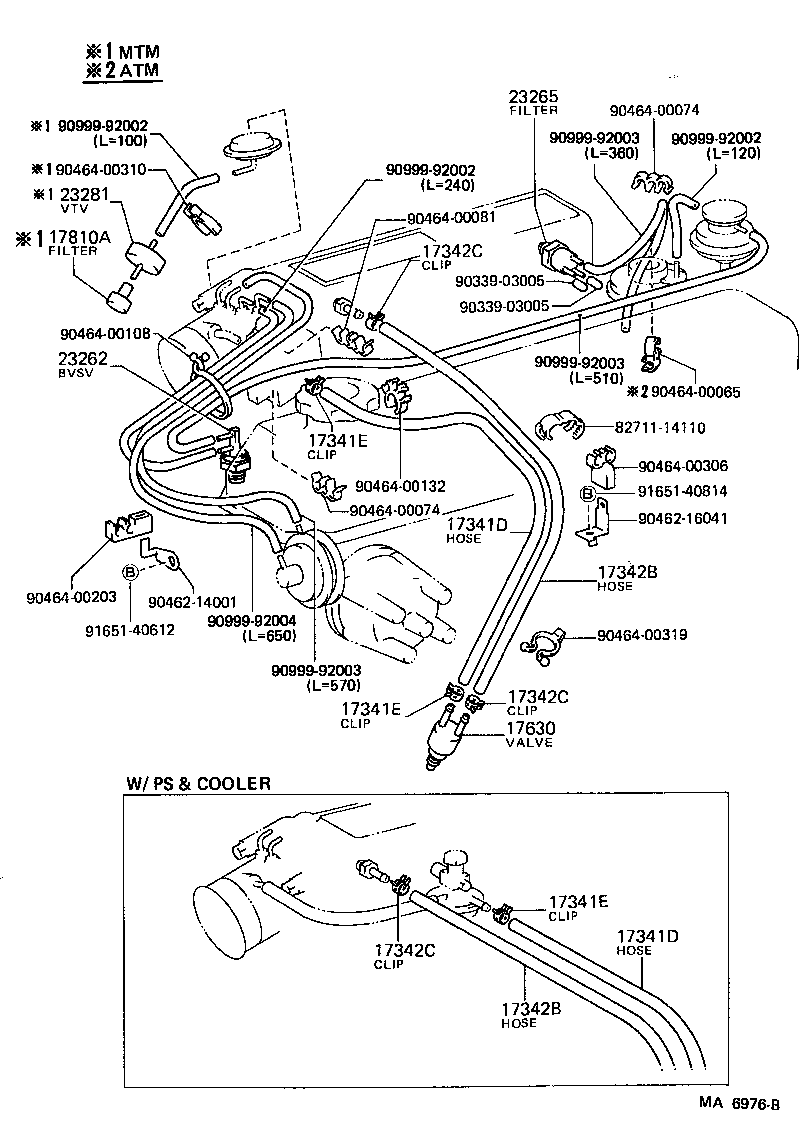

(8308-8408)22REC

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17630 - VALVE ASSY, AIR CONTROL
17630-28010	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17630-28010	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	1
17630-28010	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17810A - FILTER ASSY, AIR
90925-06006	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
90925-01027	22R..RN5#,6#,70	08/1984 - 08/1987	1
Common parts
82711-14110
90339-03005
90462-14001
90462-16041
90464-00065
90464-00074
90464-00081
90464-00108
90464-00132
90464-00203
90464-00306
90464-00310
90464-00319
90999-92002
90999-92003
90999-92004
91651-40612
91651-40814

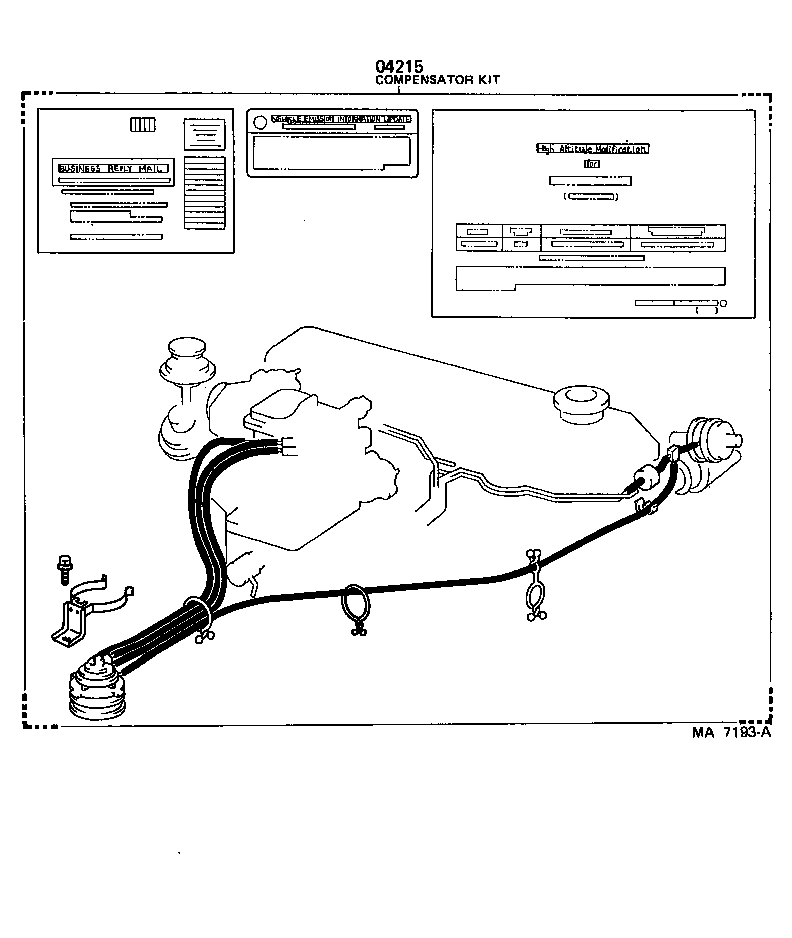

(8308-8808)22R..USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
04215 - COMPENSATOR KIT, HIGH ALTITUDE
04215-35080	22R..RN5#,6#..(3QT,HLF)..USA	08/1983 - 08/1984	1
04215-35090	22R..RN5#,6#,70..USA	08/1984 - 08/1986	1
04215-35101	22R..RN5#..USA	08/1986 - 08/1987	1

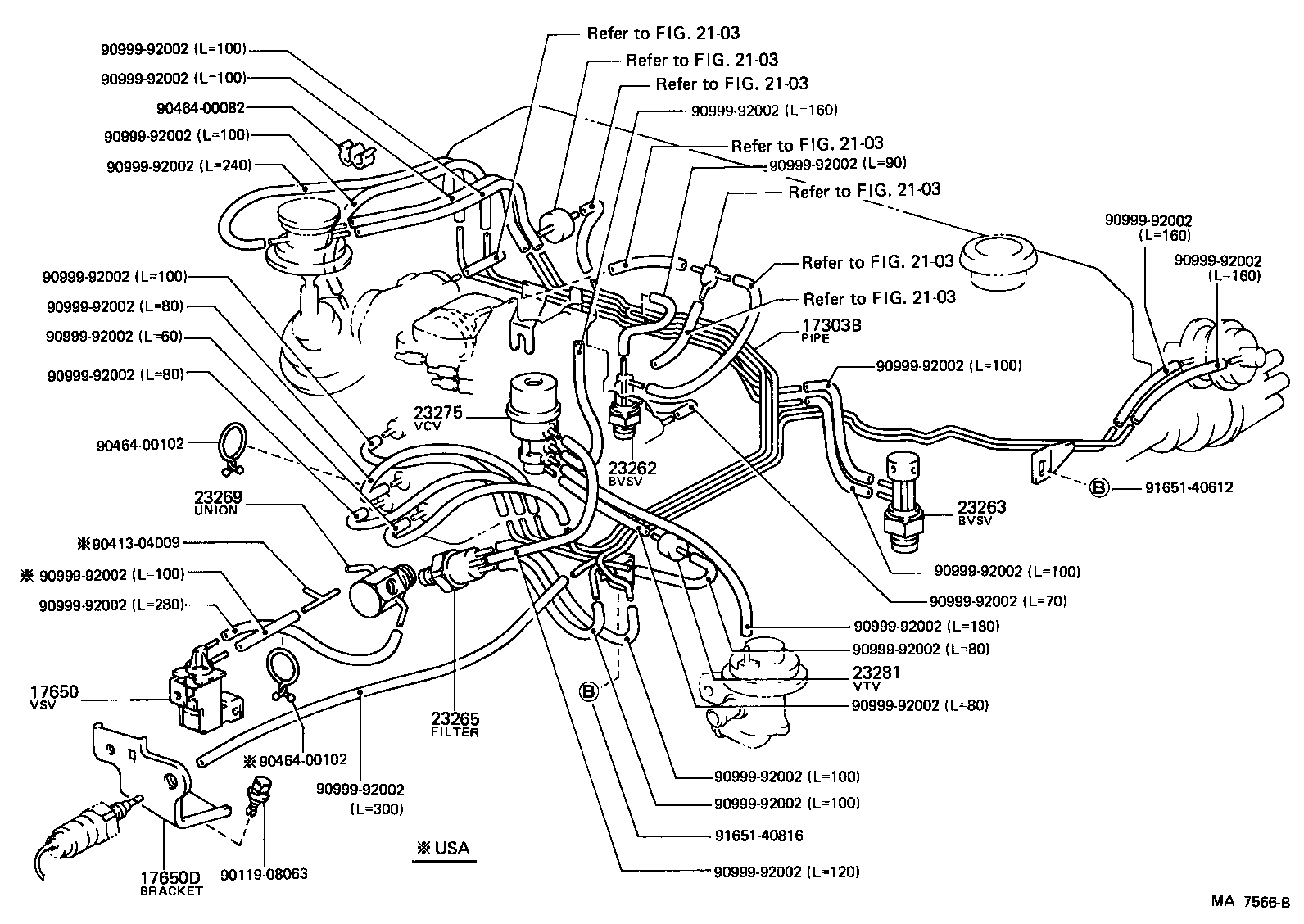

(8408-8708)22R

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23269 - UNION(FOR GAS FILTER)
90404-54031	22R..RN5#,6#..MTM..(3QT,HLF)	08/1983 - 08/1984	1
90404-54031	22R..RN5#,6#..MTM	08/1984 - 03/1985	1
90404-54032	22R..RN5#..W..USA CALIFORNIA SPEC	09/1985 - 08/1986	1
90404-54032	22R..RN5#,6#,70..MTM	03/1985 - 09/1985	1
90404-54032	22R..RN5#,6#,70	09/1985 - 08/1988	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-03104	22R..RN5#,6#,70	08/1984 - 08/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
90925-01027	22R..RN5#,6#,70	08/1984 - 08/1987	1
Common parts
90119-08063
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
91651-40816
Linked diagrams
2103

(8408-8508)22R..RN55,6#..IV ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..U

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23269 - UNION(FOR GAS FILTER)
90404-54031	22R..RN5#,6#..MTM..(3QT,HLF)	08/1983 - 08/1984	1
90404-54031	22R..RN5#,6#..MTM	08/1984 - 03/1985	1
90404-54032	22R..RN5#..W..USA CALIFORNIA SPEC	09/1985 - 08/1986	1
90404-54032	22R..RN5#,6#,70..MTM	03/1985 - 09/1985	1
90404-54032	22R..RN5#,6#,70	09/1985 - 08/1988	1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
25715-35010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25715-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
25715-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
25715-35010	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-35010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25730-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
25730-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
25730-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
25730-35010	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
Common parts
90119-08063
90413-04009
90464-00102
90999-92002
90999-92003
91651-40612
Linked diagrams
2103

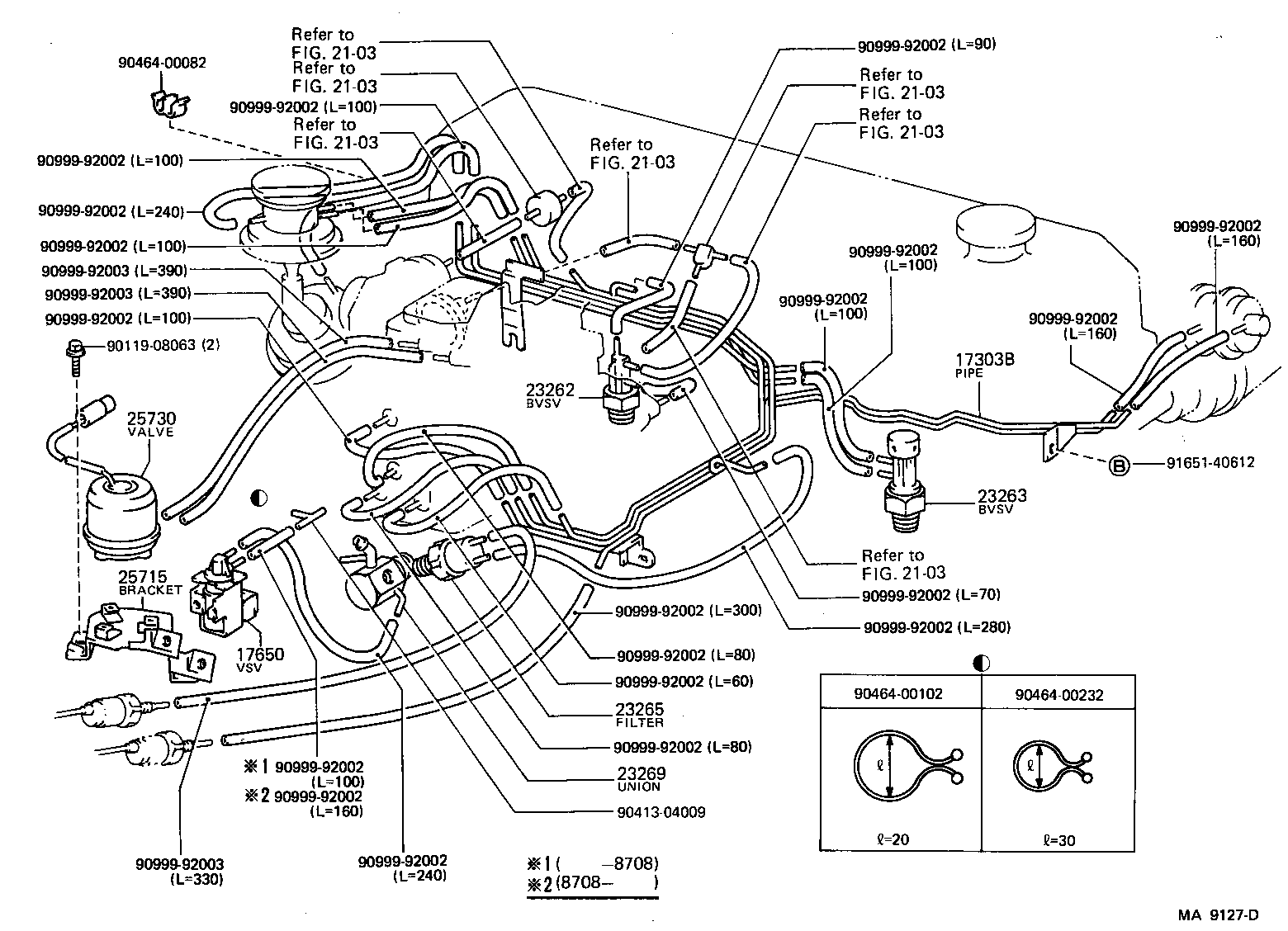

(8408-8708)22REC..RN5#,75

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17630 - VALVE ASSY, AIR CONTROL
17630-28010	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17630-28010	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	1
17630-28010	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17810A - FILTER ASSY, AIR
90925-06006	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
90925-01027	22R..RN5#,6#,70	08/1984 - 08/1987	1
Common parts
82711-14110
90339-03005
90462-16041
90464-00074
90464-00306
90464-00310
90464-00319
90999-92002
90999-92003
91651-60814

(8408-8508)22R..USA ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..USA ; (86

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050	22R..RN5#,6#,70	08/1983 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23269 - UNION(FOR GAS FILTER)
90404-54031	22R..RN5#,6#..MTM..(3QT,HLF)	08/1983 - 08/1984	1
90404-54031	22R..RN5#,6#..MTM	08/1984 - 03/1985	1
90404-54032	22R..RN5#..W..USA CALIFORNIA SPEC	09/1985 - 08/1986	1
90404-54032	22R..RN5#,6#,70..MTM	03/1985 - 09/1985	1
90404-54032	22R..RN5#,6#,70	09/1985 - 08/1988	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90925-03104	22R..RN5#,6#,70	08/1984 - 08/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
90925-01027	22R..RN5#,6#,70	08/1984 - 08/1987	1
23285A - VALVE, CHECK, NO.1
90917-10049	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90917-10049	22R..RN5#,70..USA HIGH ALTITUDE SPEC	01/1986 - 08/1986	1
90917-10049	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1985 - 01/1986	1
90917-10049	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1986 - 08/1987	1

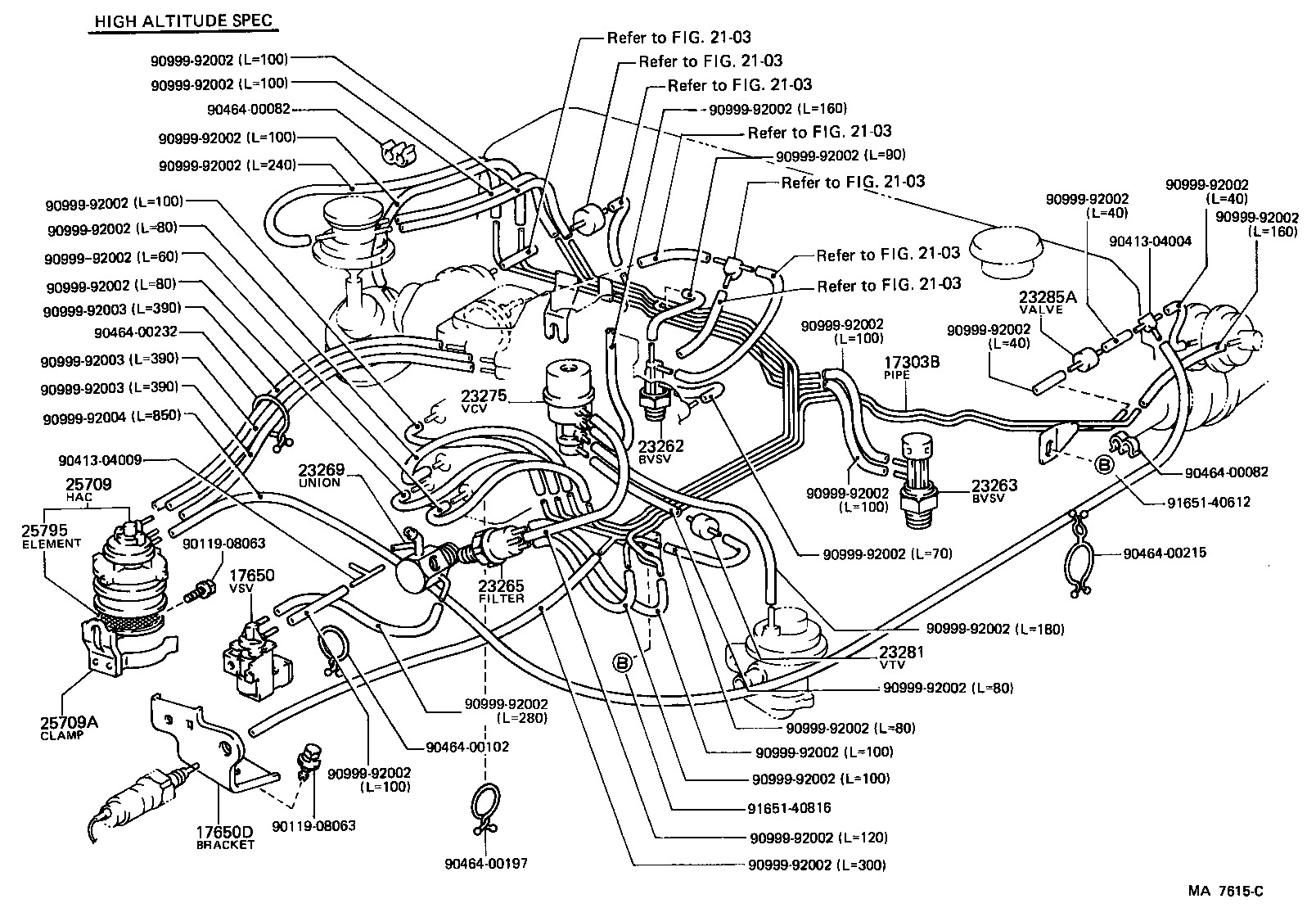

25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
25709-38010	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1985 - 08/1987	1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90461-10178	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1985 - 08/1987	1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
25795-38010	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1985 - 08/1987	1
Common parts
90119-08063
90413-04004
90413-04009
90464-00082
90464-00102
90464-00197
90464-00215
90464-00232
90999-92002
90999-92003
90999-92004
91651-40612
91651-40816
Linked diagrams

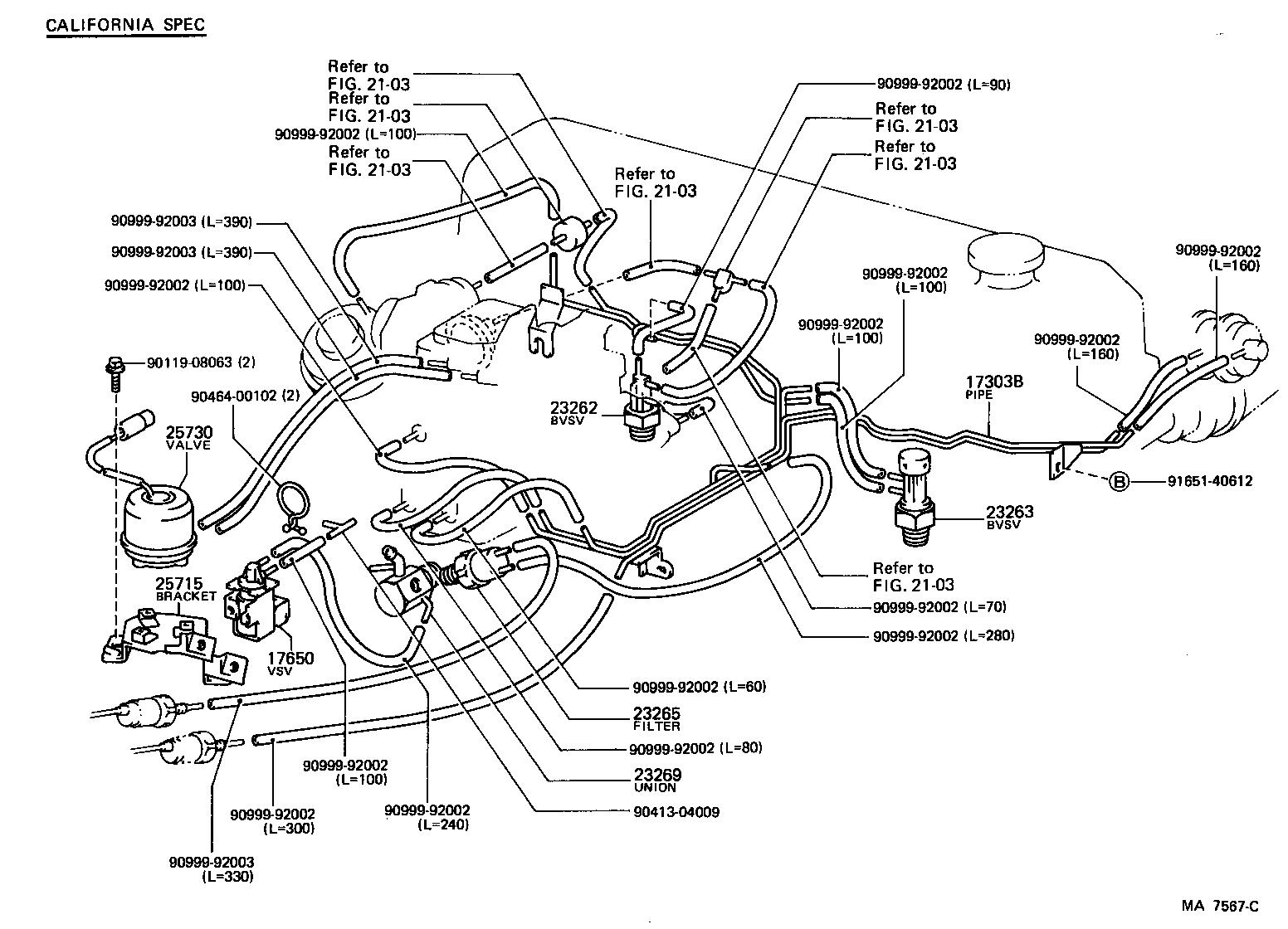

2103

(8608-8708)22R..USA ; (8708-8808)22R..W

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05080	22R..RN5#,70	09/1987 - 08/1988	1
90925-05035	22REC..RN5#	08/1983 - 08/1984	1
25810-27010	22R..RN5#,6#,70	08/1983 - 09/1987	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23269 - UNION(FOR GAS FILTER)
90404-54031	22R..RN5#,6#..MTM..(3QT,HLF)	08/1983 - 08/1984	1
90404-54031	22R..RN5#,6#..MTM	08/1984 - 03/1985	1
90404-54032	22R..RN5#..W..USA CALIFORNIA SPEC	09/1985 - 08/1986	1
90404-54032	22R..RN5#,6#,70..MTM	03/1985 - 09/1985	1
90404-54032	22R..RN5#,6#,70	09/1985 - 08/1988	1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
25715-35010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25715-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
25715-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
25715-35010	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-35010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25730-35010	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
25730-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
25730-35010	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
25730-35010	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
Common parts
90119-08063
90413-04009
90464-00082
90464-00102
90464-00232
90999-92002
90999-92003
91651-40612
Linked diagrams
2103

(8708-8808)22REC

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35180	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
17303-35170	22R..RN5#,6#,70	08/1984 - 08/1987	1
17303-35150	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
17303-35220	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
17303-35180	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
17303-35180	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
17303-35190	22REC..RN5#,6#,75	08/1984 - 08/1988	1
17303-35220	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-35030	22REC..RN5#,6# W/PS	08/1983 - 08/1985	1
17342-35050	22REC..RN5#,6#,75 W/PS & COOLER	08/1983 - 08/1986	1
17341-35120	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	1
17341-35120	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PSVALVE SIDE	08/1986 - 08/1988	1
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,W/PS & COOLER	08/1985 - 08/1986	2
96132-30600	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,THROTTLE BODY SIDE	08/1985 - 08/1986	1
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/COOLER	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS,VALVE SIDE	08/1985 - 08/1986	1
96132-30600	22REC,22RTEC..RN55..10T,HLF W/PSTHROTTLE BODY SIDE	08/1986 - 08/1988	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050	22REC..RN5#,6# W/PS	08/1983 - 08/1986	1
17342-35050	22REC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17342-35050	22REC..RN6#,75;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	2
96132-30400	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	2
96132-30400	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	2
17630 - VALVE ASSY, AIR CONTROL
17630-28010	22REC,22RTEC..RN55..10T,HLF W/PS	08/1986 - 08/1988	1
17630-28010	22REC,22RTEC..RN5#,6# W/PS	08/1983 - 08/1985	1
17630-28010	22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF W/PS	08/1985 - 08/1986	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12035	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
89570-35170	22R..RN5#,6#,70	08/1983 - 08/1986	1
90910-12066	22REC..RN5#,6#,7# NO.2	08/1987 - 08/1988	1
90910-12035	22R..RN5#,6#,70	08/1986 - 08/1987	1
90910-12067	22REC..RN5#,6#,7# NO.1	08/1987 - 08/1988	1
17810A - FILTER ASSY, AIR
90925-06006	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13020	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
25820-13020	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 09/1987	1
25820-13010	22R,22REC..RN5#,6#,7#	08/1984 - 09/1985	1
25820-13010	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
25820-13020	22R..RN5#,6#,70	09/1985 - 08/1987	1
25820-13010	22REC..RN55,6#,7#	09/1985 - 09/1987	1
25820-13010	22R..RN5#..USA CALIFORNIA SPEC	09/1985 - 01/1986	1
90925-05079	22R..RN5#,70..W;22R..RN55,70..CND	09/1987 - 08/1988	1
90925-05078	22REC..RN5#,6#,7#	09/1987 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	22R..RN5#,6#..3QT,HLF	08/1983 - 08/1984	1
90917-11024	22REC..RN5#	08/1983 - 08/1984	1
90917-11023	22R..RN5#,70..USA CALIFORNIA SPEC	01/1986 - 08/1986	1
90917-11024	22R#..RN5#,6#,7#	08/1984 - 08/1987	1
90917-11023	22R..RN5#,6#..USA CALIFORNIA SPEC	08/1984 - 08/1985	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1986 - 08/1987	1
90917-11023	22R..RN5#..USA CALIFORNIA SPEC	08/1985 - 01/1986	1
90917-11023	22R..RN5#,70..W;22R..RN55,70..CND	08/1987 - 08/1988	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	22REC..RN5#,6#,75..MTM	08/1983 - 08/1988	1
90925-01027	22R..RN5#,6#,70	08/1984 - 08/1987	1
23285A - VALVE, CHECK, NO.1
90917-10049	22R..RN5#,6#..USA HIGH ALTITUDE SPEC	08/1984 - 08/1985	1
90917-10049	22R..RN5#,70..USA HIGH ALTITUDE SPEC	01/1986 - 08/1986	1
90917-10049	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1985 - 01/1986	1
90917-10049	22R..RN5#..USA HIGH ALTITUDE SPEC	08/1986 - 08/1987	1
Common parts
82711-14110
90339-03005
90462-16041
90464-00074
90464-00081
90464-00232
90464-00306
90464-00310
90464-00319
90999-92002
90999-92003
90999-92004
91651-40816
91651-60814

RN55L-MSCEA (1983)

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND

(8308-8408)22REC

(8308-8808)22R..USA

(8408-8708)22R

(8408-8508)22R..RN55,6#..IV ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..U

(8408-8708)22REC..RN5#,75

(8408-8508)22R..USA ; (8508-8608)22R..RN6#,70..IV ; (8508-8608)22R..RN5#..USA ; (86

(8608-8708)22R..USA ; (8708-8808)22R..W

(8708-8808)22REC

Part Price Details
