RN55L-MRK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

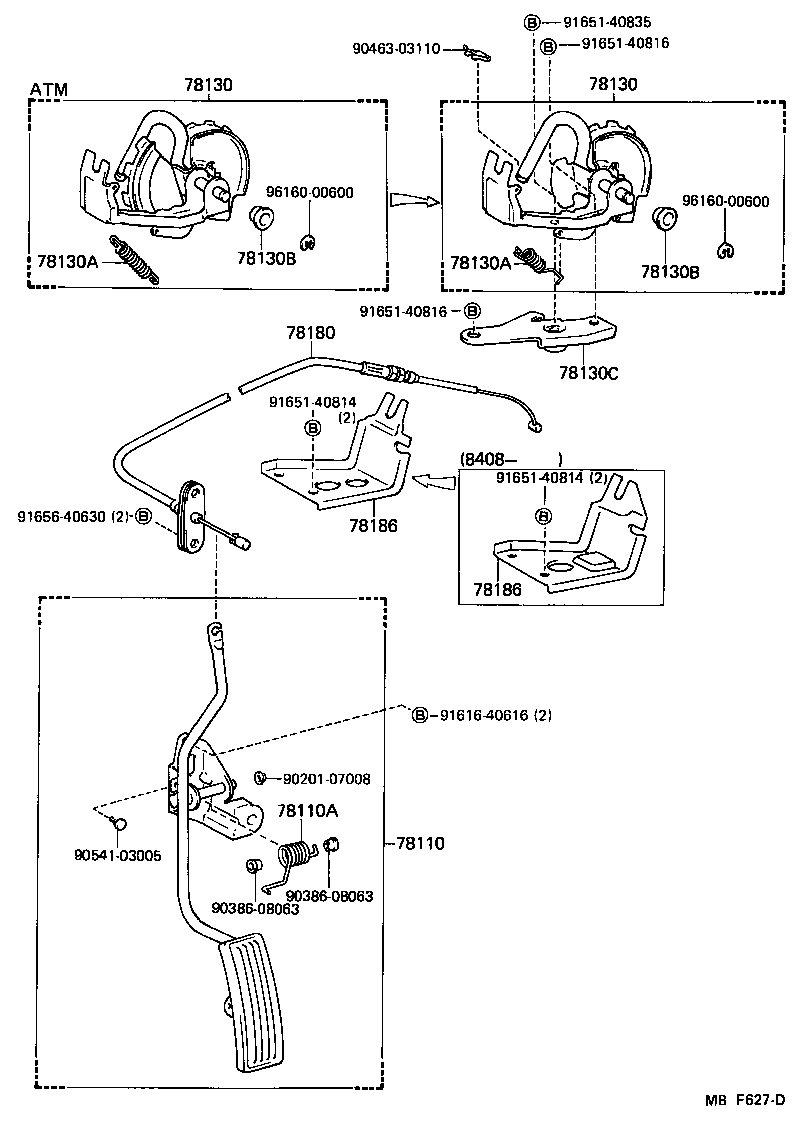

(8308-8408)RN5#..CBR ; (8408-8808)CBR

Click highlighted areas on diagram

diagram 78110 78110A 78130 78130 78130A 78130A 78130B 78130B 78130C 78180 78186 78186 9020107008 9038608063 9038608063 9046303110 9054103005 9161640616 9165140814 9165140814 9165140816 9165140816 9165140835 9165640630 9616000600 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89114

RN5#..CBR

 1
78120-89114

RN5#,6#,70..CBR

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-32019

RN5#,6#,7#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89101

RN5#,6#,70..MTM..CBR

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89101

RN5#,6#,70..MTM..CBR

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-14076

RN5#,6#,70..CBR

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-14076

RN5#,6#,70..CBR

 1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08063

RN5#,6#,70..CBR

 2
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08063

RN5#,6#,70..CBR

 2
78130C - BRACKET, ACCELERATOR BELLCRANK
78166-89101

RN5#,6#,70..CBR

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89132

RN60..IV;RN60..V,WG;RN5#,65..CBR;RN60..(DLX,STD)..HLF..CBU

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
Common parts
90201-07008
90386-08063
90463-03110
90541-03005
91616-40616
91651-40814
91651-40816
91651-40835
91656-40630
96160-00600

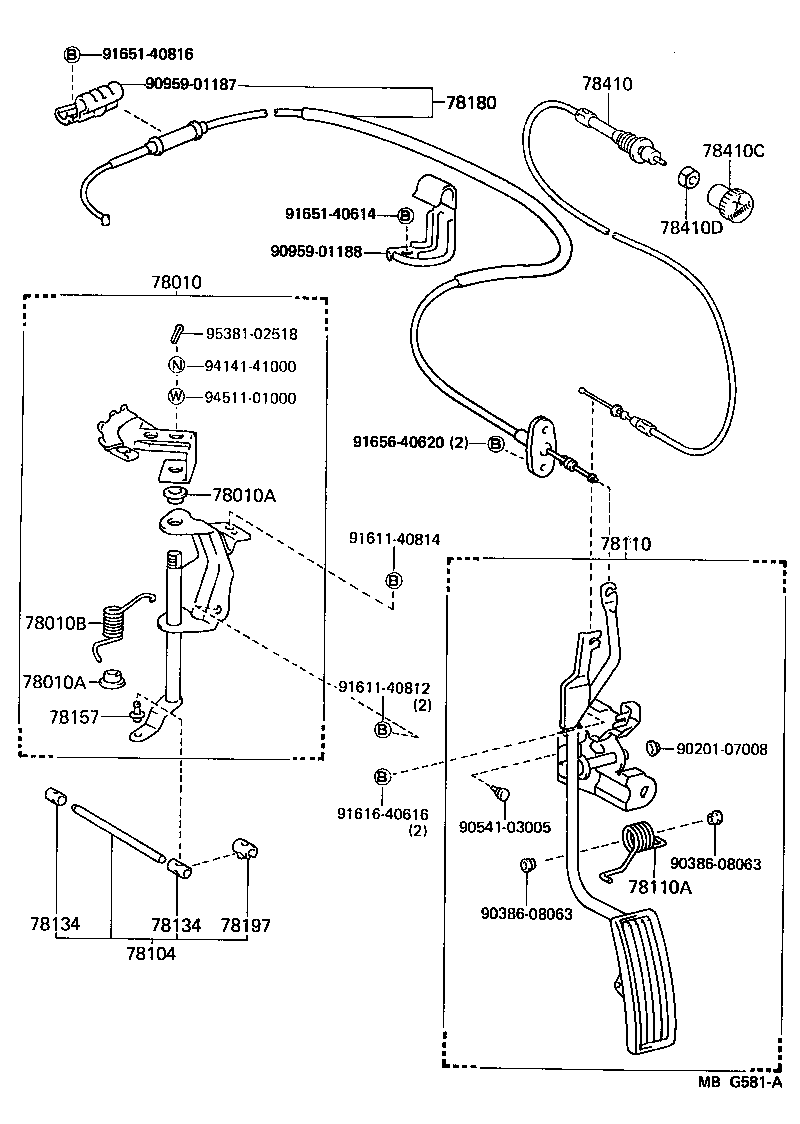

(8408-8708)TD

Click highlighted areas on diagram

diagram 78010 78010A 78010A 78010B 78104 78110 78110A 78134 78134 78157 78180 78197 78410 78410C 78410D 9020107008 9038608063 9038608063 9054103005 9095901187 9095901188 9161140812 9161140814 9161640616 9165140614 9165140816 9165640620 9414141000 9451101000 9538102518
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89114

RN5#..CBR

 1
78120-89114

RN5#,6#,70..CBR

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-32019

RN5#,6#,7#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89132

RN60..IV;RN60..V,WG;RN5#,65..CBR;RN60..(DLX,STD)..HLF..CBU

 1
Common parts
90201-07008
90386-08063
90541-03005
90959-01187
90959-01188
91611-40812
91611-40814
91616-40616
91651-40614
91651-40816
91656-40620
94141-41000
94511-01000
95381-02518
