RN55L-MRK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )22R#

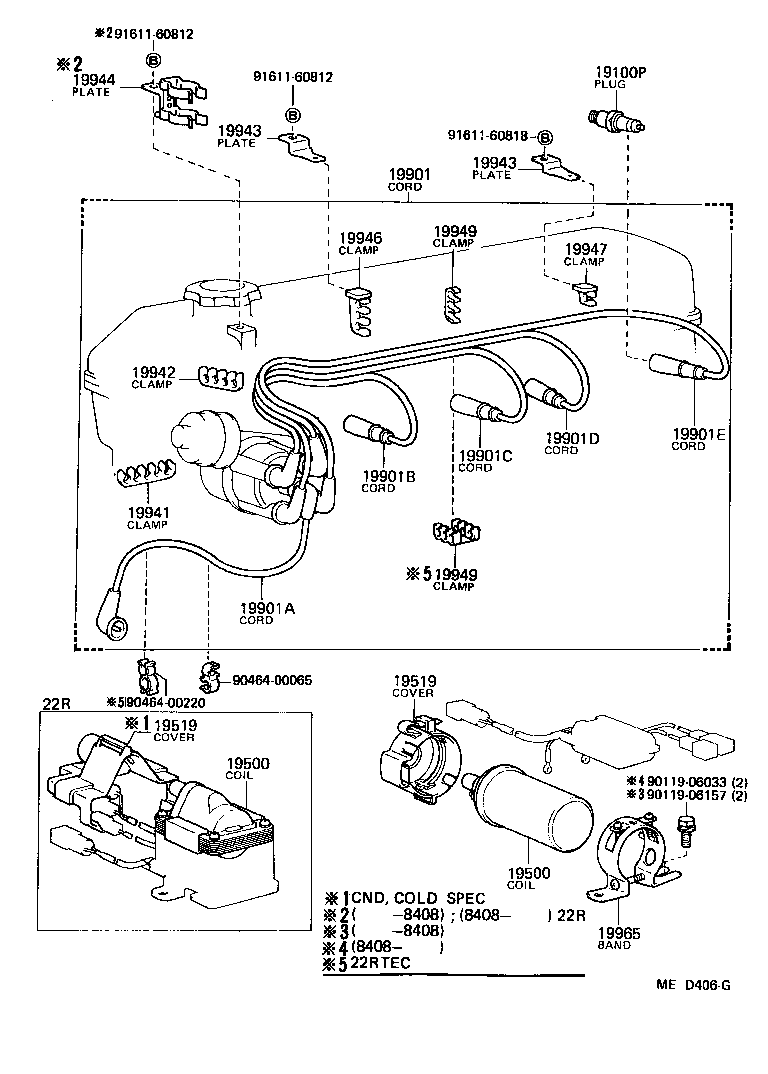

Click highlighted areas on diagram

diagram 19100P 19500 19500 19519 19519 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19947 19949 19949 19965 9011906033 9011906157 9046400065 9046400220 9161160812 9161160812 9161160818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R#..RN5#,6#,7#

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02106

22R..RN5#,6#,70

 1
19500 - COIL ASSY, IGNITION
90919-02106

22R..RN5#,6#,70

 1
19519 - COVER, IGNITION COIL
19519-28010

22R..RN5#,6#,70..CND

 1
19519 - COVER, IGNITION COIL
19519-28010

22R..RN5#,6#,70..CND

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21343

22R#..RN5#,6#,7#

 1
19901A - CORD, COIL RESISTIVE
90919-13211

22R#..RN5#,6#,7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12457

22R#..RN5#,6#,7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12458

22R#..RN5#,6#,7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12459

22R#..RN5#,6#,7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12460

22R#..RN5#,6#,7#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R#..RN5#,6#,7#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R#..RN5#,6#,7#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R#..RN5#,6#,7#

 2
19943-38010

22R#..RN5#,6#,7#

 2
19943-38011

22R#..RN5#,6#,7#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R#..RN5#,6#,7#

 2
19943-38010

22R#..RN5#,6#,7#

 2
19943-38011

22R#..RN5#,6#,7#

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RN5#,6#,70

 1
19944-35010

22R#..RN5#,6#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R#..RN5#,6#,7#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R#..RN5#,6#,7#

 1
Common parts
90119-06033
90119-06157
90464-00065
90464-00220
91611-60812
91611-60818
