RN55L-MRHEK (1984)
Toyota 4-Runner Truck

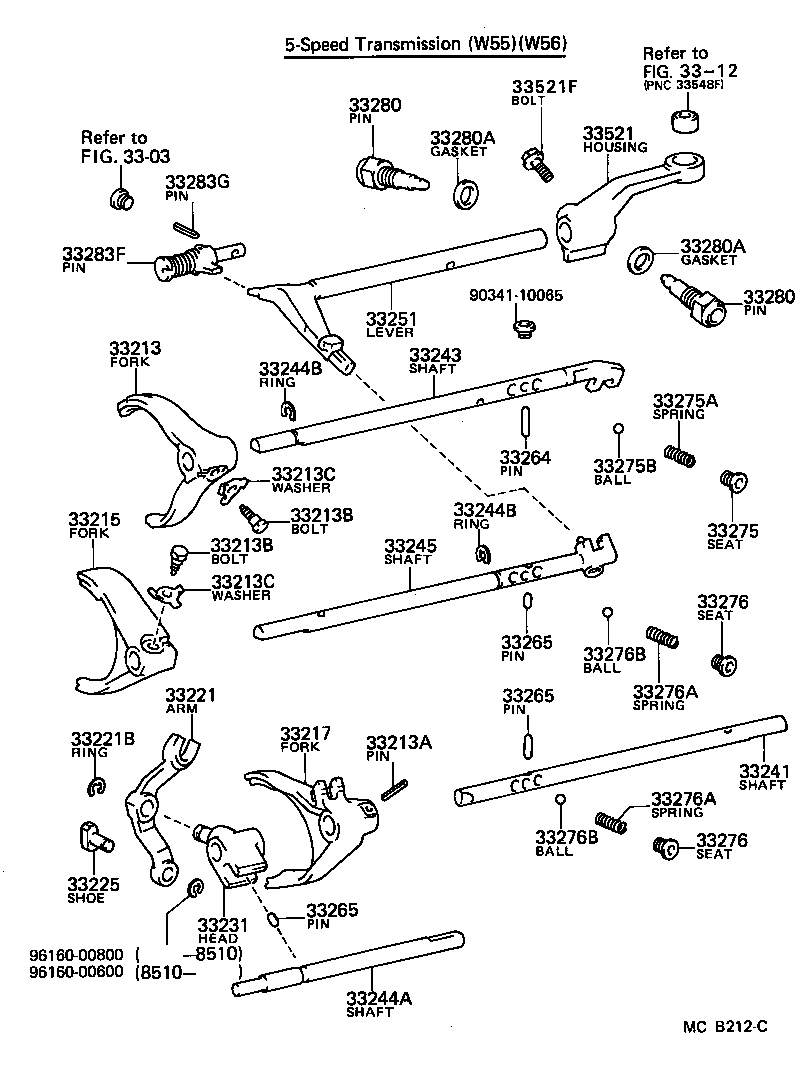

(8408- )LN56,6#,RN5#,6#..5F..EFI,TD ; (8508-)RN5#,70..5F..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-20050 |
RN5#..MTM |
1 | ||
| 33212-35030 |
RN55,6#..R |
1 | ||
| 33212-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,65,RN5#,6# |
5 | ||
| 90254-05016 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90254-05001 |
RN55,6#..R |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90105-06077 |
RN55,6#..R |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90105-06077 |
RN55,6#..R |
3 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-35040 |
RN55,6#..R |
1 | ||
| 33213-31010 |
RN5#..MTM |
1 | ||
| 33213-22030 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33217 - FORK, 5TH & REVERSE SHIFT | ||||
| 33214-20011 |
RN5#..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33221-22010 |
LN66,RN55,6#,75..MTM..(EFI,TD) |
1 | ||
| 33221-35030 |
RN55,6#..R |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33225-22010 |
LN66,RN55,6#,75..MTM..(EFI,TD) |
1 | ||
| 33225-35040 |
RN55,6#..R |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22010 |
LN56,6#,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33231-35060 |
RN55,6#..R |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-20902 |
RN5#..5F |
1 | ||
| 33244-35040 |
RN55,6#..R |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-20060 |
RN5#..MTM |
1 | ||
| 33242-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33242-35030 |
RN55,6#..R |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-22010 |
LN56,65,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33245-35050 |
RN55,6#..R |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33240-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33243-20031 |
RN5#..MTM |
1 | ||
| 33243-35070 |
RN55,6#..R |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35080 |
RN55..R |
1 | ||
| 33251-22050 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RN5#..MTM |
2 | ||
| 33264-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,61..R OD=9.52,STEEL,BALL |
2 | ||
| 90361-10003 |
RN55,6#..R L=13.6,OD=9.5,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=11.2,OD=4,L=11.2 |
1 | ||
| 33266-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
RN55,61..R L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=11.2,OD=4,L=11.2 |
1 | ||
| 33266-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
RN55,61..R L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=11.2,OD=4,L=11.2 |
1 | ||
| 33266-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
RN55,61..R L=11.1,OD=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10004 |
RN5#..MTM |
1 | ||
| 90341-12004 |
LN66,RN55,6#,75..MTM..(EFI,TD) OD=18 |
1 | ||
| 90341-12008 |
RN55,6#..R OD=18 |
4 | ||
| 90341-12004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) OD=18 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13001 |
RN5#..MTM L=16.5 |
1 | ||
| 90501-14096 |
RN55,6#..R L=34.5 |
4 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=20.65 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RN5#..MTM |
1 | ||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,6#..R |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90341-12008 |
RN55,6#..R |
1 | ||
| 90341-10064 |
RN5#..MTM |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90341-12008 |
RN55,6#..R |
1 | ||
| 90341-10064 |
RN5#..MTM |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
RN5#..MTM |
2 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90501-10061 |
RN55,6#..R |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
RN5#..MTM |
2 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90501-10061 |
RN55,6#..R |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90360-08009 |
RN5#..MTM |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90360-08009 |
RN5#..MTM |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) RH |
1 | ||
| 33280-35070 |
RN55,6#..R LH |
1 | ||
| 33280-35060 |
RN55,6#..R RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) RH |
1 | ||
| 33280-35070 |
RN55,6#..R LH |
1 | ||
| 33280-35060 |
RN55,6#..R RH |
1 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18008 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18008 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35050 |
RN55,6#..R |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
RN55,6#..R |
4 | ||
| 90254-05016 |
LN56,6#,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-14040 |
RN5#..MTM |
1 | ||
| 33502-14100 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33521-35120 |
RN55..R |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
RN55,6#..R |
1 | ||
| 90105-08079 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90254-05016 |
RN5#..MTM |
1 | ||
| Common parts | ||||
| 90341-10065 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 3303 | ||||
| 3312 | ||||

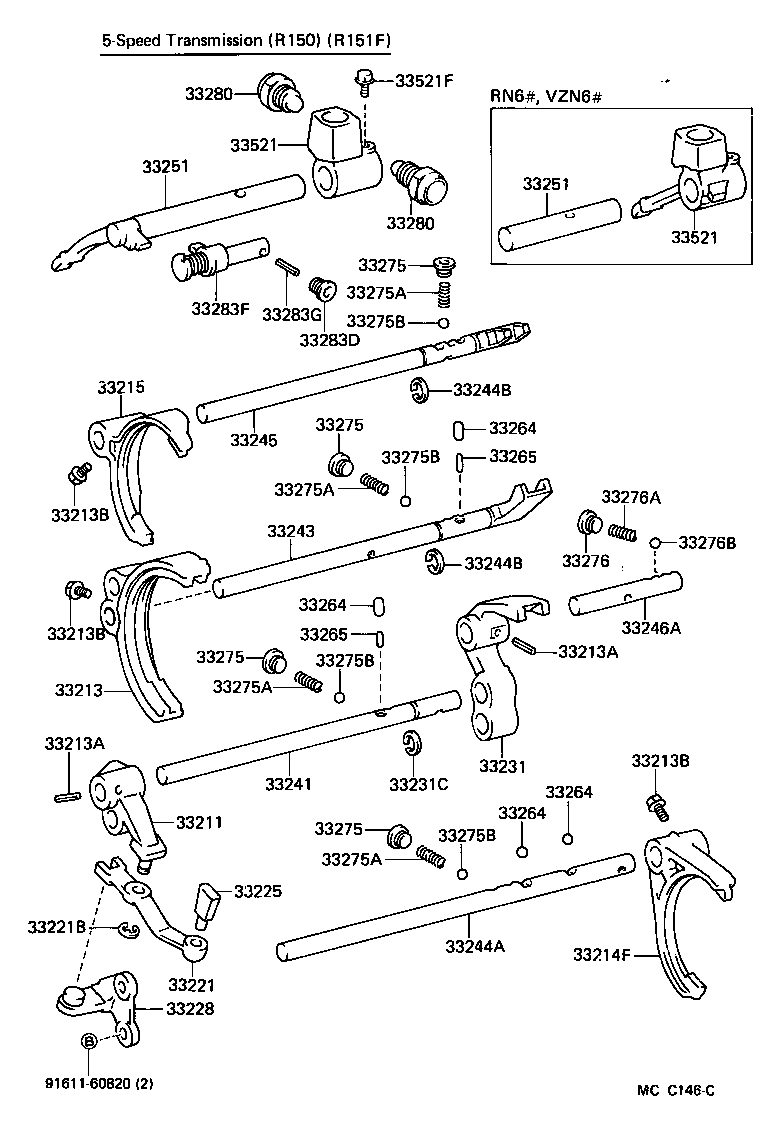

(8508- )RN55,6#..R ; (8711- )VZN6#..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35030 |
RN55,6#..R |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-20050 |
RN5#..MTM |
1 | ||
| 33212-35030 |
RN55,6#..R |
1 | ||
| 33212-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,65,RN5#,6# |
5 | ||
| 90254-05016 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90254-05001 |
RN55,6#..R |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,65,RN5#,6# |
5 | ||
| 90254-05016 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90254-05001 |
RN55,6#..R |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90105-06077 |
RN55,6#..R |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90105-06077 |
RN55,6#..R |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90105-06077 |
RN55,6#..R |
3 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-35030 |
RN55,6#..R |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-35040 |
RN55,6#..R |
1 | ||
| 33213-31010 |
RN5#..MTM |
1 | ||
| 33213-22030 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33221-22010 |
LN66,RN55,6#,75..MTM..(EFI,TD) |
1 | ||
| 33221-35030 |
RN55,6#..R |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33225-22010 |
LN66,RN55,6#,75..MTM..(EFI,TD) |
1 | ||
| 33225-35040 |
RN55,6#..R |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-35010 |
RN55,6#..R |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22010 |
LN56,6#,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33231-35060 |
RN55,6#..R |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12003 |
RN55,6#..R |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-20902 |
RN5#..5F |
1 | ||
| 33244-35040 |
RN55,6#..R |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-20060 |
RN5#..MTM |
1 | ||
| 33242-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33242-35030 |
RN55,6#..R |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-22010 |
LN56,65,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33245-35050 |
RN55,6#..R |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33240-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 33243-20031 |
RN5#..MTM |
1 | ||
| 33243-35070 |
RN55,6#..R |
1 | ||
| 33246A - SHAFT, REVERSE & 5TH SHIFT HEAD | ||||
| 33246-35030 |
RN55,6#..R |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35080 |
RN55..R |
1 | ||
| 33251-22050 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35080 |
RN55..R |
1 | ||
| 33251-22050 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RN5#..MTM |
2 | ||
| 33264-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,61..R OD=9.52,STEEL,BALL |
2 | ||
| 90361-10003 |
RN55,6#..R L=13.6,OD=9.5,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RN5#..MTM |
2 | ||
| 33264-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,61..R OD=9.52,STEEL,BALL |
2 | ||
| 90361-10003 |
RN55,6#..R L=13.6,OD=9.5,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RN5#..MTM |
2 | ||
| 33264-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,61..R OD=9.52,STEEL,BALL |
2 | ||
| 90361-10003 |
RN55,6#..R L=13.6,OD=9.5,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RN5#..MTM |
2 | ||
| 33264-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,61..R OD=9.52,STEEL,BALL |
2 | ||
| 90361-10003 |
RN55,6#..R L=13.6,OD=9.5,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=11.2,OD=4,L=11.2 |
1 | ||
| 33266-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
RN55,61..R L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=11.2,OD=4,L=11.2 |
1 | ||
| 33266-22010 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
RN55,61..R L=11.1,OD=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10004 |
RN5#..MTM |
1 | ||
| 90341-12004 |
LN66,RN55,6#,75..MTM..(EFI,TD) OD=18 |
1 | ||
| 90341-12008 |
RN55,6#..R OD=18 |
4 | ||
| 90341-12004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) OD=18 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10004 |
RN5#..MTM |
1 | ||
| 90341-12004 |
LN66,RN55,6#,75..MTM..(EFI,TD) OD=18 |
1 | ||
| 90341-12008 |
RN55,6#..R OD=18 |
4 | ||
| 90341-12004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) OD=18 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10004 |
RN5#..MTM |
1 | ||
| 90341-12004 |
LN66,RN55,6#,75..MTM..(EFI,TD) OD=18 |
1 | ||
| 90341-12008 |
RN55,6#..R OD=18 |
4 | ||
| 90341-12004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) OD=18 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10004 |
RN5#..MTM |
1 | ||
| 90341-12004 |
LN66,RN55,6#,75..MTM..(EFI,TD) OD=18 |
1 | ||
| 90341-12008 |
RN55,6#..R OD=18 |
4 | ||
| 90341-12004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) OD=18 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13001 |
RN5#..MTM L=16.5 |
1 | ||
| 90501-14096 |
RN55,6#..R L=34.5 |
4 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=20.65 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13001 |
RN5#..MTM L=16.5 |
1 | ||
| 90501-14096 |
RN55,6#..R L=34.5 |
4 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=20.65 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13001 |
RN5#..MTM L=16.5 |
1 | ||
| 90501-14096 |
RN55,6#..R L=34.5 |
4 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=20.65 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13001 |
RN5#..MTM L=16.5 |
1 | ||
| 90501-14096 |
RN55,6#..R L=34.5 |
4 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) L=20.65 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RN5#..MTM |
1 | ||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,6#..R |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RN5#..MTM |
1 | ||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,6#..R |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RN5#..MTM |
1 | ||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,6#..R |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RN5#..MTM |
1 | ||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90360-10003 |
RN55,6#..R |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90341-12008 |
RN55,6#..R |
1 | ||
| 90341-10064 |
RN5#..MTM |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
RN5#..MTM |
2 | ||
| 90501-13004 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90501-10061 |
RN55,6#..R |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
2 | ||
| 90360-08009 |
RN5#..MTM |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) RH |
1 | ||
| 33280-35070 |
RN55,6#..R LH |
1 | ||
| 33280-35060 |
RN55,6#..R RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) RH |
1 | ||
| 33280-35070 |
RN55,6#..R LH |
1 | ||
| 33280-35060 |
RN55,6#..R RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
RN55,6#..R |
1 | ||
| 90341-20086 |
RN5#..MTM |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35050 |
RN55,6#..R |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
RN55,6#..R |
4 | ||
| 90254-05016 |
LN56,6#,RN5#,6#..5F..(EFI,TD) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-14040 |
RN5#..MTM |
1 | ||
| 33502-14100 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33521-35120 |
RN55..R |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-14040 |
RN5#..MTM |
1 | ||
| 33502-14100 |
LN56,RN5#..5F..(EFI,TD) |
1 | ||
| 33521-35120 |
RN55..R |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
RN55,6#..R |
1 | ||
| 90105-08079 |
RN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD) |
1 | ||
| 90254-05016 |
RN5#..MTM |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
