RN55L-MRHEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1988
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8808)22REC

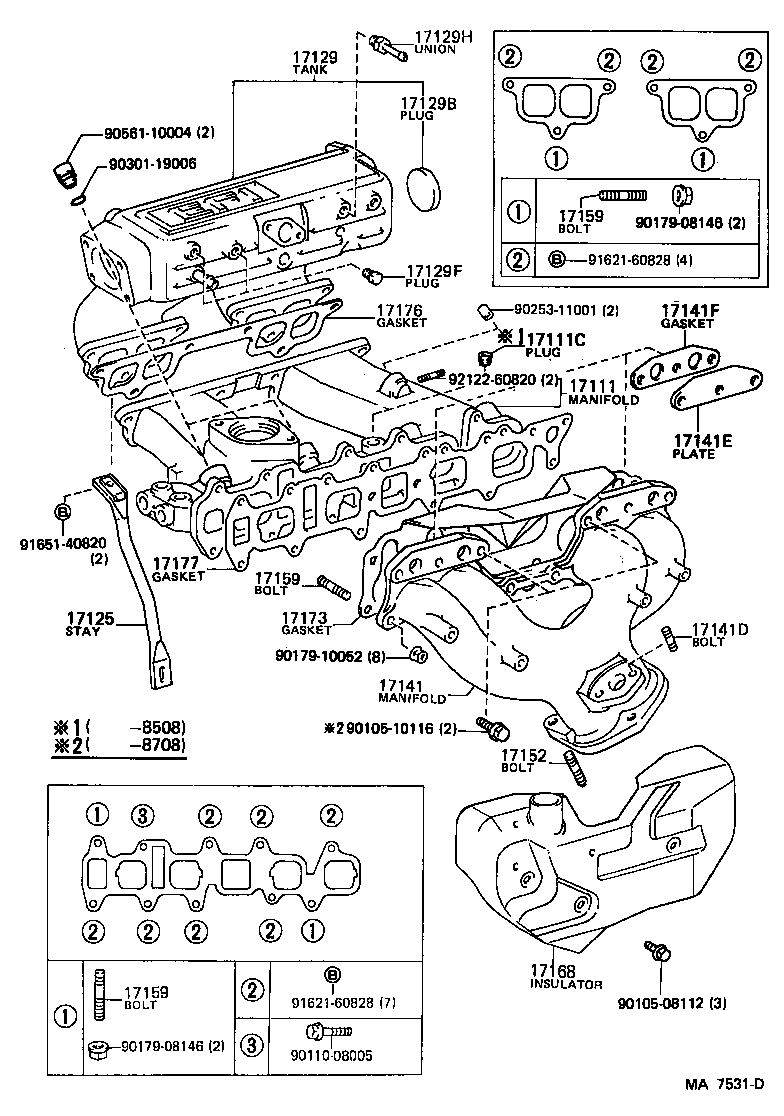

Click highlighted areas on diagram

diagram 17111 17111C 17125 17129 17129B 17129F 17129H 17141 17141D 17141E 17141F 17152 17159 17159 17159 17168 17173 17176 17177 9010508112 9010510116 9011008005 9017908146 9017908146 9017910052 9025311001 9030119006 9056110004 9162160828 9162160828 9165140820 9212260820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-35010

22REC..RN5#

 1
17101-35030

22REC..RN55,6#,75

 1
17101-35012

22REC,22RTEC..RN5#,6#

 1
17111-35030

22R..RN5#,6#,70

 1
17111-35080

22R..RN5#,6#,70

 1
17101-35040

22REC..RN5#,6#,7#

 1
17101-35013

22REC,22RTEC..RN5#,6#

 1
17111C - PLUG, NO.3
90340-16002

22REC..RN5#,6#..MTM

 1
17125 - STAY, SURGE TANK, NO.1
17125-35020

22REC..RN5#

 1
17129 - TANK, INTAKE AIR SURGE
17109-35010

22REC..RN5#,6#,75

 1
17109-35030

22REC..RN5#,6#,7#

 1
17129B - PLUG
96411-44000

22REC,22RTEC..RN5#,6#,7#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

22REC,22RTEC..RN5#,6#,7#

 2
17129H - UNION, NO.4
90404-51026

22REC,22RTEC..RN5#,6#

W/PS

 1
90404-51026

22REC,22RTEC..RN55..10T,HLF

W/PS

 1
90404-51026

22REC..RN6#,75;22RTEC..RN55,6#;22REC..RN55..WT;22REC..RN55..10T,HLF

W/PS

 1
17141 - MANIFOLD, EXHAUST
17141-35070

22REC..RN5#

 1
17141-35080

22REC..RN5#,6#,75

 1
17141-35080

22R..RN5#,70

 1
17141-35100

22R..RN5#,6#,70

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

22REC..RN5#;22R..RN55..HVY

 2
90116-08128

22R..RN5#,70

 2
90116-08128

22REC..RN5#,6#,75

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-35030

22REC..RN5#,6#,75

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-35010

22REC..RN5#,6#,75

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RN5#,6#,7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
92122-60825

22REC,22RTEC..RN5#,6#,7#

L=37,S=12&12

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
92122-60825

22REC,22RTEC..RN5#,6#,7#

L=37,S=12&12

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
92122-60825

22REC,22RTEC..RN5#,6#,7#

L=37,S=12&12

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35030

22REC..RN5#

 1
17167-35090

22REC..RN5#,6#,7#

 1
17167-35070

22R..RN5#,70..W;22R..RN55,70..CND

 1
17167-35070

22R..RN5#,6#,70

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R#..RN5#,6#

 1
17173-35060

22R,22REC..RN5#,6#,7#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35010

22REC,22RTEC..RN5#,6#,7#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R#..RN5#,6#

 1
Common parts
90105-08112
90105-10116
90110-08005
90179-08146
90179-10052
90253-11001
90301-19006
90561-10004
91621-60828
91651-40820
92122-60820
