RN55L-MRHA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,6#,RN5#,6#,7#

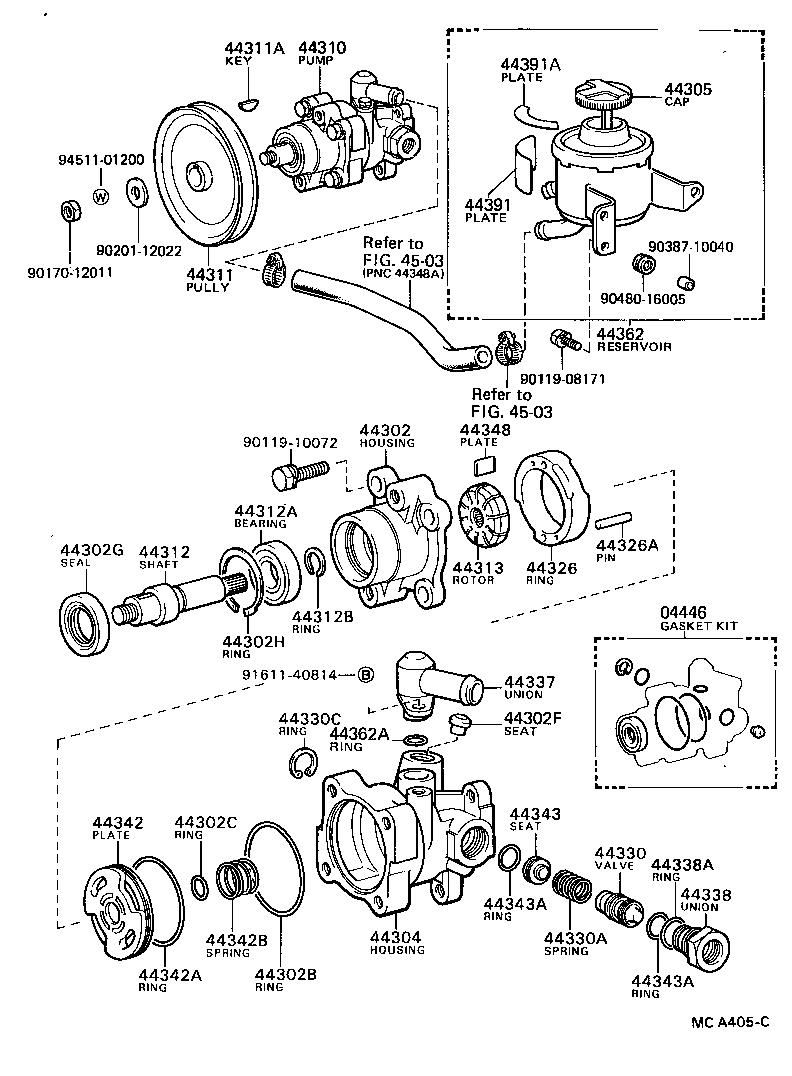

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302F 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44337 44338 44338A 44342 44342A 44342B 44343 44343A 44343A 44348 44362 44362A 44391 44391A 4503 4503 9011908171 9011910072 9017012011 9020112022 9038710040 9048016005 9161140814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-35010

RN55..3QT

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12010

RN55,75..WT;RN55..10T,3QT

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

RN55,75..WT;RN55..10T,3QT

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

RN55,75..WT;RN55..10T,3QT

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

RN55..10T,3QT

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

RN55,75..WT;RN55..10T,3QT

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-20030

RN55..3QT

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

RN55,75..WT;RN55..10T,3QT

 1
44310 - PUMP ASSY, VANE
44320-35030

RN55..3QT

 1
44311 - PULLEY, VANE PUMP
44311-20010

RN55,75..WT;RN55..10T,3QT

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

RN55,75..WT;RN55..10T,3QT

 1
44312 - SHAFT, VANE PUMP
44312-12010

RN55,75..WT;RN55..10T,3QT

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

RN55,75..WT;RN55..10T,3QT

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

RN55,75..WT;RN55..10T,3QT

 1
44313 - ROTOR, VANE PUMP
44313-12010

RN55,75..WT;RN55..10T,3QT

NO MARK

 1
44313-12030

RN55,75..WT;RN55..10T,3QT

MARK 2,MARK 2

 1
44313-12050

RN55,75..WT;RN55..10T,3QT

MARK 4,MARK 4

 1
44313-12020

RN55,75..WT;RN55..10T,3QT

MARK 1,MARK 1

 1
44313-12040

RN55,75..WT;RN55..10T,3QT

MARK 3,MARK 3

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12040

RN55,75..WT;RN55..10T,3QT

MARK 3,MARK 3

 1
44325-12020

RN55,75..WT;RN55..10T,3QT

MARK 1,MARK 1

 1
44325-12030

RN55,75..WT;RN55..10T,3QT

MARK 2,MARK 2

 1
44325-12010

RN55,75..WT;RN55..10T,3QT

NO MARK

 1
44325-12050

RN55,75..WT;RN55..10T,3QT

MARK 4,MARK 4

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

RN55,75..WT;RN55..10T,3QT

L=25,OD=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-12150

RN55,75..WT;RN55..10T,3QT

MARK C,MARK C

 1
44330-12160

RN55,75..WT;RN55..10T,3QT

MARK D,MARK D

 1
44330-12130

RN55,75..WT;RN55..10T,3QT

MARK A,MARK A

 1
44330-12140

RN55,75..WT;RN55..10T,3QT

MARK B,MARK B

 1
44330-12180

RN55,75..WT;RN55..10T,3QT

MARK F,MARK F

 1
44330-12170

RN55,75..WT;RN55..10T,3QT

MARK E,MARK E

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

RN55,75..WT;RN55..10T,3QT

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

RN55,75..WT;RN55..10T,3QT

 1
44337 - UNION, POWER STEERING SUCTION PORT
90404-16016

RN55,75..WT;RN55..10T,3QT

 1
44338 - UNION, PRESSURE PORT
44308-14040

RN55..3QT

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

RN55,75..WT;RN55..10T,3QT

OD=25.5,ID=22.5

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

RN55,75..WT;RN55..10T,3QT

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

RN55,75..WT;RN55..10T,3QT

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

RN55,75..WT;RN55..10T,3QT

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

RN55,75..WT;RN55..10T,3QT

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

RN55,75..WT;RN55..10T,3QT

 2
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

RN55,75..WT;RN55..10T,3QT

 2
44348 - PLATE, VANE PUMP
44345-12030

RN55,75..WT;RN55..10T,3QT

L=14.993,ROTOR MARK 2

 10
44345-12040

RN55,75..WT;RN55..10T,3QT

L=14.991,ROTOR MARK 3

 10
44345-12010

RN55,75..WT;RN55..10T,3QT

L=14.997,ROTOR NO MARK

 10
44345-12050

RN55,75..WT;RN55..10T,3QT

L=14.989,ROTOR MARK 4

 10
44345-12020

RN55,75..WT;RN55..10T,3QT

L=14.995,ROTOR MARK 1

 10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44360-35050

RN55..10T,3QT

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
96711-19013

RN55,75..WT;RN55..10T,3QT

 1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-30020

RN55,75..WT;RN55..10T,3QT

 1
44391A - PLATE, OIL RESERVOIR CAUTION
44391-20010

RN55,75..WT;RN55..10T,3QT

 1
Common parts
90119-08171
90119-10072
90170-12011
90201-12022
90387-10040
90480-16005
91611-40814
94511-01200
Linked diagrams
4503
