RN55L-MRHA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

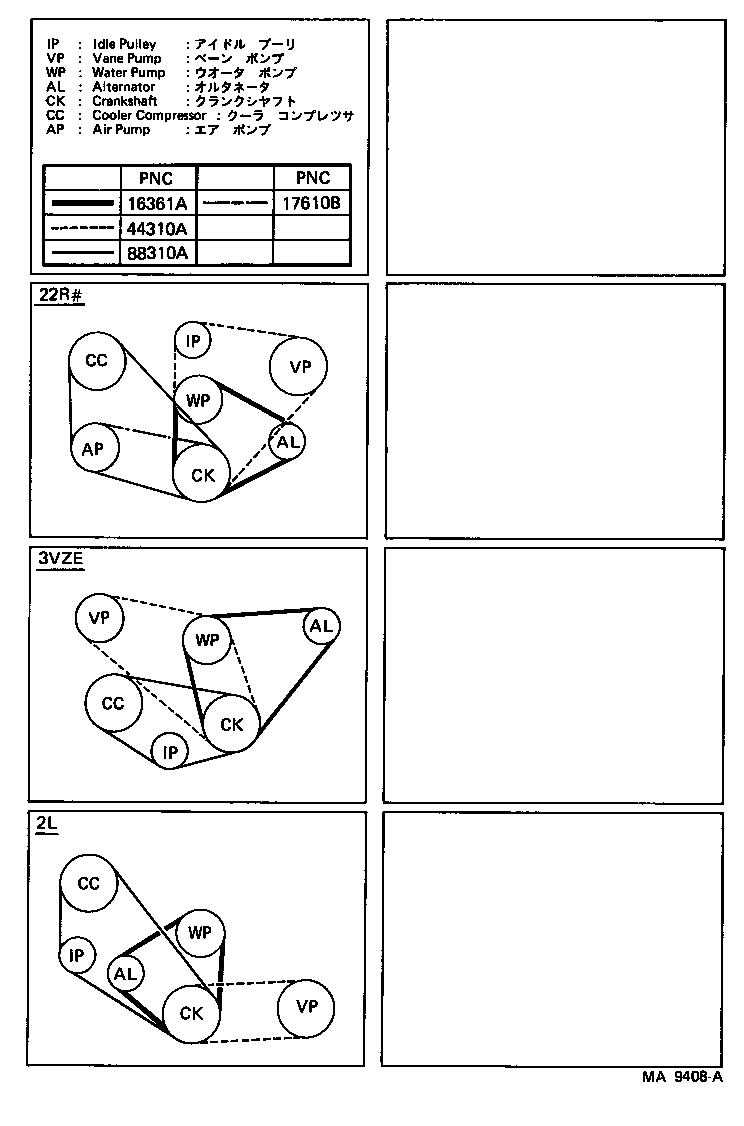

Click highlighted areas on diagram

diagram 16361A 17610B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-10880

22R#..RN5#,6#

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
44310A - BELT, V(FOR VANE PUMP)
99332-11135

RN55..3QT

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10890

RN5#,6#..T1

L=890,49 STATES

 1
99332-11110

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
