RN55L-MDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

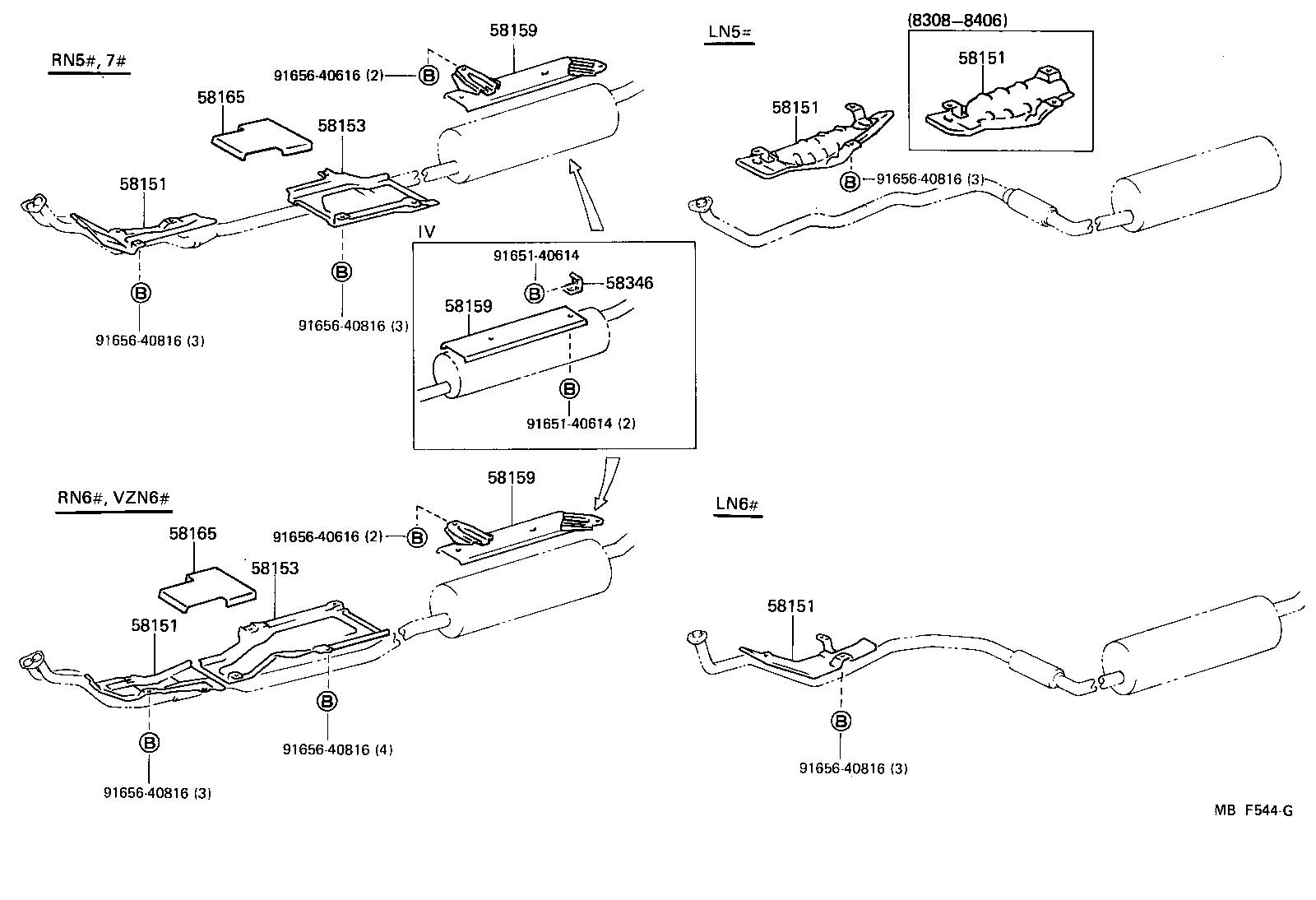

Click highlighted areas on diagram

diagram 58151 58151 58151 58151 58151 58153 58153 58159 58159 58159 58165 58165 58346 9165140614 9165140614 9165640616 9165640616 9165640816 9165640816 9165640816 9165640816 9165640816 9165640816
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89105

RN5#,7#..4F,4FC,5F

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89105

RN5#,7#..4F,4FC,5F

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89105

RN5#,7#..4F,4FC,5F

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89105

RN5#,7#..4F,4FC,5F

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89105

RN5#,7#..4F,4FC,5F

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89103

RN5#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89103

RN5#

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58043-89101

RN5#,6#,70,VZN6#..T1..CBU

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58043-89101

RN5#,6#,70,VZN6#..T1..CBU

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58043-89101

RN5#,6#,70,VZN6#..T1..CBU

 1
Common parts
91651-40614
91656-40616
91656-40816
