RN55L-MDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)LN5#,RN5#,70..HLF

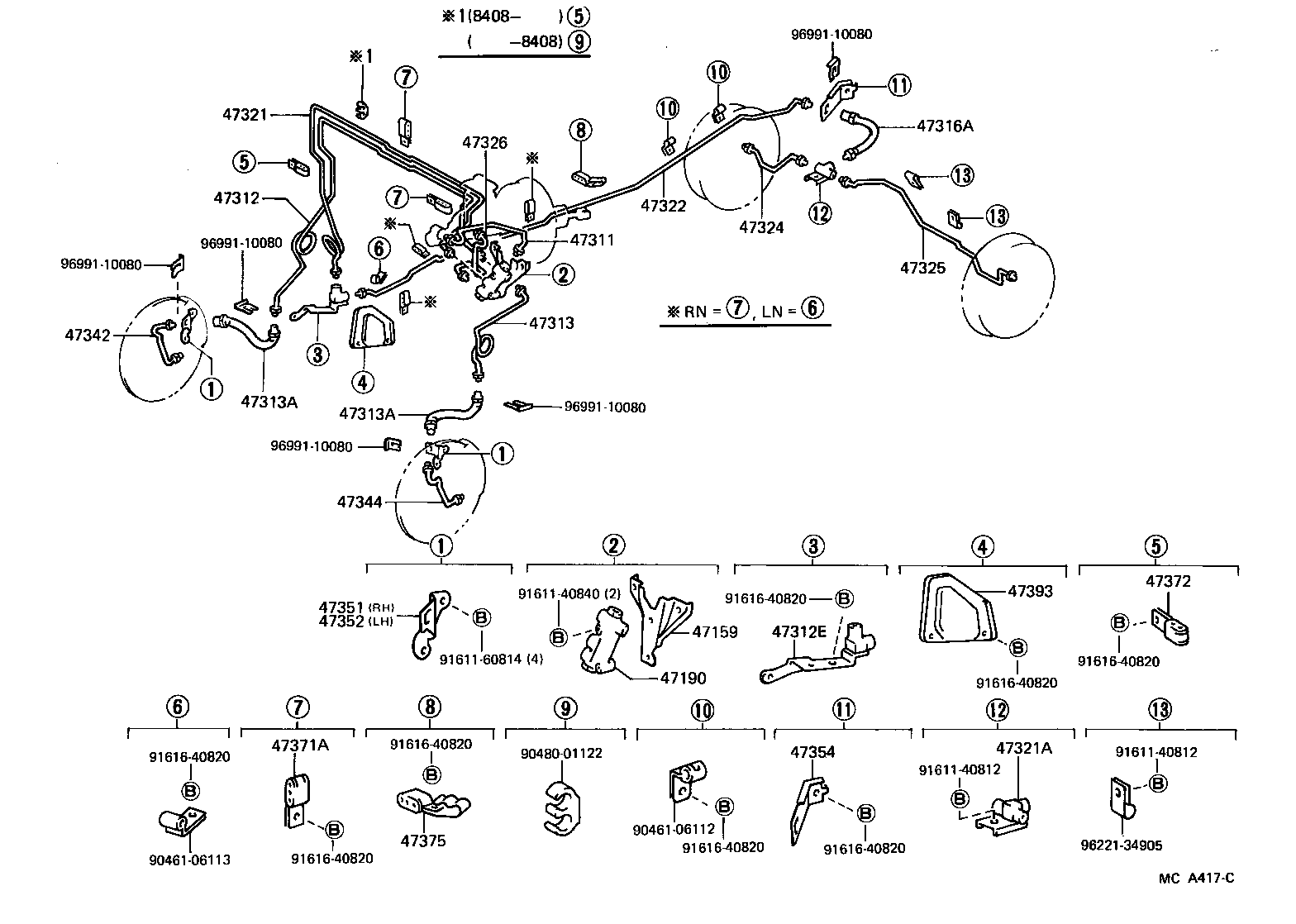

Click highlighted areas on diagram

diagram 47159 47190 47311 47312 47312E 47313 47313A 47313A 47316A 47321 47321A 47322 47324 47325 47326 47342 47344 47351 47352 47354 47371A 47372 47375 47393 9046106112 9046106113 9048001122 9161140812 9161140812 9161140840 9161160814 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-35030

LN5#,RN5#,70..HLF

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-35020

LN5#,RN5#..HLF

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-35380

LN5#,RN5#..HLF

 1
47311-35410

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35360

RN5#..HLF..CBR

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,RN5#,70..HLF

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02447

LN5#,RN5#,7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02447

LN5#,RN5#,7#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LN5#,RN5#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35180

RN5#..HLF..(CBR,EFI)

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10152

LN5#,RN5#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35200

LN56,RN55..HLF

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35070

LN5#,RN5#..HLF

 1
47324-35070

LN5#,RN5#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35080

LN5#,RN5#

 1
47325-35080

LN5#,RN5#..HLF

 1
47326 - TUBE, REAR BRAKE, NO.6
47321-35080

LN5#,RN5#..HLF

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35090

LN5#,RN5#,7#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35090

LN5#,RN5#,7#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35130

LN5#,RN5#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35110

LN5#,RN5#

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35070

LN5#,RN5#,70..HLF

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,6#,RN5#,6#,7#,VZN6#

DASH PANEL SIDE

 2
47371-35030

LN6#,RN5#,6#,70..CBR,DSL,TD

SIDE RAIL SIDE

 3
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35010

LN5#,6#,RN5#,6#,7#,VZN6#

 5
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35010

RN5#,70..CBR

 1
Common parts
90461-06112
90461-06113
90480-01122
91611-40812
91611-40840
91611-60814
91616-40820
96221-34905
96991-10080

(8308-8608)10T,3QT,HVY ; (8608- )LN56,RN5#,7#

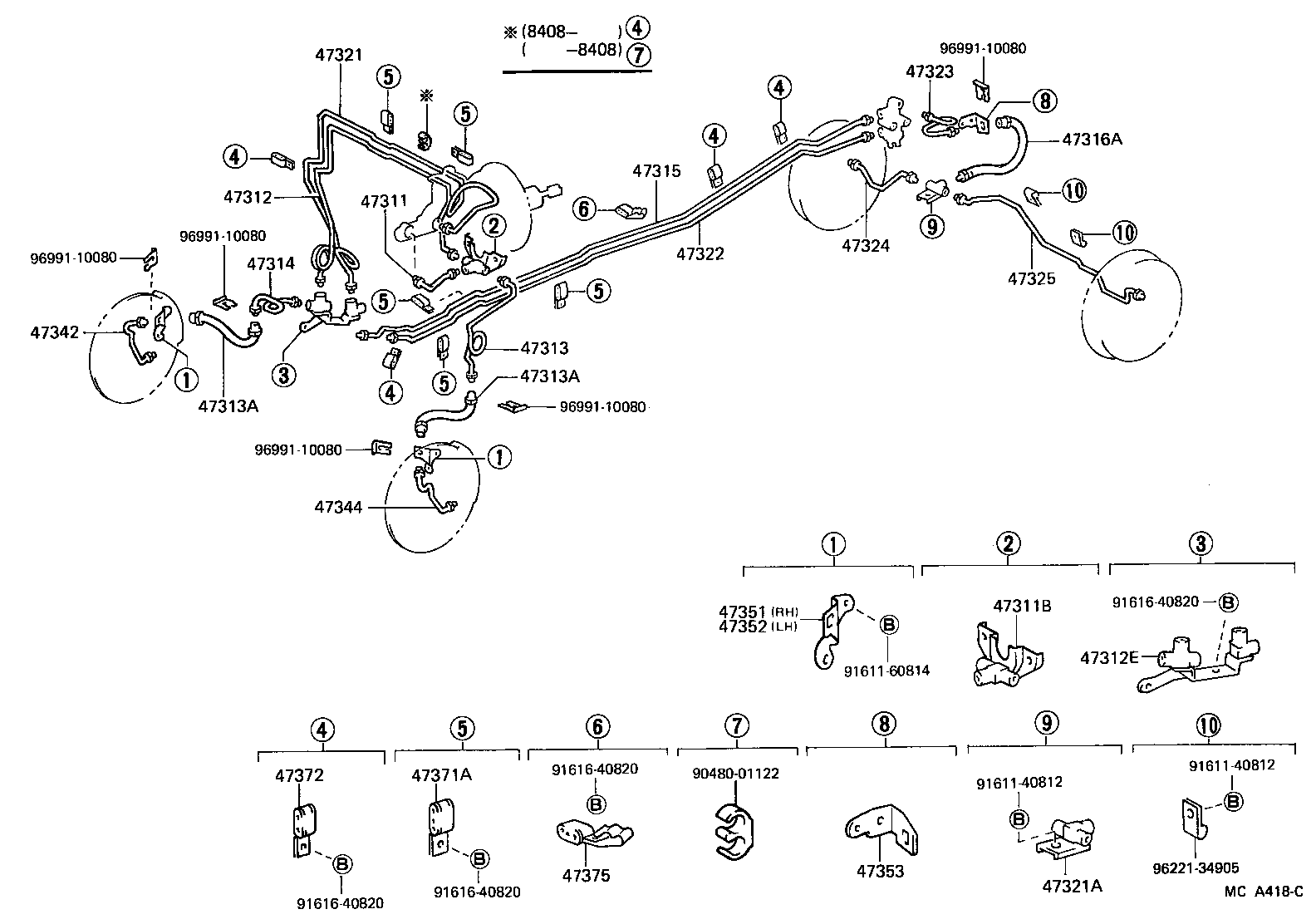

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321A 47322 47323 47324 47325 47342 47344 47351 47352 47353 47371A 47372 47375 9048001122 9161140812 9161140812 9161160814 9161640820 9161640820 9161640820 9161640820 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35380

LN5#,RN5#..HLF

 1
47311-35410

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35360

RN5#..HLF..CBR

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,RN5#,70..HLF

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35260

LN5#,RN5#..(DLX,SR5,STD)..HLF

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02447

LN5#,RN5#,7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02447

LN5#,RN5#,7#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LN5#,RN5#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35180

RN5#..HLF..(CBR,EFI)

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10152

LN5#,RN5#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35200

LN56,RN55..HLF

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35070

LN5#,RN5#..HLF

 1
47324-35070

LN5#,RN5#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35080

LN5#,RN5#

 1
47325-35080

LN5#,RN5#..HLF

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35090

LN5#,RN5#,7#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35090

LN5#,RN5#,7#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35130

LN5#,RN5#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35110

LN5#,RN5#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,6#,RN5#,6#,7#,VZN6#

DASH PANEL SIDE

 2
47371-35030

LN6#,RN5#,6#,70..CBR,DSL,TD

SIDE RAIL SIDE

 3
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35010

LN5#,6#,RN5#,6#,7#,VZN6#

 5
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35010

RN5#,70..CBR

 1
Common parts
90480-01122
91611-40812
91611-60814
91616-40820
96221-34905
96991-10080

(8308-8608)LN6#,RN6#,75 ; (8308-8608)RN55..10T,3QT,HVY ; (8608- )

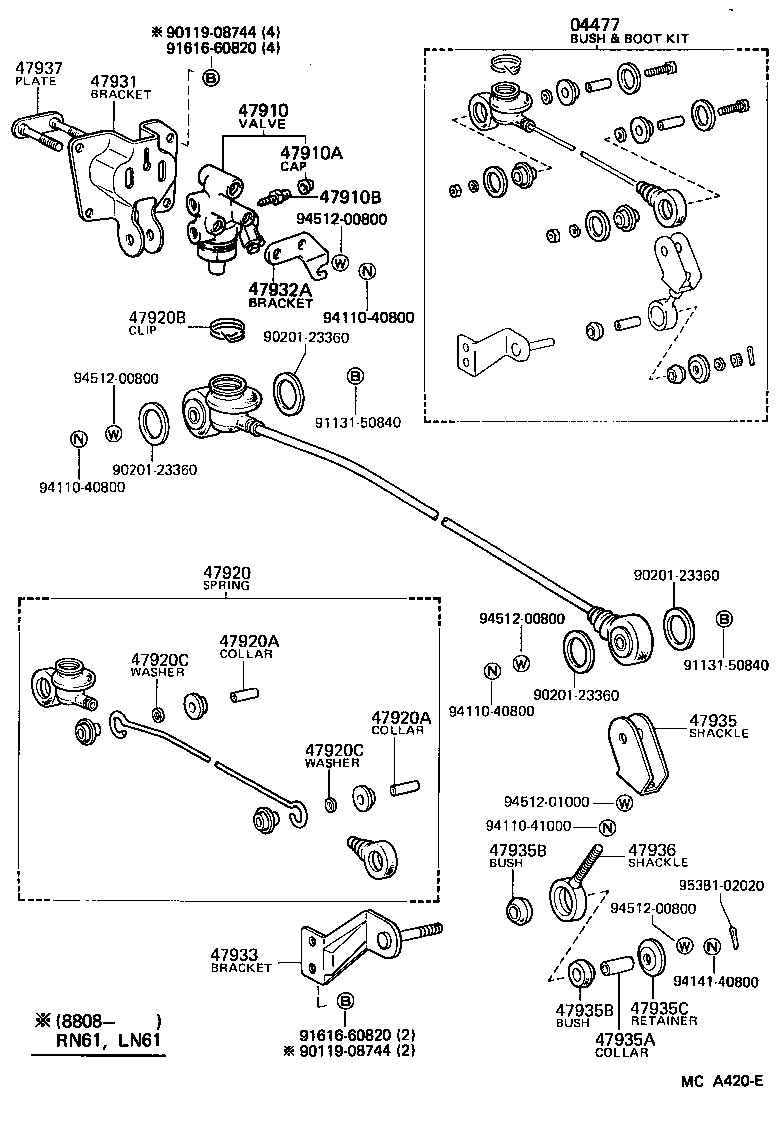

Click highlighted areas on diagram

diagram 04477 47910 47910A 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47932A 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9011908744 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161660820 9161660820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
90119-08744
90201-23360
91131-50840
91616-60820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020
