RN55L-MDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408) ; (8408- )RN55..HLF..CBR,EFI ; (8408- )LN5#,6#,RN50,6#,70,VZN6#..

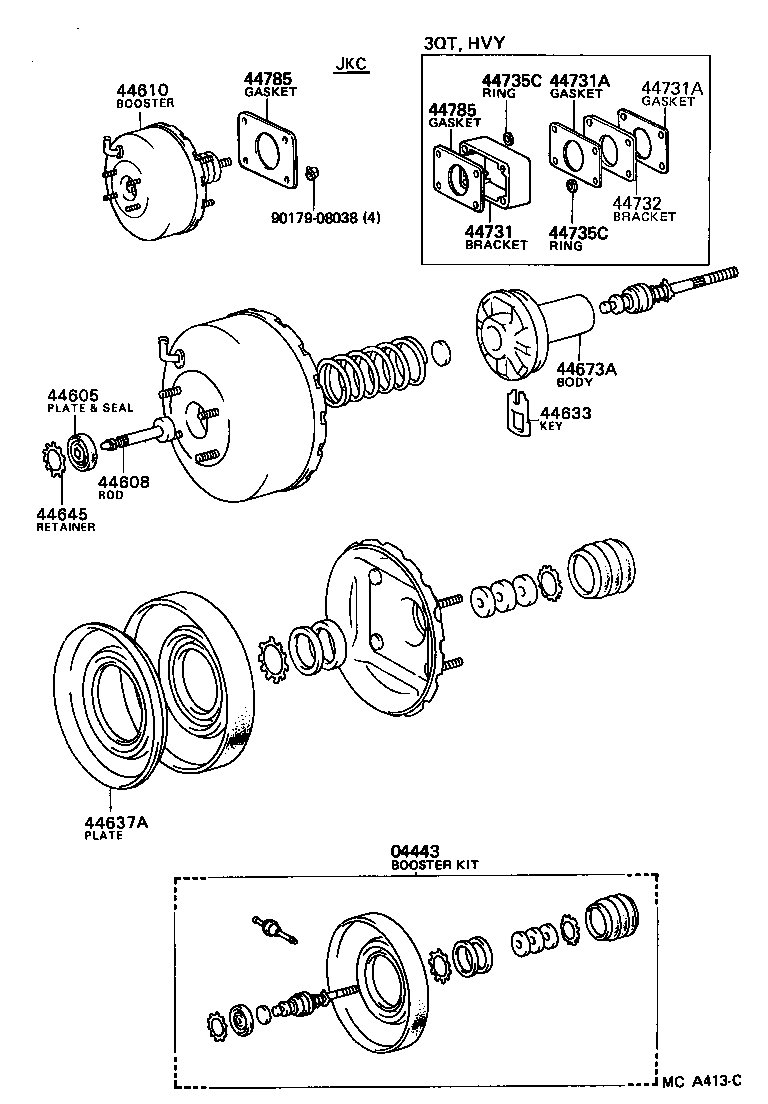

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44731 44731A 44731A 44732 44735C 44735C 44785 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-35340

RN50,6#;RN55..HLF..(CBR,EFI)

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LN5#,65,RN5#,6#

 1
44605-22021

RN55..HLF;LN5#,65,RN50,6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

RN55..HLF..(CBR,EFI);LN5#,6#,RN50,6#,70..DLX,SR5,STD

 1
44610 - BOOSTER ASSY, BRAKE
44610-35580

LN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)

 1
44610-35520

RN50,6#;RN55..HLF

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LN5#,65,RN5#,6#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32020

RN55..HLF;LN5#,65,RN50,6#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

RN55..HLF;LN5#,65,RN50,6#

 1
44645-22020

LN5#,65,RN5#,6#

 1
44673A - BODY, BOOSTER VALVE
44673-16060

LN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN5#,6#,RN5#,6#,7#,VZN6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90179-08038
