RN55L-MDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

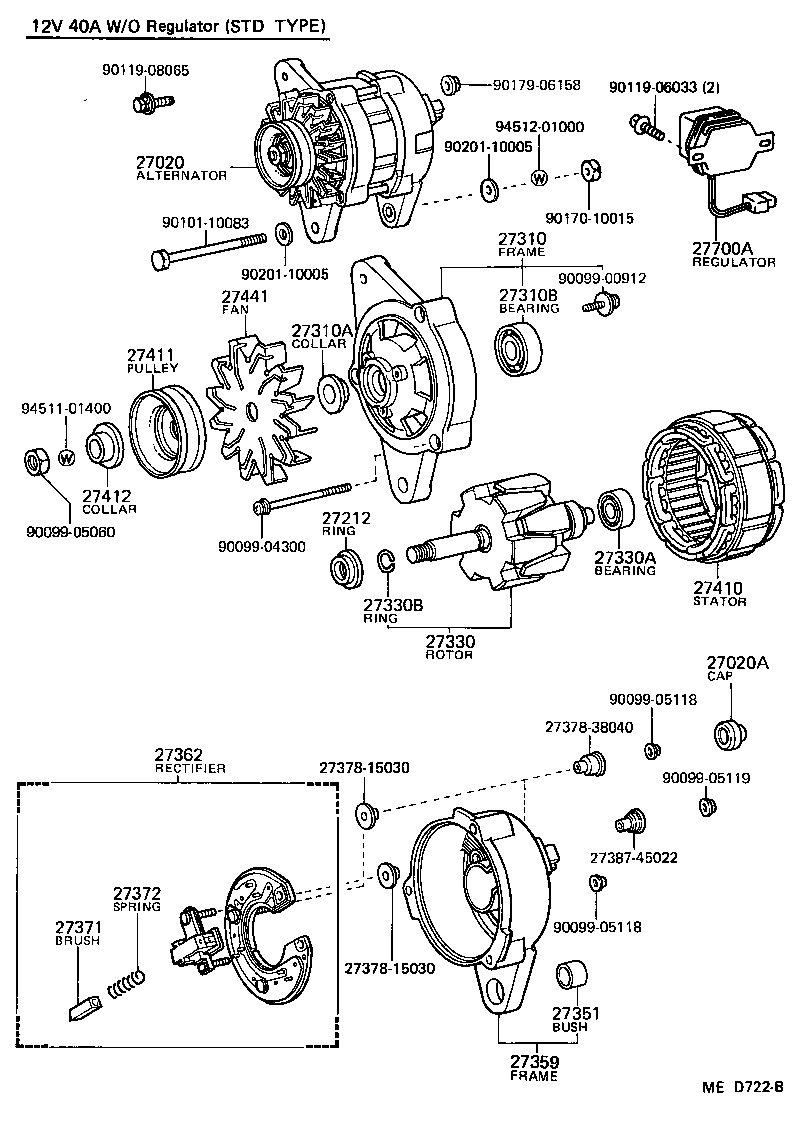

(8308-8408)22R

Click highlighted areas on diagram

diagram 27020 27020A 27212 27310 27310A 27310B 27330 27330A 27330B 27351 27359 27362 27371 27372 2737815030 2737815030 2737838040 2738745022 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905119 9010110083 9011906033 9011908065 9017010015 9017906158 9020110005 9020110005 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35020

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R#..RN5#,6#

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R#..RN5#,6#

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-35051

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R#..RN5#,6#

12V 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

22R#..RN5#,6#

12V 55A,60A

 2
27372-31011

22R#..RN5#,6#

12V 40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27411 - PULLEY, ALTERNATOR
27411-31042

22R#..RN5#,6#

12V 40A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

22R#..RN5#,6#

12V 40A

 1
27441 - FAN, ALTERNATOR
27441-45110

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38113

22R#..RN5#,6#

IC TYPE

 1
Common parts
27378-15030
27378-38040
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-06033
90119-08065
90170-10015
90179-06158
90201-10005
94511-01400
94512-01000

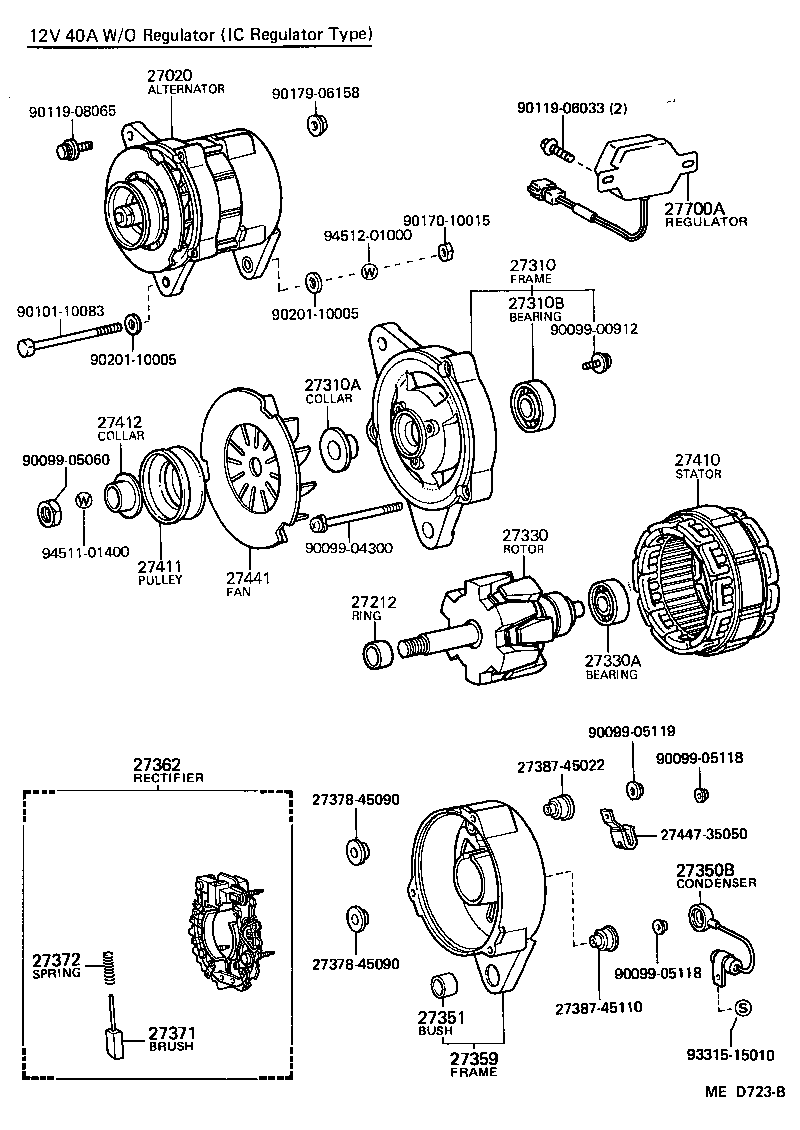

(8308-8408)22R#

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 2744735050 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905119 9010110083 9011906033 9011908065 9017010015 9017906158 9020110005 9020110005 9331515010 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35020

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R#..RN5#,6#

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R#..RN5#,6#

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-35051

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R#..RN5#,6#

12V 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

22R#..RN5#,6#

12V 55A,60A

 2
27372-31011

22R#..RN5#,6#

12V 40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27411 - PULLEY, ALTERNATOR
27411-31042

22R#..RN5#,6#

12V 40A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

22R#..RN5#,6#

12V 40A

 1
27441 - FAN, ALTERNATOR
27441-45110

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38113

22R#..RN5#,6#

IC TYPE

 1
Common parts
27378-45090
27387-45022
27387-45110
27447-35050
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-06033
90119-08065
90170-10015
90179-06158
90201-10005
93315-15010
94511-01400
94512-01000

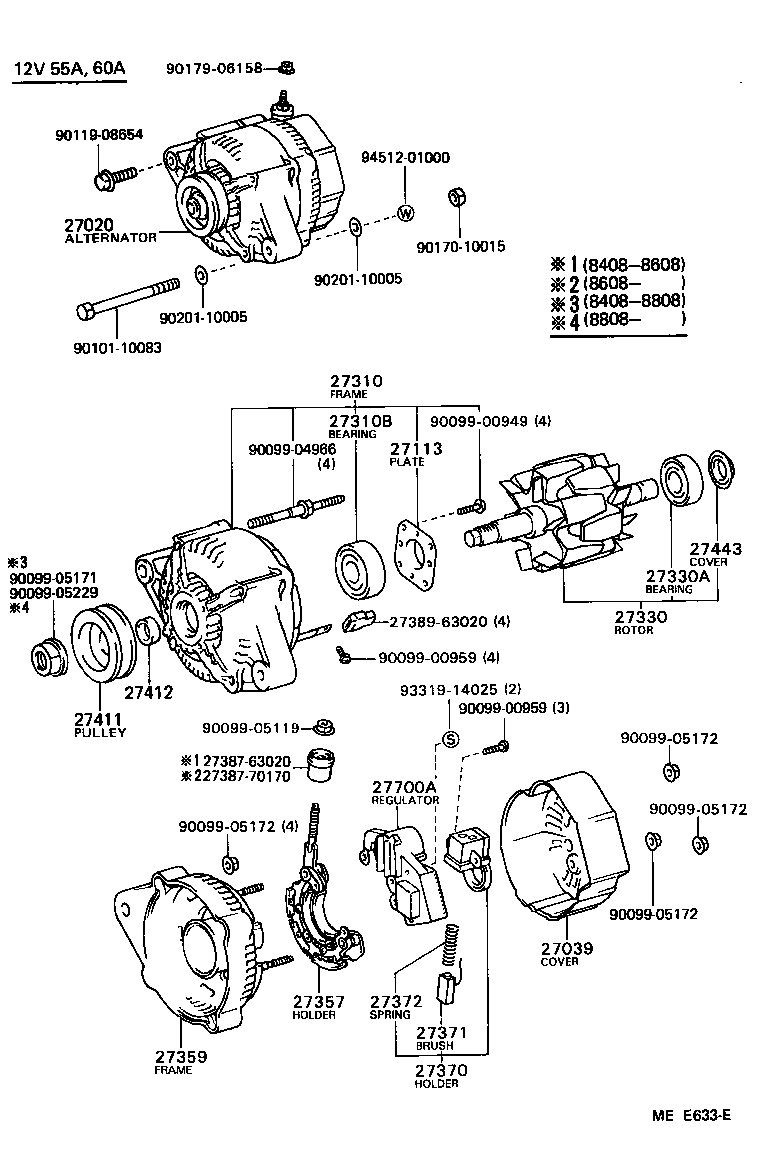

(8408- )22R#

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27412 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9009905229 9010110083 9011908654 9017010015 9017906158 9020110005 9020110005 9331914025 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27039 - COVER, ALTERNATOR REAR END
27039-63021

22R#..RN5#,6#

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35020

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-35050

22R#..RN5#,6#

12V 40A,W/O REGULATOR-IC TYPE

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R#..RN5#,6#

12V 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

22R#..RN5#,6#

12V 55A,60A

 2
27372-31011

22R#..RN5#,6#

12V 40A

 2
27411 - PULLEY, ALTERNATOR
27411-31042

22R#..RN5#,6#

12V 40A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

22R#..RN5#,6#

12V 40A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38113

22R#..RN5#,6#

IC TYPE

 1
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90099-05229
90101-10083
90119-08654
90170-10015
90179-06158
90201-10005
93319-14025
94512-01000
