RN55L-MDCA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

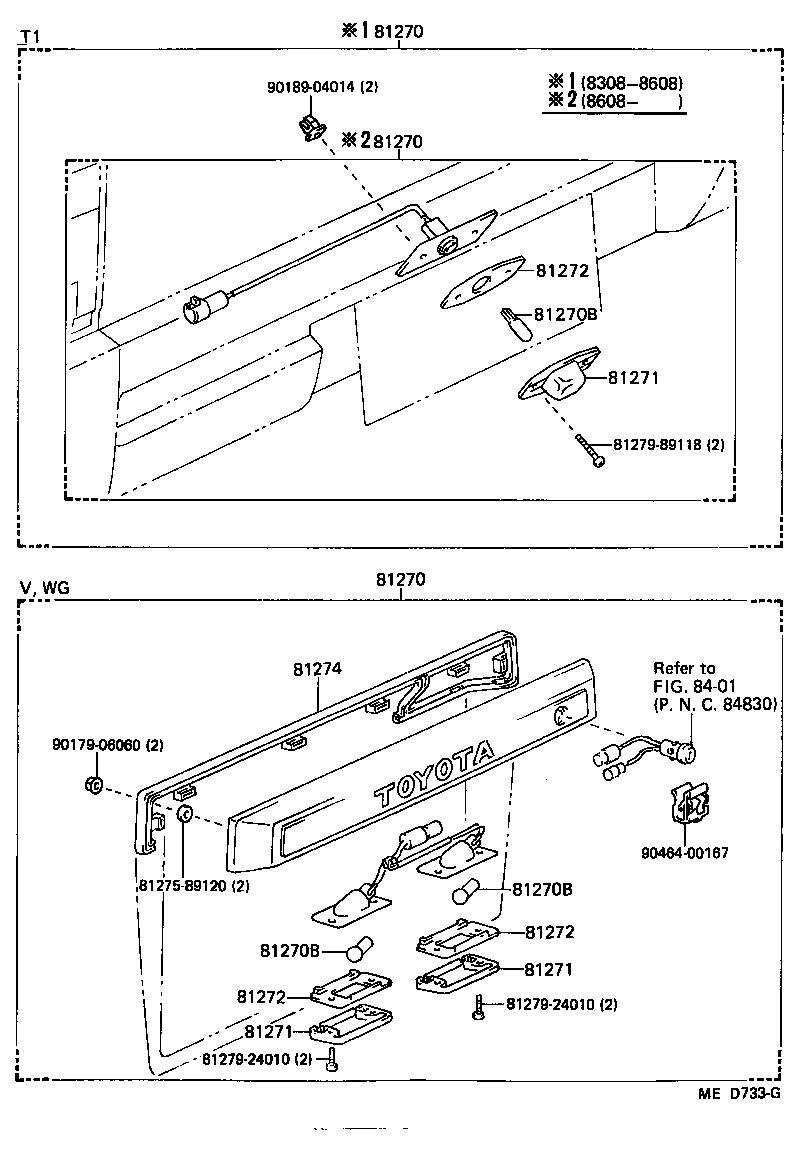

Click highlighted areas on diagram

diagram 81270 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81272 81274 8127589120 8127924010 8127924010 8127989118 8401 9017906060 9018904014 9046400167
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39455

LN5#,6#,RN5#,6#,7#..T1

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-39455

LN5#,6#,RN5#,6#,7#..T1

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-39455

LN5#,6#,RN5#,6#,7#..T1

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-11020

LN5#,6#,RN5#,6#,7#,VZN6#..T1

12V 3.8W,12V 3.8W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-11020

LN5#,6#,RN5#,6#,7#,VZN6#..T1

12V 3.8W,12V 3.8W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-11020

LN5#,6#,RN5#,6#,7#,VZN6#..T1

12V 3.8W,12V 3.8W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 2
Common parts
81275-89120
81279-24010
81279-89118
90179-06060
90189-04014
90464-00167
Linked diagrams
8401
