RN55L-MDCA (1984)
Toyota 4-Runner Truck
Production
Aug 1984
-
Aug 1985
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8708)22R ; (8708-8808)22R..W

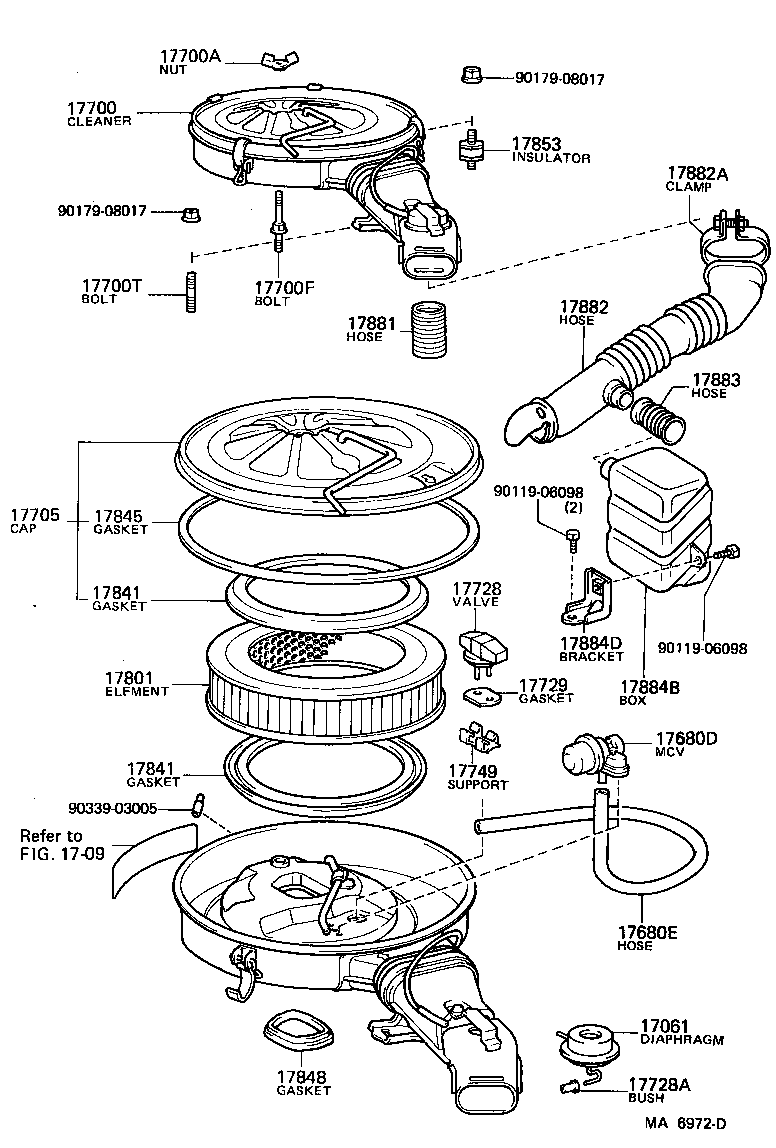

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
22R..RN5#,6#,70 |
1 | ||
| 17680D - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-35010 |
22R..RN5#,6#,70..MTM |
1 | ||
| 17680E - HOSE, AIR(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-35010 |
22R..RN5#,6#,70..MTM |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35140 |
22R..RN5#..MTM..(3QT,HLF) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
22R..RN5#,6#,70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
22R..RN5#,6#,70 |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
22R..RN5#,6#,70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35060 |
22R..RN5#,6#,70 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
22R..RN5#,6#,70 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
22R..RN5#,6#,70 |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
22R..RN5#,6#,70 |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
22R..RN5#,6#,70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41090 |
22R..RN5#,6#,70 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RN5#,6#,70 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RN5#,6#,70 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
22R..RN5#,6#,70 *G,L=1130 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
22R..RN5#,6#,70 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
22R..RN5#,6#,70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
22R..RN5#,6#,70 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-89103 |
22R..RN5#,6#,70 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01017 |
22R..RN5#,6#,70 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-89104 |
22R..RN5#,6#,70 |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 17884-89101 |
22R..RN5#,6#,70 |
1 | ||
| 17884D - BRACKET, AIR CLEANER BOX | ||||
| 17851-89101 |
22R..RN5#,6#,70 |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-08017 | ||||
| 90339-03005 | ||||
| Linked diagrams | ||||
| 1709 | ||||
