RN55L-MDA3 (1983)
Toyota 4-Runner Truck

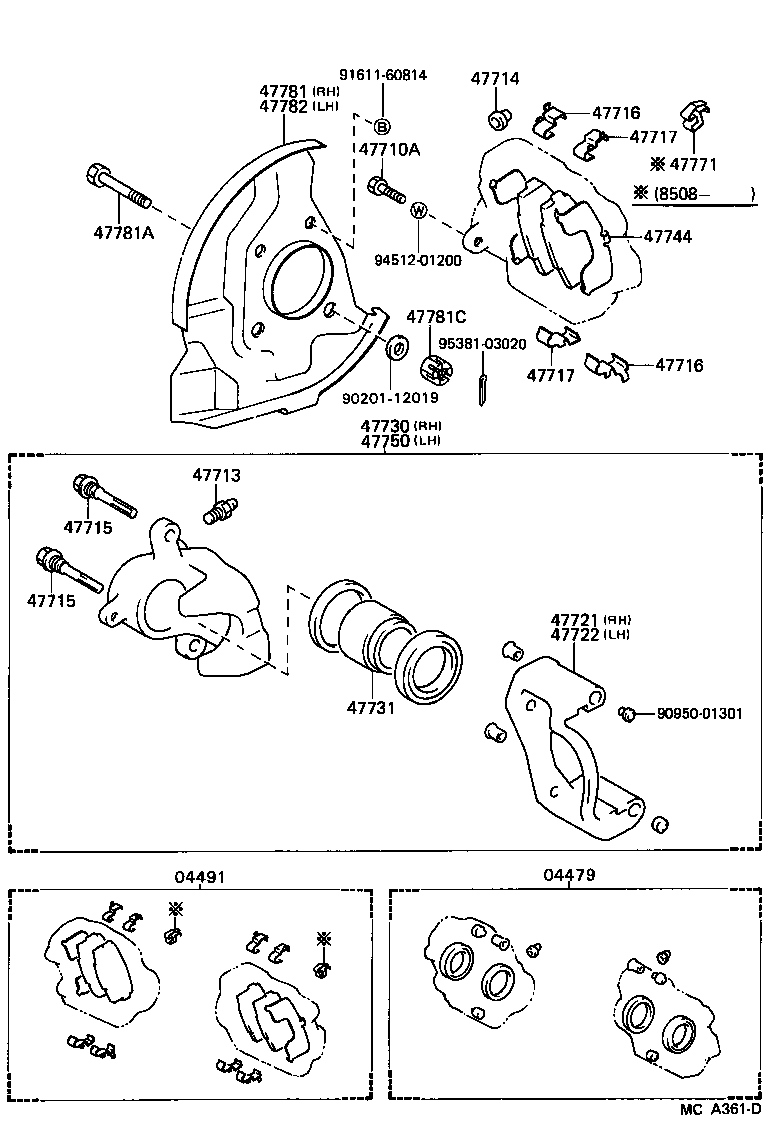

ILLUST NO. 1 OF 2(8308-8408)LN5#,RN5# ; (8408- )LN5#,RN5#,70..HLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-22010 |
LN5#,RN5# |
1 | ||
| 04479-22010 |
LN5#,RN5#,70..HLF |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22140 |
LN5#,RN5# |
1 | ||
| 04491-22140 |
LN5#,RN5#..HLF |
1 | ||
| 04491-35090 |
LN56,RN5#,70..HLF |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
LN5#,RN5#,7# *12-1.25PX31-20 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-35020 |
LN5#,RN5# |
2 | ||
| 47547-35020 |
LN5#,RN5#,70..HLF |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47715-22010 |
LN5#,RN5# |
4 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47715-22010 |
LN5#,RN5# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-22010 |
LN5#,RN5# |
4 | ||
| 47716-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-22010 |
LN5#,RN5# |
4 | ||
| 47716-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47717-22010 |
LN5#,RN5# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-22010 |
LN5#,RN5#,70..HLF |
4 | ||
| 47717-22010 |
LN5#,RN5# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-35010 |
LN5#,RN5#,70..HLF |
1 | ||
| 47721-35010 |
LN5#,RN5# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-35010 |
LN5#,RN5# |
1 | ||
| 47722-35010 |
LN5#,RN5#,70..HLF |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-35030 |
LN5#,RN5# |
1 | ||
| 47730-35030 |
LN5#,RN5#,70..HLF |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30050 |
LN5#,RN5# |
2 | ||
| 47731-30050 |
LN5#,RN5#,70..HLF |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-22040 |
LN5#,RN5#,70..HLF |
2 | ||
| 47744-22040 |
LN5#,RN5# |
2 | ||
| 47744-22081 |
RN5#,70..HLF |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-35030 |
LN5#,RN5#,70..HLF |
1 | ||
| 47750-35030 |
LN5#,RN5# |
1 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-22030 |
LN56,RN5#,70..HLF |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-35030 |
LN5#,RN5# |
1 | ||
| 47781-35030 |
LN5#,RN5#,70..HLF |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12006 |
LN5#,RN5#,7# |
4 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90171-12006 |
LN5#,RN5#,7# |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-35030 |
LN5#,RN5# |
1 | ||
| 47782-35030 |
LN5#,RN5#,70..HLF |
1 | ||
| Common parts | ||||
| 90201-12019 | ||||
| 90950-01301 | ||||
| 91611-60814 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-22140 |
LN5#,RN5# MARK ADVICS PS534 |
1 | ||
| 04465-22140 |
LN5#,RN5#..HLF MARK ADVICS PS534 |
1 | ||
| 04465-22140 |
LN56,RN5#,70..HLF MARK ADVICS PS534 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-22090 |
LN5#,RN5# |
1 | ||
| 04945-22070 |
LN56,RN5#,70..HLF |
1 | ||
| 04945-22090 |
LN5#,RN5#..HLF |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-22050 |
LN5#,RN5#..HLF |
1 | ||
| 04947-22050 |
LN5#,RN5# |
1 | ||
| 04947-22050 |
LN56,RN5#,70..HLF |
1 | ||
