RN55L-MDA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1987
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MTM

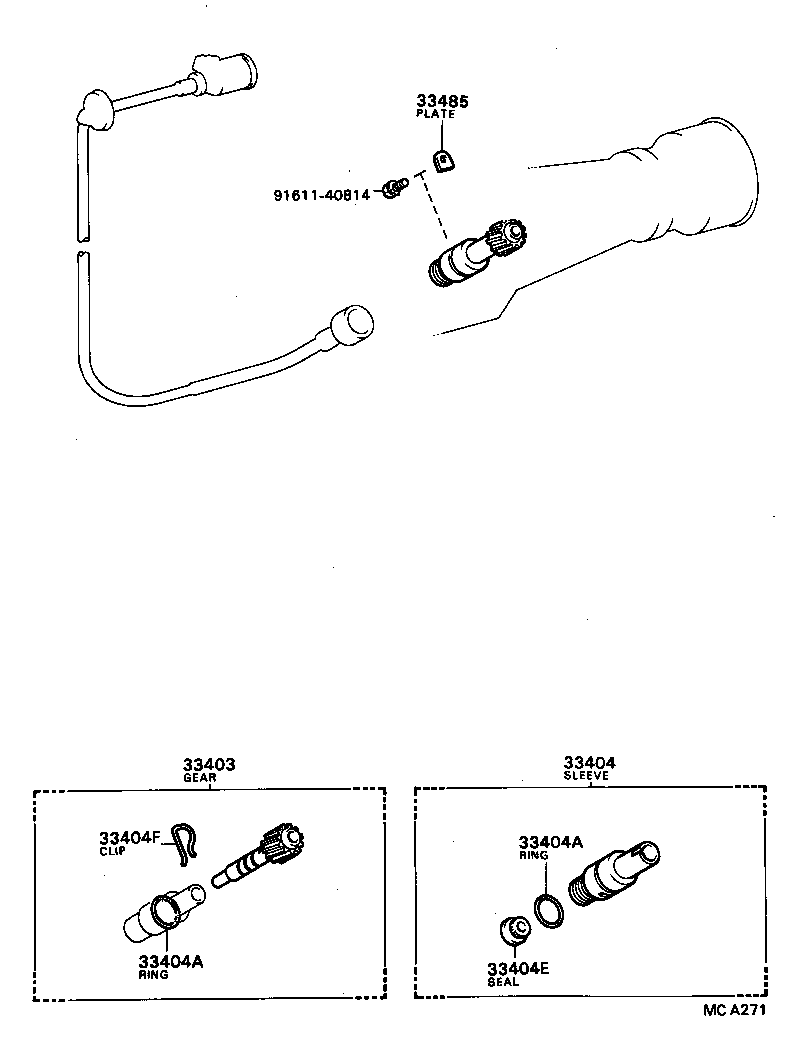

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404E 33404F 33485 9161140814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39135

RN6#;RN55..HLF..CBR

N=18,MARK 18:6,N=18

 1
33482-39135

RN5#..5F..CBR

N=18,MARK 18:6,N=18

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LN5#,65,RN5#,6#..MTM

 1
33404-35010

LN5#,RN6#..CBR,DSL,EFI;LN65,RN5#..5F..(CBR,TD)

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN56,RN6#..CBR,DSL,EFI;LN65,RN5#..5F..(CBR,TD)

 1
90301-18018

LN5#,65,RN5#,6#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LN56,RN6#..CBR,DSL,EFI;LN65,RN5#..5F..(CBR,TD)

 1
90301-18018

LN5#,65,RN5#,6#..MTM

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LN5#,6#,RN5#,6#,7#,VZN6#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LN5#,6#,RN5#,6#,7#,VZN6#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LN5#,6#,RN5#,6#,7#,VZN6#..MTM

 1
Common parts
91611-40814
